Poduct Description

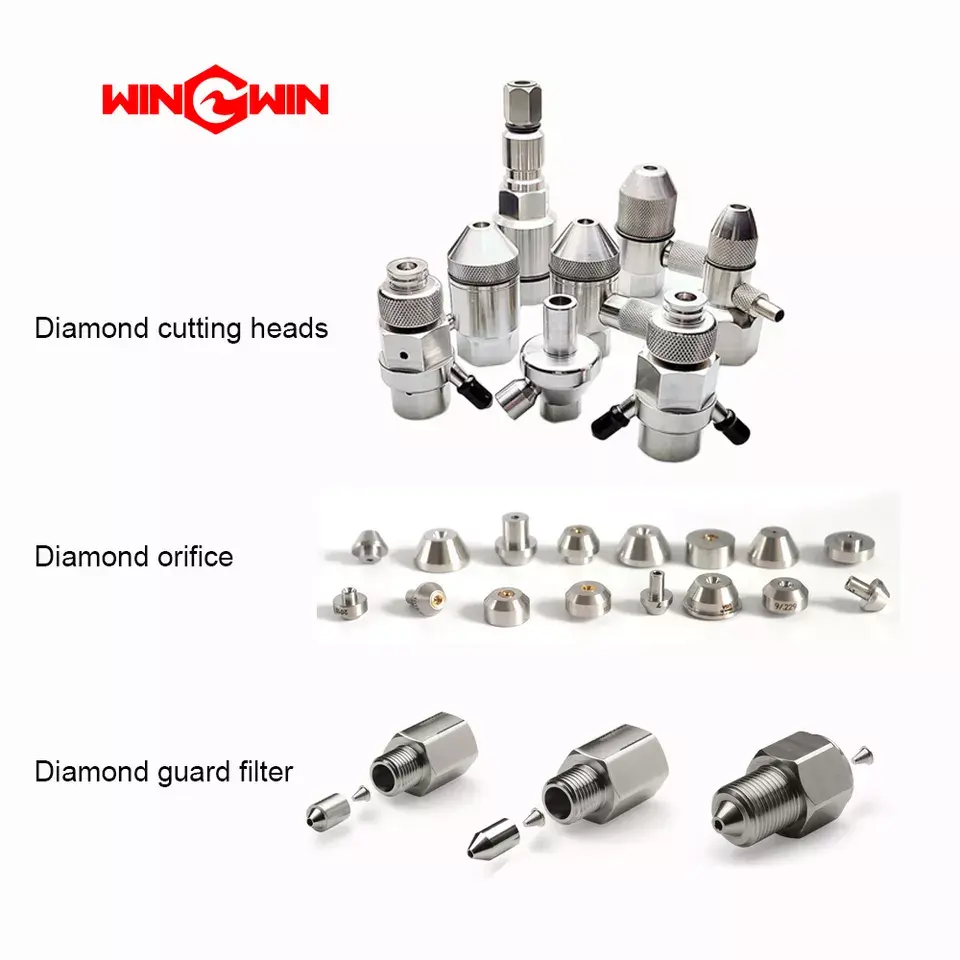

Waterjet spare parts，waterjet orifice

Item number: 05109087

Specification: .008″ or 0.20mm inner diameter

This hold with a sharp top corner that creates the coherent jet necessary for cutting.

Related Sapphire Orifice

0.007" / 0.17 mm 05109079* 0.008" / 0.20 mm 05109087*  0.009" / 0.23 mm 05109095*  0.010" / 0.25 mm 05109103* 0.011" / 0.28 mm 05109111*  0.012" / 0.30 mm 05109129*  0.013" / 0.33 mm 20412569*  0.014" / 0.35 mm 05109137*  0.016" / 0.40 mm 20448541*  0.018" / 0.46 mm 05114913*  0.019" / 0.48 mm 80086671*  0.020" / 0.51 mm 05114921

Waterjet nozzles come in various sizes and configurations, which are chosen based on the specific application and cutting requirements. The size of waterjet nozzles refers to the diameter of the orifice—the opening through which the high-pressure water or abrasive mixture exits the nozzle.

Typically, waterjet nozzles are available in sizes ranging from around 0.004 inches (0.1 mm) to larger diameters, such as 0.040 inches (1.016 mm) or more.

The choice of nozzle size depends on several factors:

Material Type and Thickness: Different materials and varying thicknesses require specific nozzle sizes to optimize cutting performance. Thicker materials might require larger orifices to accommodate higher flow rates.

Precision and Cutting Speed: Smaller nozzles are often used for precision cutting, intricate designs, or fine detailing. Larger nozzles might be used for faster cutting of thicker materials.

Abrasive Use: When abrasive material is added to the waterjet stream for abrasive waterjet cutting, nozzle sizes may differ to accommodate the flow of both water and abrasives effectively.

Pressure and Flow Rate: The nozzle size affects the flow rate of the water or abrasive mixture passing through it. Different nozzle sizes can handle varying pressure levels and flow rates.

Cutting Quality: Nozzle size influences the quality of the cut, including factors like edge finish, taper, and accuracy. Smaller nozzles often provide finer cuts with less taper, especially in thinner materials.

System Compatibility: Nozzle size should match the specifications and capabilities of the waterjet system, considering factors like pump pressure and nozzle compatibility.

Waterjet nozzles are interchangeable components that can be selected and changed based on the specific requirements of each cutting task. Choosing the right nozzle size is crucial to achieve the desired cutting results in terms of precision, speed, and quality for a particular material and thickness.
