Full closed Automotive interior Robot Waterjet Cutting Machine

Full closed Automotive interior Robot Waterjet Cutting Machine

Product Item:
Product Item:
Brand:Winwin
Robot Arm:ABB
Arm Number:2
Model:1600
Style: ceiling
Application:automotive interior
Pump Model:STREAMLINE SL-VI 50HP
Operator Required:1 set
Workpiece Payload:Double
Supporting Equipment:
Vacuum Adsorption System
Intensifier Pump
Cooling System
Water Purification System
  • Product Detail

Full closed Automotive interior Robot Waterjet Cutting Machine

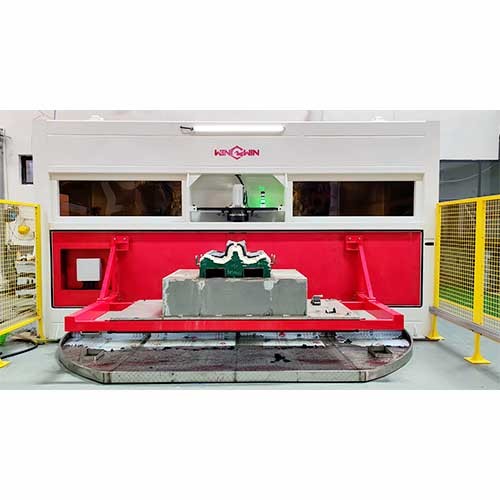

WINWIN waterjet customized this Full closed Automotive interior Robot Waterjet Cutting Machine for our customer.The customer requires the working volume to be less than 80 decibels, so we specially designed this fully enclosed water jet cutting equipment.

Configuration of Robot waterjet cutting system

1: Rotating Working Station

The rotating working station allows the robot to access and cut multiple workpieces in a single setup, without the need to manually reorient or reload the parts.

This reduces downtime and improves overall productivity, as the robot can continuously work on cutting different parts.

2: ABB 1600 robot arm

The ABB IRB 1600 has a maximum reach of 1.45 meters, allowing it to cover a sizable work envelope,has 6 axes of movement, providing a high degree of flexibility and dexterity in positioning and orienting the end-effector.

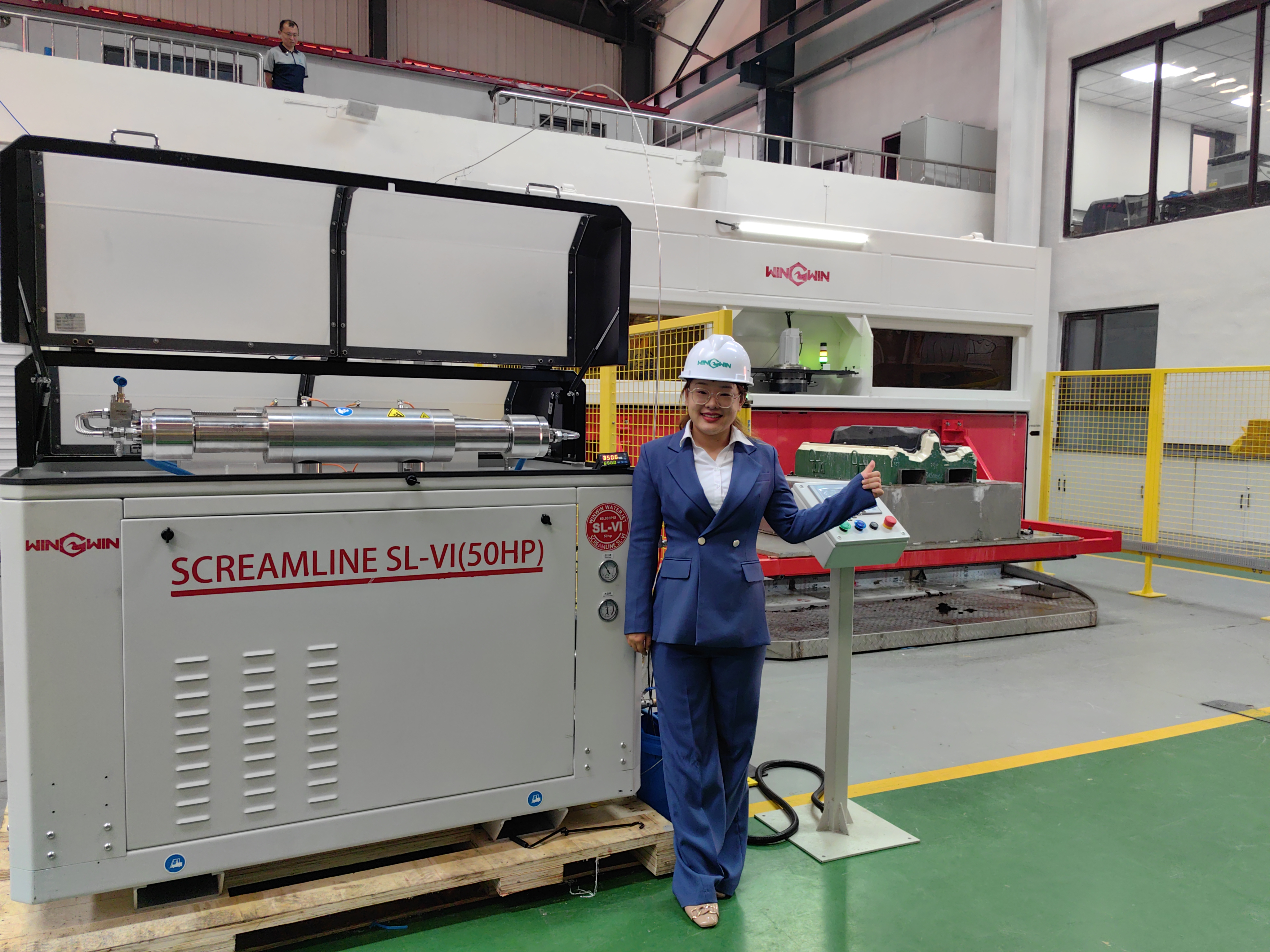

3: Equipped with WIN-WIN 50HP intensifier pump


WINWIN 50 HP waterjet pump adopt the latest technology and a very smart design,has 2 intensifiers to make sure 24 hours a day.

4: High-performance industrial chiller

5: The powerful vacuum adsorption system

Suitable for cutting light automotive interior accessories , such as car ceiling panels ,Roof console, side panels, option mat, seat , Floor carpet etc.

Only by using a professional adsorption system suitable for a robotic water jet cutting workstation, can the perfect adsorption effect be achieved.
Take away the garbage generated during the water jet cutting work and keep the water jet cutting workstation clean and tidy.

6: Water purification system

Demineralized water system, RO reverse osmosis demineralized water purifier, clean appearance, smooth tank.
304 stainless steel, precision filtration, strong and durable, treated water can effectively prevent orifice nozzles from being blocked.

7 Safety protection system


The trigger force of the safety carpet is 30kg, and the safety carpet cannot be curled and cut, and the requirements on the environment are very high.

8: General control system

Win-Win is committed to providing Full closed Automotive interior Robot Waterjet Cutting Machine,contact us for more details.
