Description
| Parts Number | Parts Name |
| 014817-1 | End cap assembly |
| 019684-1 | End Bell LShort |
| 011290-1 | LP Cylinder |
| 020080-1 | Piston |
| 007029-1 | Biscuit Spacer |
| A-0270-300 | Snap Ring |
| A-00251-18 | Rod T seal |
| 019683-1 | End Bell R Short |
| 020592-1 | Cylinder |
| 020595-1 | Filler Tube |
| 040015-1 | Seal Carrier Cartridge |
| 020071-1 | Check Valve Assembly |
| 018020-1 | Ceamic Plunger |
| 201446-219-1 | Poly pak Seal |
| A-11275 | Rod Seal |
| 010276-1 | Spacer |
| A-00315-1 | Hex Nut |
| 014597-1 | Hex Nut |
| 014840-1 | Hex Nut |
| 014589-1 | Tie Rod |
| 011291-1 | Tie Rod |
| Parts Number | Parts Name |
| 020592-1 | Cylinder |
| 012035-1 | Check Valve Kit |
| 020071-1 | Check Valve Assembly |
| 014817-1 | End cap assembly |
| 019684-1 | End Bell LShort |
| 011290-1 | Low Presure Cylinder |
| 019683-1 | End_ Bell R Short |
| Parts Number | Parts Name |
| 020071-1 | Check Valve Assembly |
| 012035-1 | Check Valve Kit |
| 010564-1 | Poppet Retainer |
| 014884-1 | Inlet Poppet |
| 004380-1 | Retaining Screw |
| 042101-1 | Outlet body adapter |
| 014388-1 | Poppet Seat |
| 042102-1 | Outlet Spring Seat |
| A-1606 | Compression Spring |
| 011309-1 | Outlet Poppet |
| Parts Number | Parts Name |
| 012931-1 | Attenuator outlet adapter |
| 019579-2 | Attenuator |
| 041336-1 | U-Shape Tube assy for 87K attenuator |
| 014168-1 | 87K 3/8″ cross LL |
| A-2838 | 87K 3/8″ Gland |
| 011275-1 | Sensor Assembly |
| B-8346-1 | Electric Shift |
| B-1702-1 | Firing Pin |
| Parts Number | Parts Name |
| 019309-1 | Bleed Down Valve assy |
| 015084-1 | Bleed-Down Valve Repair Kit |
| 042209-1 | Tube Assembly |
| 042921-1 | Bleed Down Coil RH |
| 011742-1 | Bleed Down Valve Body |
| 012761-1 | Bleed Down Valve Actuator Housing |

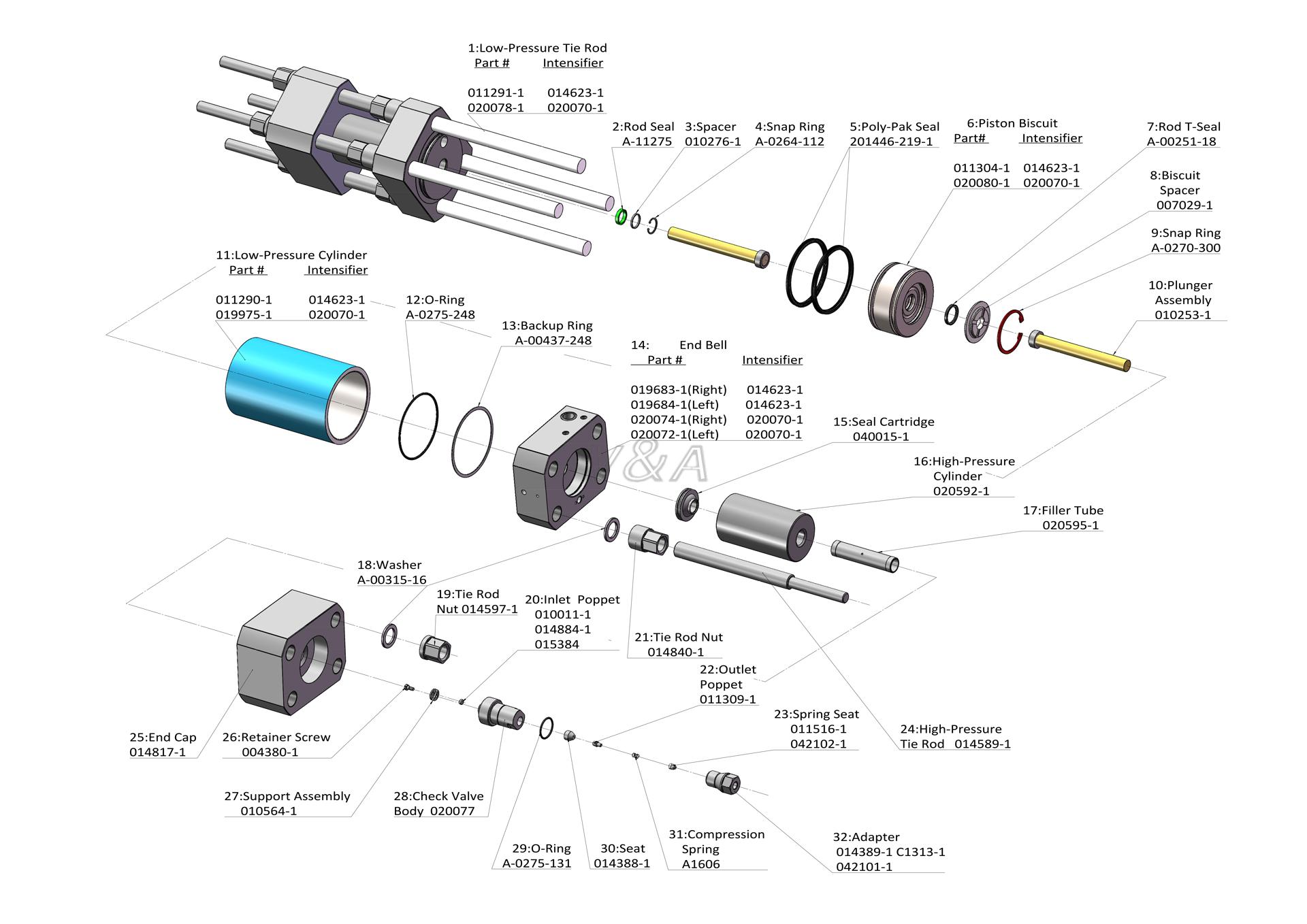

| Item | Part Number | Description | Item | Part Number | Description |
1 | 011291-1 014623-1 020078-1 020070-1 | Low pressure tie rod | 17 | 020595-1 | Filter tube |
| 2 | A-11275 | Rod seal | 18 | A-00315-16 | Washer |
| 3 | 010276-1 | Spacer | 19 | 014597-1 | Tie rod nut |
| 4 | A-0264-112 | Snap ring | 20 | 010011-1 014884-1 015384 | Inlet poppet |
| 5 | 201446-219-1 | Poly-pak seal | 21 | 014840-1 | Tie rod nut |
| 6 | 011304-1 014623-1 020080-1 020070-1 | Piston biscuit | 22 | 011309-1 | Outlet seat |
| 7 | A-00251-18 | Rod T-seal | 23 | 011516-1 042102-1 | Spring seat |
| 8 | 007029-1 | Biscuit spacer | 24 | 014589-1 | High pressure tie rod |
| 9 | A-0270-300 | Snap ring | 25 | 014817-1 | End cap |
| 10 | 010253-1 | Plunger assembly | 26 | 004380-1 | Retainer screw |
| 11 | 011290-1 014623-1 019975-1 020070-1 | Low pressure cylinder | 27 | 010564-1 | Support assembly |
| 12 | A-0275-248 | O-ring | 28 | 020077 | Check valve body |
| 13 | A-00437-248 | O-ring | 29 | A-0275-131 | O-Ring |
| 14 | 019683-1(right) 019684-1(left) 020074-1(right) 020072-1(left) | End bell | 30 | 014388-1 | Seat |
| 15 | 040015-1 | Seal cartridge | 31 | A1606 | Compression spring |
| 16 | 020592-1 | High pressure cylinder | 32 | 014389-1 C1313-1 042101-1 | Adapter |
If you wanna know the price of 87K Waterjet Pump Parts,please contact me for the parts list.
F-LOW 87K Waterjet Pump Parts
87K Waterjet Pump Parts,87K pressure rated intensifier compared to 60K pressure rated intensifier
1.cutting speed 30-50%
2.the use of garnet reduce 30-50%
3.parts costs reduction of 20-30%
4.can be directly on the 60,000 psi waterjet intensifier pump
