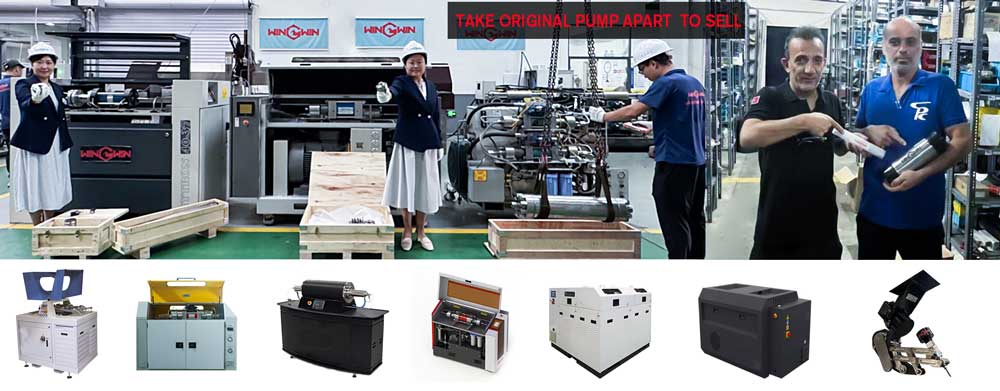

Disassemble the waterjet Intensifier pump of the water jet cutting machine and explore the composition and functions of the Intensifier pump.

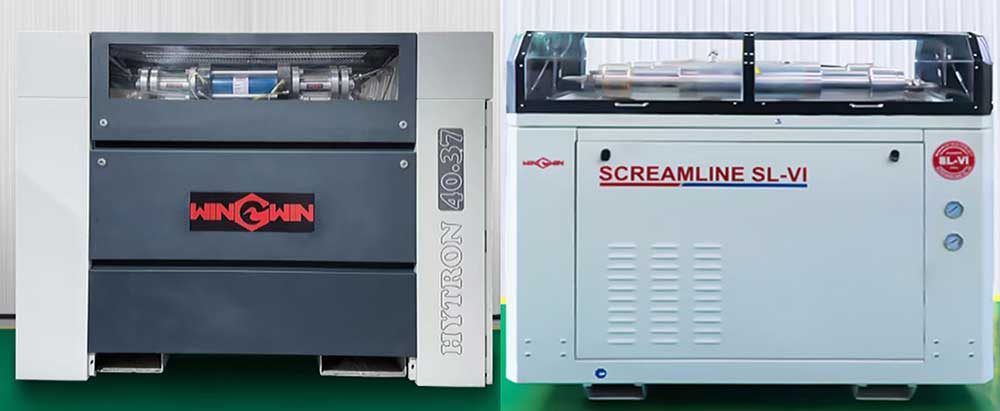

The waterjet Intensifier pump plays a crucial role as the primary power source in enabling the waterjet cutting machine to achieve precise cutting through the application of high-pressure water flow. Win-Win Waterjet will guide you through the disassembly of this key component, allowing you to clearly observe how it raises ordinary water pressure to an extremely high level. The core components of the Intensifier pump can be divided into four major parts.
1. Drive system. The drive system is the power source, often using an electric motor or hydraulic motor, which transmits energy to the pressure-increasing mechanism through a belt or coupling, like the "heart" of the waterjet Intensifier pump, continuously providing power output.
2. Pressure-increasing mechanism. The pressure boosting mechanism is the key to increasing the pressure of the waterjet Intensifier pump. The hydraulic booster composed of large and small pistons is the core, which uses Pascal's law. The small piston is pushed by low-pressure oil, and through the area difference, the large piston generates tens of times the pressure, boosting the water pressure to 200-600 MPa.
3. Water system. The waterway system is responsible for the stable delivery of water in the waterjet Intensifier pump, including the water inlet filter, check valve, and high-pressure water pipe. The filter prevents impurities from entering, the check valve avoids backflow of high-pressure water, and the high-pressure water pipe must withstand ultra-high pressure to ensure the water flow is accurately delivered to the cutting nozzle.
4. Control system. The control systemacts like the "brain"of the waterjet Intensifier pump, monitoring water pressure through pressure sensors and adjusting pressure in coordination with the relief valve. When pressure is abnormal, it promptly releases pressure to ensure the safe operation of the equipment.
The coordinated operation of all components makes the waterjet Intensifier pump the power core of the waterjet cutting machine, transforming ordinary water into an efficient cutting tool, playing a significant role in the processing of materials such as metals and stones.
