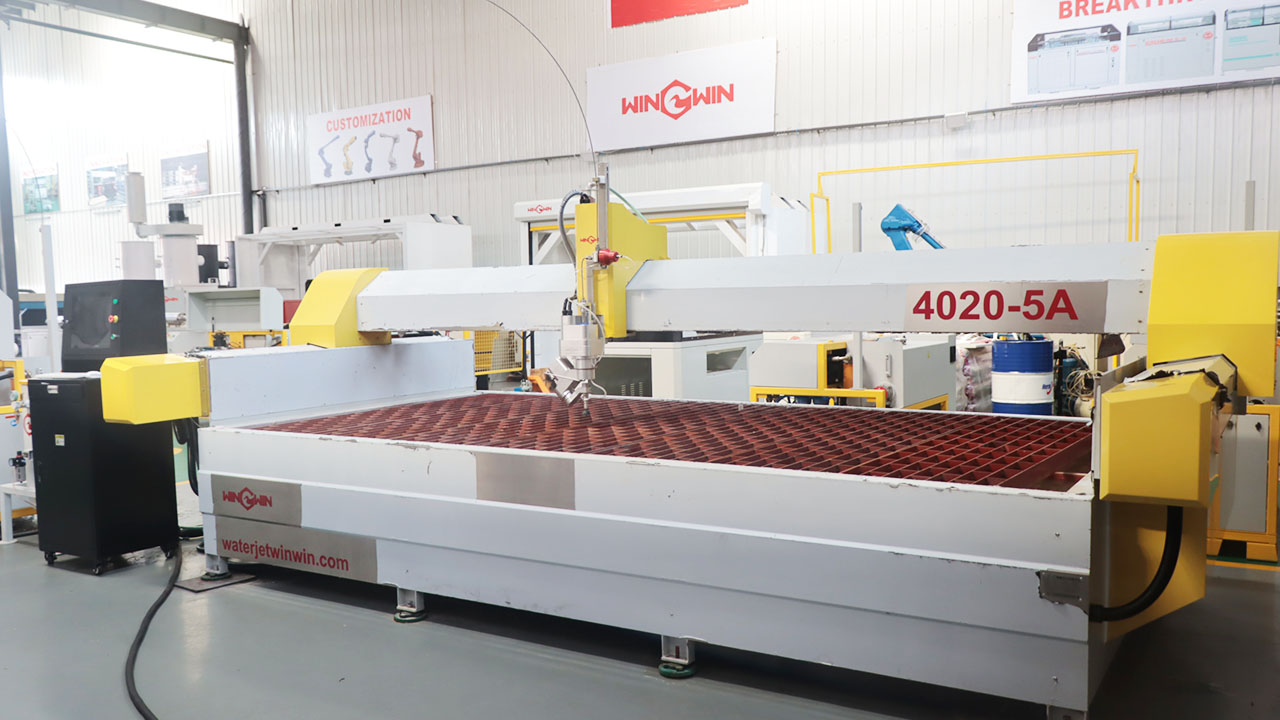

Gantry Abrasive Waterjet Cutting Machine

The Gantry abrasive waterjet cutting machine stands as a pivotal asset in industrial manufacturing. It combines high-pressure water flow with abrasive technology, utilizing a gantry-style structure to achieve precise three-dimensional cutting. The amalgamation of high-pressure water and abrasives is swiftly jetted onto material surfaces through specially designed nozzles, effortlessly slicing through materials of varying hardness. Its distinctive beam and pillar structure ensure rigidity and stability, widely applied in metalworking, construction, automotive manufacturing, and other sectors. While excelling in precision, efficiency, and operating without a heat-affected zone, the equipment cost is high. The future trajectory aims for heightened automation to boost production efficiency, injecting further innovation into industrial manufacturing.

A. Working Principle

The core principle behind the Gantry abrasive waterjet cutting machine lies in the fusion of high-pressure water flow and abrasive cutting technology, executed within a gantry-style structure to achieve precise three-dimensional cutting within the workspace. The operational sequence commences with pressurizing water via a high-pressure water pump, forming a high-pressure water flow. Subsequently, abrasives are introduced into the water flow, creating a hybrid mixture. This blended flow, propelled through specially designed nozzles, is jetted onto the surface of the material awaiting cutting at exceptionally high speeds. The high-velocity water jet, combined with abrasive particles, effortlessly penetrates and cuts materials of varying hardnesses and thicknesses.

Its operational methodology predominantly comprises several key steps:

1. Generation of High-Pressure Water Flow

The workflow initiates by pressurizing water to extreme pressures via a high-pressure water pump. This highly pressurized water is primed for cutting applications.

2. Injection of Abrasives

Within the high-pressure water flow, abrasives (typically silicon sand or other high-hardness materials) are introduced, creating a hybrid fluid. The inclusion of these abrasives enhances the cutting capacity of the water flow, rendering it more adept at cutting materials of diverse hardnesses and thicknesses.

3. Jetting Outflow

The blended flow, directed through specially designed nozzles, is expelled onto the surface of the material awaiting cutting at an extraordinary velocity and pressure. The high-speed jet of water, accompanied by abrasives, akin to the force of a high-velocity storm, effectively pierces and cuts through various materials.

4. Cutting Process

Upon contact with the material, the high-pressure jet of water and abrasives instantaneously generate high-speed abrasion and impact, leading to the separation and cutting of the material. In this process, the hardness of the abrasives and the high-pressure of the water flow collaboratively achieve efficient cutting.

5. Precision Cutting and Control

The Gantry abrasive waterjet cutting machine employs a computer control system that precisely regulates the water flow and cutting process, facilitating high accuracy and rapid cutting. This precision control enables the machine to execute intricate cutting patterns and curves.

The Gantry abrasive waterjet cutting machine relies on the force of high-pressure water flow and abrasives for cutting while minimizing damage to the cutting material. This cutting method exerts minimal heat impact and is suitable for materials of various hardnesses and thicknesses.

B. Structural Features

The distinctive attribute of the gantry-style structure is a defining characteristic of the Gantry abrasive waterjet cutting machine. It employs a framework resembling a gantry, composed of beams and columns, allowing the worktable to move freely in a three-dimensional space. This configuration's stability and rigidity offer robust support to the machine, ensuring cutting precision and stability.

The structural features encompass several key aspects:

1. Gantry-Style Structure

Named after its gantry-like construction, it consists of beams and columns, with the beams spanning between the columns. This configuration enables the work platform to move freely in a three-dimensional space, providing a substantial working range. The gantry-style structure offers stability and rigidity, aiding in maintaining cutting accuracy and stability.

2. Free-Moving Worktable

The machine's worktable moves between the columns via the beams of the gantry-style structure, allowing the worktable considerable freedom of movement in three directions. This feature endows the machine with a broader cutting range and flexibility.

3. Precision Control System

The Gantry abrasive waterjet cutting machine is equipped with a sophisticated control system, typically computer-controlled. This system precisely regulates the movement of the worktable and cutting process, enabling the machine to execute intricate cutting patterns and ensure cutting precision and quality.

4. High-Pressure Water Pump and Nozzle

These machines incorporate a high-pressure water pump that pressurizes water to extremely high levels for cutting purposes. The nozzle is one of the critical components, uniquely designed to enable the high-pressure water flow and abrasives to jet onto the surface of the material awaiting cutting at extremely high speeds, facilitating efficient cutting.

5. Structural Stability and Rigidity

The gantry-style structure offers excellent stability and rigidity, allowing the machine to maintain stability during high-speed cutting, ensuring cutting accuracy and quality. This structure makes the abrasive waterjet cutting machine suitable for cutting various-sized and shaped workpieces.

6. Customizability

The Gantry abrasive waterjet cutting machine can be customized according to specific requirements. Parameters such as worktable size, cutting pressure, and speed can be adjusted to meet specific workpiece and process demands.

These structural characteristics equip the Gantry abrasive waterjet cutting machine with high precision, efficiency, and flexibility in the industrial processing domain, establishing it as a vital tool for cutting various materials.

C. Application Fields

The gantry-style abrasive waterjet cutting machine finds extensive applications across various industries. In the metalworking sector, it accurately cuts a wide range of metal sheets, handling both simple straight cuts and intricate curves. In construction and stone processing, it's utilized for cutting hard materials like marble, granite, contributing to architectural embellishments and sculptures. Additionally, it's employed in the automotive industry to cut body panels and components. Moreover, within aerospace, it caters to cutting aerospace parts and intricate metallic structures.

1. Metalworking Sector

Metal Sheet Cutting: Capable of precisely cutting diverse metal sheets, be it steel, aluminum alloys, or titanium.

Complex Part Manufacturing: Used in fabricating intricate parts for automobiles, machinery, and aerospace components.

2. Construction and Stone Processing

Stone Cutting: Capable of cutting hard stones like marble, granite, contributing to architectural decorations and sculptures.

Building Material Processing: Used for cutting and carving building materials such as wall panels, flooring, etc.

3. Automotive Manufacturing

Body Panel Cutting: Employed to cut automotive body panels, accommodating various shapes and curves.

Component Manufacturing: Suitable for producing automotive engine parts, chassis components, etc.

4. Aerospace Industry

Aerospace Part Manufacturing: Able to cut aerospace components, including aircraft structural parts and spacecraft components.

5. Other Industries

l Plastic Processing: Applied in the plastic processing industry for cutting plastic components.

l Glass Cutting: Certain models are utilized for glass cutting, for instance, in glassware production.

l Food Industry: Used for cutting food items like bread, cakes, etc., in the food industry.

These diverse application fields highlight the versatility and adaptability of the gantry-style abrasive waterjet cutting machine, meeting precise cutting requirements across various sectors and playing a vital role in industrial production.

D. Advantages and Challenges

Advantages:

l High Cutting Precision: Achieves high-precision cutting, maintaining quality and accuracy along the cutting edges.

l Fast Cutting Speed: Its high-speed cutting efficiency performs exceptionally well in production, enhancing productivity.

l Minimal Heat-Affected Zone: Almost no heat impact during cutting, avoiding thermal damage to materials.

l Versatility Across Materials: Capable of easily cutting various materials with different hardnesses and thicknesses, including metals, stones, plastics, etc.

l Reduced Material Wastage: Causes minimal damage to materials, reducing waste and improving resource utilization.

Challenges:

l High Equipment Cost: The purchase and maintenance costs of these machines are high, posing a challenge for some small to medium-sized enterprises.

l Complex Abrasive Management: Different cutting materials may require various types of abrasives, leading to higher management and maintenance costs.

l Environmental Concerns: In some cases, high-pressure water and abrasives may generate waste that needs proper disposal to avoid negative environmental impacts.

l Skill-Intensive Operation: Operating the machine demands specialized skills and training; operators need professional knowledge to ensure safe and effective use.

Despite the challenges associated with gantry-style abrasive waterjet cutting machines, their high precision, efficiency, and versatility make them an indispensable tool in modern manufacturing. With ongoing technological advancements, addressing these challenges is continually being refined.

E. Future Outlook

1. Intelligent and Automated Capabilities

In the future, gantry-style abrasive waterjet cutting machines may become more intelligent, integrating advanced automation technologies. Through the incorporation of sophisticated sensors and automated control systems, achieving smarter and more precise cutting, reducing the need for manual operations, and enhancing production efficiency.

2. Expanded Range of Applications

With ongoing technological advancements, these machines are poised to further broaden their application scope. Apart from the existing fields such as metalworking, construction, automotive manufacturing, and aerospace, they might venture into more areas like medical device manufacturing, electronic component processing, and beyond.

3. Environmentally-Friendly Technologies

With heightened environmental awareness, future gantry-style abrasive waterjet cutting machines might focus more on the development of eco-friendly technologies. This could involve the adoption of greener cutting mediums or more efficient waste disposal techniques to reduce environmental impact.

4. Enhanced Efficiency and Energy Conservation

Future developments might emphasize greater energy utilization efficiency by optimizing equipment structures and technologies to reduce energy consumption, thereby cutting costs.

5. Enhanced Customization Flexibility

Adapting to evolving demands, these machines could lean towards enhanced customization. Offering more personalized solutions based on specific customer requirements, meeting the unique needs of various industries and production lines.

The future development of gantry-style abrasive waterjet cutting machines may integrate closely with automation, intelligence, environmental consciousness, energy efficiency, and customization. This alignment aims to better cater to the evolving demands of industrial manufacturing, providing more efficient and precise solutions for production.

Overall, gantry-style abrasive waterjet cutting machines represent advanced technology in modern industrial manufacturing. Their efficient, precise, and versatile characteristics position them as crucial tools in the manufacturing industry.
