CP022039/563 flange for BFT waterjet

CP022039/563 flange for BFT waterjet

Product Item: CP022039/563
Product Name:BFT waterjet part
Manufacturer: Win Win Waterjet
  • Product Detail

Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available

 CP022039/563 flange for BFT waterjet

Here are some other routine maintenance tasks that you should perform to keep your waterjet cutting system in good condition:

  1. Change filters: The filters in the waterjet cutting system are designed to remove impurities and debris from the water, which can help prevent damage to the system. It is important to change the filters on a regular basis, as recommended by the manufacturer. This can help ensure that the system is operating at peak performance and prevent issues with the intensifier pump and other components.

  2. Inspect hoses and fittings: Regular inspection of the hoses and fittings in the waterjet cutting system can help identify any signs of wear or damage before they cause issues with the system. Look for signs of cracks, leaks, or other visible damage, and replace any components that are worn or damaged.

  3. Clean the cutting tank: The cutting tank in the waterjet cutting system can become contaminated with debris and other materials over time, which can affect the performance of the system. It is important to clean the cutting tank on a regular basis, as recommended by the manufacturer.

  4. Lubricate moving parts: Some components of the waterjet cutting system, such as bearings and other moving parts, require lubrication to operate smoothly and prevent wear and damage. It is important to follow the manufacturer's recommendations for lubrication and perform this task on a regular basis.

  5. Check for water quality issues: Water quality is critical for the proper operation of a waterjet cutting system. Regularly check the waterquality to ensure that it meets the manufacturer's recommendations. If there are any issues, such as high levels of minerals or other contaminants, consider using a water treatment system.

  6. Check for loose bolts and connections: Regularly check the bolts and connections on the waterjet cutting system to ensure that they are tight and secure. Loose bolts or connections can cause issues with the system and even result in equipment failure.

  7. Keep the system clean: Keeping the waterjet cutting system clean can help prevent issues with the system and ensure that it operates at peak performance. Regularly clean the system, including the cutting head, to remove debris and other materials.

Performing these routine maintenance tasks can help prevent issues with the waterjet cutting system and ensure that it is operating at peak performance. It is important to follow the manufacturer's recommendations for maintenance and perform regular inspections to identify any potential issues before they cause damage to the system. Working with an experienced and knowledgeable technician can also help ensure that the system is properly maintained and any issues are addressed promptly and effectively.

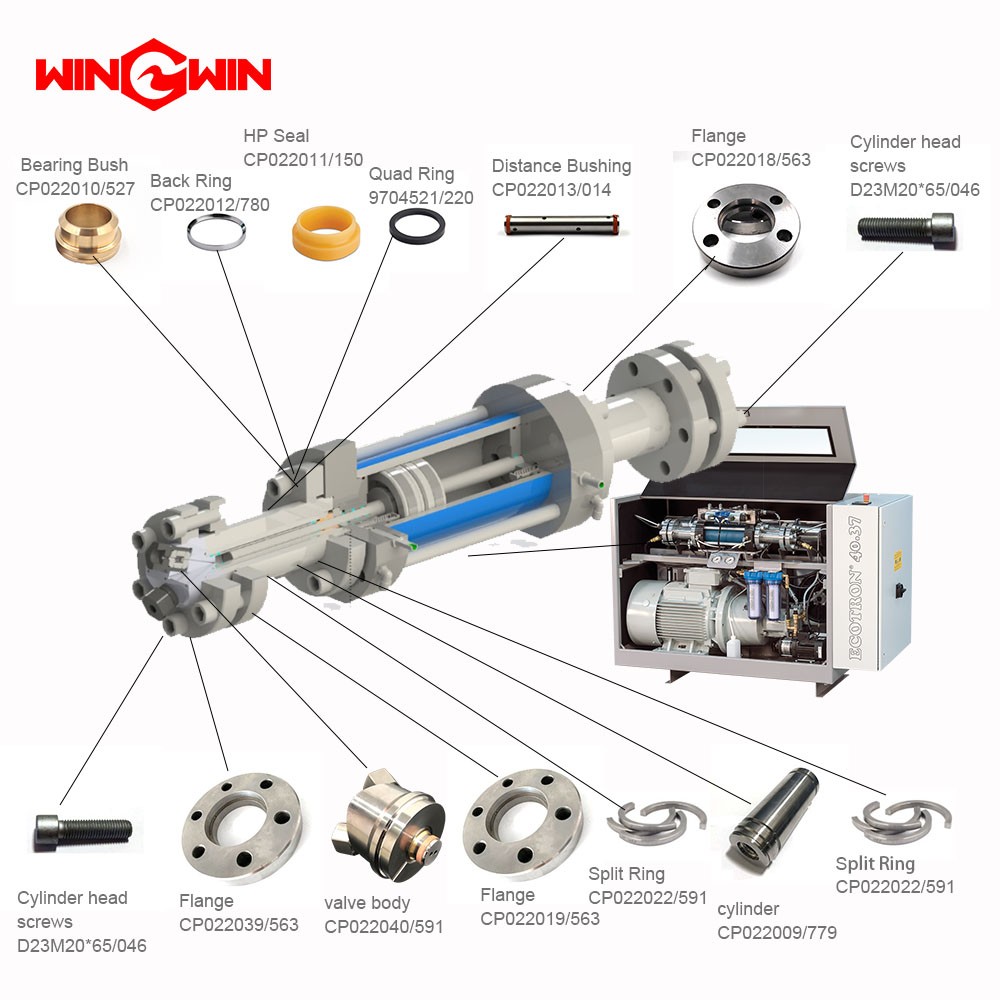

CP022002/190Cylinder
1200402piston complete
XK121/220Piston sealing
XF56/220Wear ring
CP022066/220Plunger complete
CP022057/075Clamp ring
HT022044/103Retaining ring
034858/220O-ring backring 97
XST17/220Rod sealing 22,0 x 32,7 x 4,2 mm
XST17/220Rod sealing 22,0 x 32,7 x 4,2 mm
XF29/220Rod wear ring 22x27x5,6 mm
D23M20360/046Cylinder head screw
CP022017/172connection flange
CP022016/172connection flange
CP022021/593Thread ring
HT022004/473Piston
CP020030/562Bushing
CP020031/473Guiding
CP020032/562Supporting ring
CP020033/255helical spring
CP020034/255helical spring
CP020034/255Helical spring
S24B20/103Snap ring
xn5/220initiator
XST9/220PLUG
CP022009/779High pressure cylinder
CP022010/527Bearing bush
CP022011/150Sealing
CP022012/780Back ring
9704521/220Quadring
CP022013/014Distance bushing
CP022040/591Valve body
CP022015/527Back ring
XF35/220Rod wear ring
CP022022/591SPLIT RING
CP022018/563Flange
CP022019/563Flange
CP022039/563Flange
D23M20*65/046Cylinder head screw
CP022047/844Pressure valve
CP022019/844suction valve
MA160818/220swivel male elbow
OR0759017/151o-ring75.92*1.78
