72155967 HP Tube, Bent, .38 Waterjet Pump

72155967 HP Tube, Bent, .38 Waterjet Pump

Product Item:
72155967 HP Tube, Bent, .38 Waterjet Pump
72160849	Intensifier Topworks
72162513	Housing, Attenuator Weldment
05040696	Attenuator Assembly
10079531	Coupling Assembly, HP, .56 x .38
10078590	Tee Assembly, HP, .38
20427739	Valve/Actuator Assembly
05144837	Spacer, Attenuator Bracket
10078715	HP Collar, .38
10078129	HP Gland, .38
49830581	Coupling Assembly, Bulkhead, .56 x .38
72154033	HP Tube, Bent, .38
10094704	HP Tube, Bent, .38
72160906	HP Tube, Bent, .38
72154116	HP Tube, Bent, .2
  • Product Detail

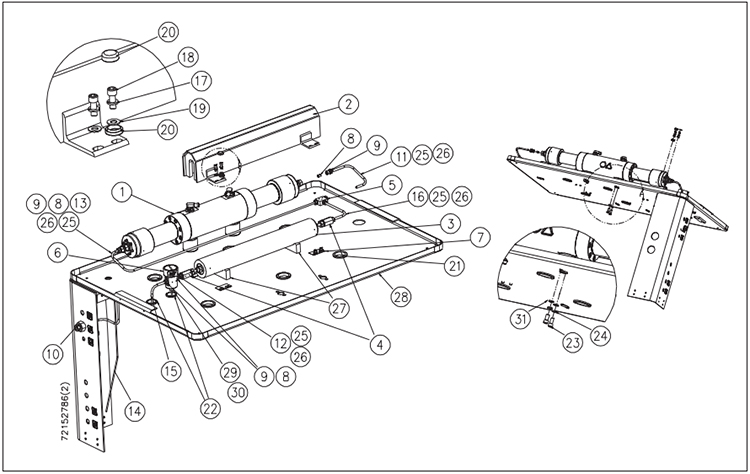

High Pressure Piping, 1 Liter Attenuator

72162477

Item

Part Number

Description

Quantity

1

72160849

Intensifier Topworks

1

2

72162513

Housing, Attenuator Weldment

1

3

05040696

Attenuator Assembly

1

4

10079531

Coupling Assembly, HP, .56 x .38

2

5

10078590

Tee Assembly, HP, .38

1

6

20427739

Valve/Actuator Assembly

1

7

05144837

Spacer, Attenuator Bracket

4

8

10078715

HP Collar, .38

4

9

10078129

HP Gland, .38

4

10

49830581

Coupling Assembly, Bulkhead, .56 x .38

1

11

72154033

HP Tube, Bent, .38

1

12

10094704

HP Tube, Bent, .38

1

13

72160906

HP Tube, Bent, .38

1

14

72154116

HP Tube, Bent, .25

1

15

72154075

HP Tube, Bent, .38

1

16

72155967

HP Tube, Bent, .38

1

17

95670972

Lock Washer, .38

8

18

95375473

Socket Head Screw, 3/8-16 x 1

8

19

95660957

Flat Washer, .38

8

20

20491892

Cup Seal

1

21

49831480

Grommet, 3.0 x 2.25

7

22

20419432

Grommet, 2.25 x 1.63

2

23

95383790

Socket Head Screw, 1/2-13 x 1

4

24

95413696

Lock Washer, .50

4

25

10083897

Ferrule, Hose, .25

8

26

10186153

Flexible Conduit, .38

140.0"

27

72162495

Spacer, Attenuator

2

28

72152547

Top Pan

1

29

10078459

HP Gland, .25

1

30

10078426

HP Collar, .25

1

31

49898729

Flat Washer, M12

4

High-pressure piping and a 1-liter attenuator are components commonly used in systems that involve high-pressure fluids, such as hydraulic systems,

industrial machinery, or systems requiring precise fluid control.

1.  High-Pressure Piping: This refers to the pipes or tubing designed to handle fluids under high pressure. These pipes are constructed from materials capable of withstanding

the stress and forces exerted by high-pressure fluids, often using stainless steel, alloy steel, or other materials with high tensile strength and corrosion resistance.

High-pressure piping is crucial in systems where fluids need to be transported or contained without leaks or structural failure.

2.  1-Liter Attenuator: An attenuator, in this context, is a device used to control pressure fluctuations or spikes within a fluid system. The 1-liter attenuator, also known as an accumulator,

is a type of pressure vessel that helps regulate pressure variations in the system by absorbing surges or providing additional fluid volume to accommodate changes in pressure.

It maintains a more consistent and steady flow of fluid, reducing stress on components and ensuring smoother operation of the system.

Both high-pressure piping and the 1-liter attenuator play critical roles in ensuring the stability, safety, and efficiency of systems dealing with high-pressure fluids by managing pressure

and facilitating the controlled movement of fluids within the system.

PREVIOUS:95670972 Lock Washer, .38 Water Jet Cutter Pump

NEXT:72154075 HP Tube, Bent, .38 High Pressure Piping, 1 Liter Attenuator
