20458830 check valve kit for waterjet intensifier pump
Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available
Replacing a waterjet check valve body kit can be a complex and technical process, and it is recommended to consult with a qualified technician or the manufacturer's technical support team. However, here are some general steps that may be involved:
Turn off the waterjet system and disconnect the power supply.
Locate the check valve body kit that needs to be replaced, which typically includes the check valve body, seat, spring, and o-rings. This may require referring to the manufacturer's manual or consulting with a technician.
Remove any hoses or fittings connected to the check valve body.
Remove the old check valve body, seat, spring, and o-rings from the system, using appropriate tools such as pliers or a wrench.
Clean the area around the check valve seat to remove any debris or contaminants.
Install the new check valve body kit into the system, ensuring that all components are oriented correctly and making sure that any seals or gaskets are in place.
Tighten the check valve body using appropriate tools, taking care not to overtighten or damage the body.
Reconnect any hoses or fittings that were disconnected earlier.
Reconnect the power supply and turn on the waterjet system to test the check valve's functionality and for any leaks.

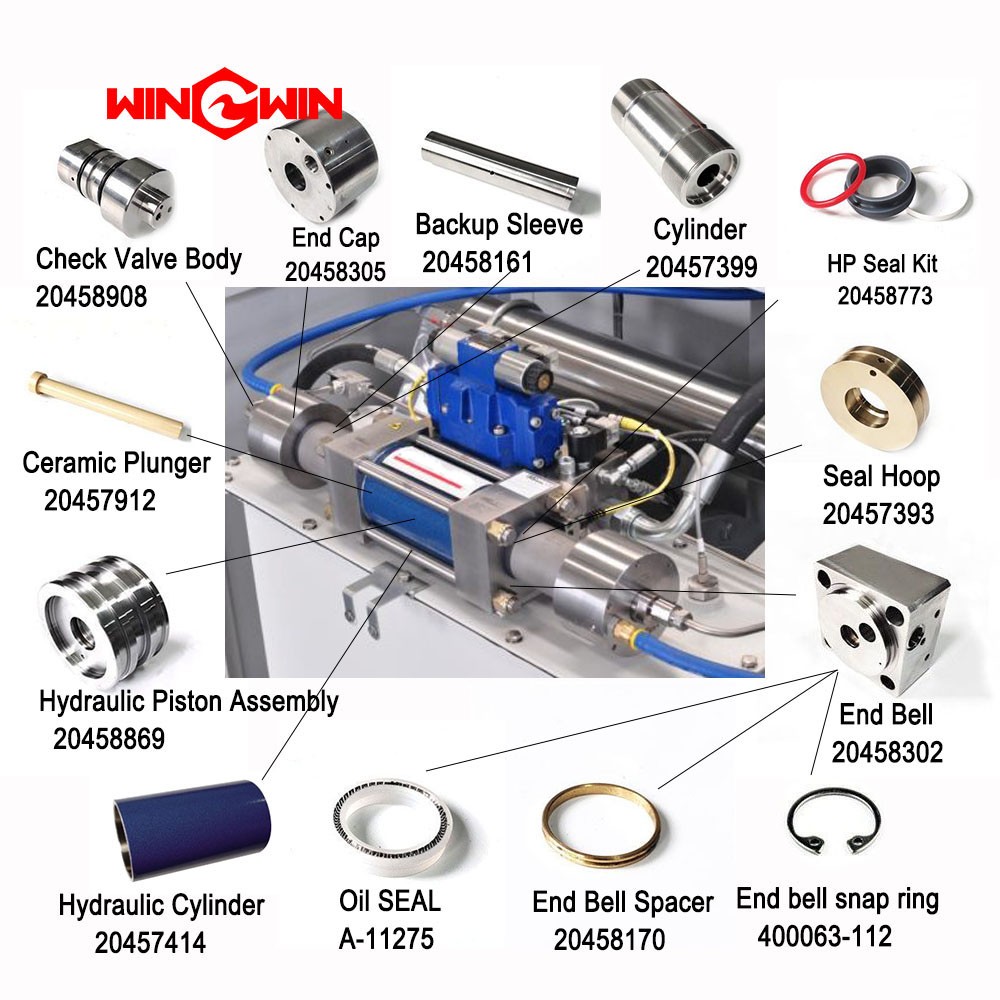

Item | Part Number | Description | Item | Part Number | Description |
1 | 20458305 | End Cap | 12 | 20458062 | Plunger Retainer |
2 | 20457399 | High Pressure Cylinder | 13 | 20458869 | Hydraulic Piston Assembly |
3 | 20458299 | End Bell, LH | 20457966 | Hydraulic Piston | |
4 | 20458302 | End Bell, RH | 20458821 | Rebuild Kit, Piston Rings | |
5 | 20458191 | Tie Rod | 20460216 | Seal | |
6 | 20460489 | Hex Nut | 14 | 20458170 | Spacer, Hydraulic Seal |
7 | 20457414 | Hydraulic Cylinder | 15 | 20458908 | Sealing Head Assembly |
8 | 20458161 | Backup Sleeve | 16 | 20460252 | Snap Ring |
9 | 20458773 | Rebuild Kit, High Pressure Seal Assembly | 17 | 05202930 | Snap Ring |
20457990 | Seal Buttress | 18 | 20457267 | Inlet Water Nipple | |
20458113 | High Pressure Seal | 20457159 | Adapter, Quick Disconnect | ||
20457393 | Seal Hoop | 20459025 | O-Ring, Quick Disconnect | ||
20460108 | O-Ring | 11 | 20457912 | Plunger | |
10 | 20458797 | Rebuild Kit, Hydraulic Seal Assembly |
