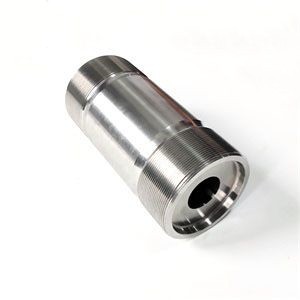

20457399 Cylinder for waterjet intensifier pump
Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available
The function of a waterjet high pressure cylinder is to provide the necessary force and pressure to drive the waterjet cutting process. A waterjet high pressure cylinder is typically a hydraulic cylinder that is used to convert hydraulic energy into mechanical energy, which is then used to drive the cutting head and control the movement of the cutting nozzle.
When water is pressurized to high levels, it can be used to cut through a variety of materials, including metals, plastics, and composites. The high pressure cylinder is responsible for generating the pressure that drives the water through the cutting nozzle, which then creates a high-speed and high-pressure water jet that is capable of cutting through the material.
The high pressure cylinder is typically powered by a hydraulic pump that generates the necessary pressure to drive the cylinder. The cylinder converts this hydraulic pressure into linear motion, which is then used to control the movement of the cutting head and nozzle.
Item | Part Number | Description | Item | Part Number | Description |
1 | 20458305 | End Cap | 12 | 20458062 | Plunger Retainer |
2 | 20457399 | High Pressure Cylinder | 13 | 20458869 | Hydraulic Piston Assembly |
3 | 20458299 | End Bell, LH | 20457966 | Hydraulic Piston | |
4 | 20458302 | End Bell, RH | 20458821 | Rebuild Kit, Piston Rings | |
5 | 20458191 | Tie Rod | 20460216 | Seal | |
6 | 20460489 | Hex Nut | 14 | 20458170 | Spacer, Hydraulic Seal |
7 | 20457414 | Hydraulic Cylinder | 15 | 20458908 | Sealing Head Assembly |
8 | 20458161 | Backup Sleeve | 16 | 20460252 | Snap Ring |
9 | 20458773 | Rebuild Kit, High Pressure Seal Assembly | 17 | 05202930 | Snap Ring |
20457990 | Seal Buttress | 18 | 20457267 | Inlet Water Nipple | |
20458113 | High Pressure Seal | 20457159 | Adapter, Quick Disconnect | ||
20457393 | Seal Hoop | 20459025 | O-Ring, Quick Disconnect | ||
20460108 | O-Ring | 11 | 20457912 | Plunger | |
10 | 20458797 | Rebuild Kit, Hydraulic Seal Assembly |
