05146576 Piston Assembly for SL-VI100HP

05146576 Piston Assembly for SL-VI100HP

Product Item:05146576 Piston Assembly
Name:100HP waterjet pump spare part
Manufacturer: Win Win waterjet
  • Product Detail

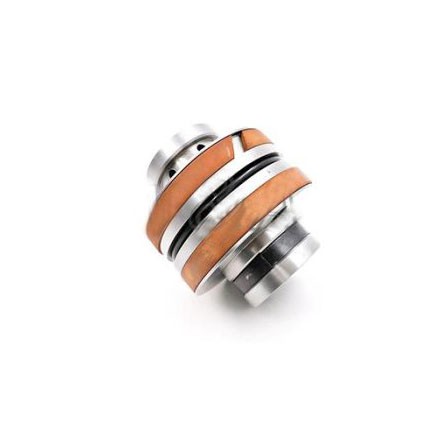

05146576 Piston Assembly for SL-VI100HP

Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available


The 05146576 Piston Assembly is an important component in some types of waterjet pumps used for industrial applications. Its primary function is to convert the mechanical power provided by the pump's motor into hydraulic power, which is then used to generate the high-pressure water flow required for cutting, cleaning, or other industrial applications.

The piston assembly typically consists of a piston, a connecting rod, and other necessary components such as seals and bearings. When the pump's motor rotates, it drives the connecting rod, which in turn moves the piston back and forth inside the pump's cylinder. This movement creates a high-pressure pulse of water that is then forced through the pump's check valves and into the HP Cylinder, where it is compressed and released as a high-pressure water flow.

The 05146576 Piston Assembly is typically made of high-strength materials such as stainless steel or other alloys that can withstand the high pressure and corrosive properties of the water being pumped. It is also designed to be highly durable and resistant to wear and tear, helping to ensure reliable and efficient operation of the waterjet pump.



100hp waterjet.png

ItemPart
Number
Description ItemPart
Number
Description
172119536HP Cylinder 1605120092Backup Ring, 5.25 x 5.50
205144506Ceramic Plunger1710074771O-Ring, 5.25 x 5.50 x .13
372110979Sealing Head Assembly 1820413955Socket Head Screw, 3/4-16 x 3-1/4
420416445Hydraulic Cylinder Head1905130224Proximity Switch, 20-250V AC/DC
505149711HP Seal Assembly2095119012Socket Head Screw, 1/4 x 20 x 1
749838220HP Cylinder Nut, HSEC2105146576Piston Assembly
805146584Hydraulic Cartridge Seal Assembly2305144522Topworks Support
905145099Bushing Retainer Flange 2505041058Socket Head Screw, 3/8-16 x 2-1/4
1172110945Liner, HP Cylinder 2695688743Lock Washer, .38
1210074920O-Ring, 1.75 x .94 x .092710118206O-Ring, 1.31 x 1.56 x .13
1380070352Jackbolt, 7/16-20 x 2.31 2805144183Spacer Assembly, Proximity Switch
1405034798Retaining Ring
05144191O-Ring, .69 x .88 x .09
1505144514Hydraulic Cylinder2905146592Gasket, Topworks Support


PREVIOUS:72110979 Sealing Head Assembly for SL-VI100HP

NEXT:72119536 HP Cylinder for SL-VI100HP
