Waterjet parts Coil 107462 Axis 5 KUKA KR60 Robotics

Waterjet parts Coil 107462 Axis 5 KUKA KR60 Robotics

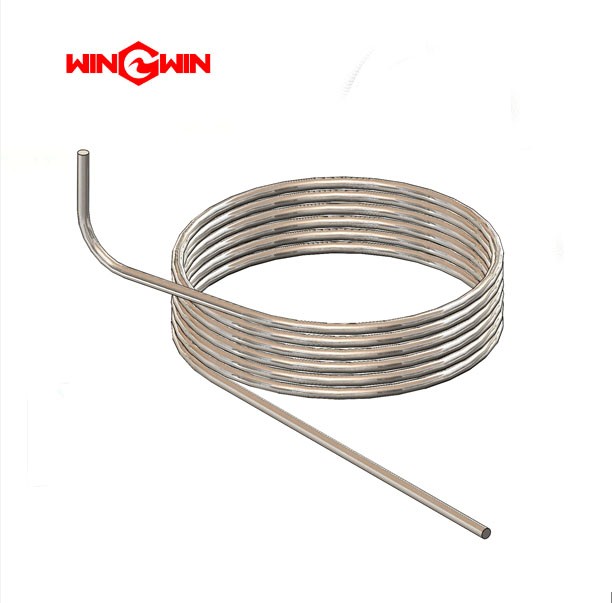

Product Item:107462
Details: used on Axis 5 KUKA KR60 robot waterjet cutting system
Replacement robotic water jet coils are made in house and ship SAME DAY they are ordered.
Each coil is:
Made from 66K PSI or 100K PSI Tubing
Pre-Coned and Threaded
Flushed under High Pressure prior to ship

With over 20 years of experience, WINWIN Waterjet has a large archive of coil drawings including:
ABB,FANUC,YASKAWA,KUKA Coils
Shape Process Automation (DRS, KMT, RPT) Coils
Flow Robotics Coils
  • Product Detail



REPLACEMENT Robotic Waterjet parts Coil 107462

Robotic Waterjet parts Coil 107462 Description

107462 Coil Axis 5 KUKA KR60 Robotics Water jet and Coils

Item number: 107462

Details: Robotic Waterjet parts Coil 107462 used on Axis 5 KUKA KR60 robot waterjet cutting system



KUKA KR60 WATERJET HIGH PRESSURE COIL TUBE

107458Coil Axis 2
107459Coil Axis 3
107462Coil Axis 5
107463Coil Axis 6
107464Coil Axis 1


Common faults and maintenance of CNC ultra-high pressure robot waterjet cutting system

Oil pump noise

Reasons:

1. The suction oil filter is clogged

2. The viscosity of the oil is too high

3. The fuel tank is not breathable

4. The liquid level in the fuel tank is too low
Elimination methods:

1. Clean or replace the oil filter element with a new one

2. Use lubricating oil with specified labels according to the season

3. Clean the air filter element in the fuel tank

4. Add oil to the upper limit of the liquid level gauge.



 There is foam in the oil

Reasons:

1. Oil suction pipe leaks 2. Oil pump shaft seal leaks
Solution:

1. Eliminate air leakage or replace with new pipe

2. Replace sealing ring



Oil pump overheats

Reasons:

1. The oil pump is worn or damaged

2. The viscosity of the oil is too low, too high or deteriorated
Solution:

1. Repair or update 2. Change new oil



Relief valve whistles

Reason:

The spring or valve core is damaged or the damping hole is blocked
Solution:

Replace damaged parts or clean



Oil temperature is too high

Reason: The overflow of the relief valve is too large
Solution: Reduce the overflow to match the high pressure



No pressure in the hydraulic system

Reasons:

1. There is air in the oil pump head and the oil does not come out.

2. The spool of the electromagnetic relief valve is stuck or there is no signal.
Solution:

1. Disassemble the oil return pipe to check, and fill the pump head with oil.

2. Clean the relief valve or restore the electrical signal.



For more faults and repair methods, please contact me. Send me a private message and I will find it for you. I will help you solve it.

If you are looking for robot waterjet cutting system suppliers or Waterjet parts Coil  suppliers, as well as waterjet technical support needs related to water cutting, please feel free to contact us, we can provide free online support for you.
