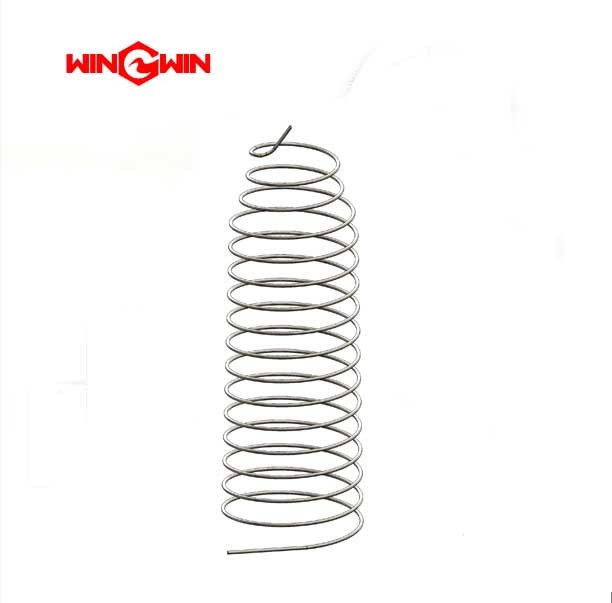

Waterjet parts Coil 104786 Fanuc M20 4 5 6

Waterjet parts Coil 104786 Fanuc M20 4 5 6

Product Item:104786
Details: used on FANUC robot waterjet cutting system
Replacement robotic waterjet coils are made in house and ship SAME DAY they are ordered.
Each coil is:
Made from 66K PSI or 100K PSI Tubing
Pre-Coned and Threaded
Flushed under High Pressure prior to ship
With over 20 years of experience, WINWIN Waterjet has a large archive of coil drawings including:
ABB,FANUC,YASKAWA,KUKA Coils
Shape Process Automation (DRS, KMT, RRPT) Coils
Flow Robotics Coils
  • Product Detail

The composition of a set of robotic waterjet cutting workstations

A set of robotic waterjet cutting workstations typically includes a combination of equipment, tools, and systems designed to perform a variety of tasks related to waterjet cutting. The composition of such a workstation may vary based on the specific needs and applications, but here are the key components that are commonly found in a robotic waterjet cutting workstation:


FANUC M20IA WATERJET HIGH PRESSURE COIL TUBE


20480158
Coil Axis 4,5,6
M20-1-2-REV1
Coil Axis 1,2
M20-L-1CTREV1
Coil Axis 1
M20-M-2CT
Coil Axis 2
M20-N-3CT
Coil Axis 3
104509
Coil Fanuc 1
104510
Coil Axis 2
104511
Coil Fanuc 3
104521
Coil Fanuc 4
104522
Coil Fanuc 3
104536
Coil Fanuc 2
104537
Coil Fanuc 5
104557
Coil Fanuc 1
104745
Coil Fanuc Line 4
104746
Coil Fanuc Line 5
104780
Coil Fanuc 2
104786
Coil Fanuc M20 M4,5,6
106259
Coil Fanuc Line 5
106260
Coil Fanuc Line 4
107158
Coil Fanuc change 104746



  1. Robotic : The robotic arm serves as the platform for the waterjet cutting tool. It can be a multi-axis articulated robot that provides flexibility in movement and positioning.



  1. Waterjet Cutting Head:This is the tool that emits the high-pressure waterjet for cutting. It is equipped with a nozzle, orifice, and mixing chamber to produce a focused and high-velocity stream.



  1. High-Pressure Pump: The pump is responsible for generating and pressurizing the water used for cutting. These pumps can be either direct-drive or intensifier types, depending on the specific needs of the application.



  1. Nozzle and Orifice Assembly:The nozzle and orifice determine the size and shape of the waterjet stream, affecting the cutting precision and quality.



  1. Cooling systems:In waterjet cutting play a crucial role in maintaining the temperature and performance of various components within the system. Waterjet cutting generates a significant amount of heat due to the friction of the high-pressure water and abrasive materials. Effective cooling is essential to ensure the system operates efficiently and to extend the life of critical components.



  1. Vacuum adsorption system:In a waterjet cutting context is a specialized system used to secure and stabilize workpieces or materials during the cutting process. It employs vacuum technology to create a strong and consistent hold on the material's surface, preventing any movement or vibrations that might compromise the cutting precision.



  1. Control System:The control system includes software and hardware to program and control the robotic arm and the cutting process. It is responsible for path planning, speed control, and other parameters.



  1. CAD/CAM Software:Computer-aided design (CAD) and computer-aided manufacturing (CAM) software are used for designing the cutting patterns and converting them into machine-readable code for the control system.



  1. Material Handling System: This may include conveyors, loaders, or other material handling equipment for loading and unloading workpieces onto the cutting table.



  1. Cutting Table: The cutting table provides a stable surface for the workpiece and is often equipped with a water collection system to handle the runoff from the cutting process.



  1. Abrasive Delivery System (Optional):For abrasive waterjet cutting, an abrasive delivery system is needed to mix abrasive material with the high-pressure water stream.



  1. Safety Features:Safety barriers, emergency stop buttons, and other safety features are essential for operator protection and machine safety.



  1. Operator Interface:A user interface allows operators to monitor the cutting process, load programs, and make adjustments as needed.



  1. Workspace and Enclosure: A workspace and enclosure provide a controlled environment for the robotic waterjet cutting system and ensure safety.



  1. Waste Collection System:A system for collecting and disposing of waste materials, which can include cut-off pieces and waste water.



The composition of a robotic waterjet cutting workstation can be tailored to the specific application, whether it's cutting intricate shapes in automotive interiors, trimming composite materials in aerospace, or any other precision cutting task.

It's important to choose and configure the components to match the requirements of the job and to consider safety, efficiency, and precision.

If you are looking for robot waterjet cutting system suppliers or Waterjet parts Coil 104786  suppliers, as well as waterjet technical support needs related to water cutting, please feel free to contact us, we can provide free online support for you.
