tungsten carbideThat is why water jet nozzles are made from tungsten carbide. While for most other cutting
and drilling industry products, the tip of the machine needs to be always in contact with the surface to do its job,
Water Jet cutting machines do not need to do the same
The nozzle size refers to the width of the nozzle bore hole. This value is three times the orifice diameter. The size of the water jet cutting nozzles can be divided into three segments:
Small Nozzles: A small nozzle is used when high accuracy or intricate details are required in the water jet cutting process. The diameter of these nozzles can range from 0.254 mm to 1.016 mm (0.01 in to 0.04 in). Small nozzles provide a higher control of the cutting process.
Medium Nozzles: Medium nozzles are used when working on surfaces or during general cutting operation. The precision is not the primary requirement for the medium nozzle cutting operation. The nozzle bore diameter can vary between 1.016 mm to 2.032 mm (0.04 in to 0.08 in).
Large Nozzle: Large nozzle is used when high speed cutting is the primary requirement. They can process bulk material cutting at a rapid rate. The nozzle bore diameter ranges from 2.032 mm to 6.35 mm (0.08 in to 0.25 in).
 | 0.030 x 3.0 / 0.76 mm x 76 mm 20477366 0.030 x 4.0 / 0.76 mm x 102 mm 20477382 0.033 x 4.0 / 0.84 mm x 102 mm 20490760 0.040 x 3.0 / 1.02 mm x 76 mm 20486133* 0.040 x 4.0 / 1.02 mm x 102 mm 20486166* 0.043 x 3.0 / 1.10 mm x 76 mm 20477386 0.043 x 4.0 / 1.10 mm x 102 mm 20477395 0.045 x 3.0 / 1.14 mm x 76 mm 20486151* 0.045 x 4.0 / 1.14 mm x 102 mm 20486158 0.048 x 4.0 / 1.22 mm x 102 mm 20490768 |
ROCTEC® 100 waterjet cutting head nozzle
| 0.021 x 3.13 / 0.53 mm x 79 mm 20451227* 0.025 x 3.13 / 0.63 mm x 79 mm 20452309* 0.030 x 3.13 / 0.76 mm x 79 mm 10126969 0.036 x 3.13 / 0.91 mm x 79 mm 80075252 0.039 x 3.13 / 0.99 mm x 79 mm 49833593* 0.040 x 3.13 / 1.02 mm x 79 mm 49835390 0.043 x 3.13 / 1.10 mm x 79 mm 10126928 0.052 x 3.13 / 1.32 mm x 79 mm 05117528 0.058 x 3.13 / 1.47 mm x 79 mm 05051891* 0.063 x 3.13 / 1.60 mm x 79 mm 10126936 |
ROCTEC® 500
 | 0.021 x 2.0 / 0.53 mm x 50 mm 05097928 0.030 x 3.13 / 0.76 mm x 79 mm 05097944 0.036 x 3.13 / 0.91 mm x 79 mm 05116652 0.043 x 3.13 / 1.10 mm x 79 mm 05097936 0.093 x 3.13 / 2.36 mm x 79 mm 05130927* |

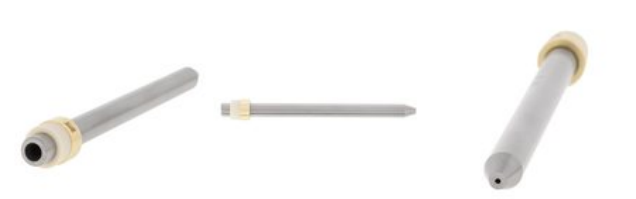

Mixing Tube
Mixing Tube QBIC Plus
 | Part name Diameter Length 010460-20-20 20-20 2 Inches 010460-30-30 30-30 3 Inches 010460-40-30 40-30 3 Inches 010460-40-40 40-40 4 Inches 010460-50-30 50-30 3 Inches 010460-60-40 60-40 4 Inches |
Paser ECL & Paser 4 Premium Mixing Tube
 | Part number Length Diameter 014194-30-30 3 Inches .03 Inches 014194-30-40 4 Inches .03 Inches 014194-35-40 4 Inches .035 Inches 014194-40-30 3 Inches .04 Inches 014194-40-40 4 Inches .04 Inches 014194-50-35 3.5 Inches .05 Inches |
Paser ECL & Paser 4 Standard Mixing Tube
 | Part number Length Diameter 014214-30-30 3 Inches .03 Inches 014214-30-40 4 Inches .03 Inches 014214-35-30 3 Inches .035 Inches 014214-40-30 3 Inches .04 Inches 014214-40-40 4 Inches .04 Inches |
Trimline Mixing Tube
 | Part number: 012680-40-30 |
What's the price for water jet nozzle ?
The price for water jet nozzle according the different sizes from 30-200USD
Water jet nozzle for different brands waterjet machine
6.35*0.76*76.2 mm 6.35*0.81*74.9 mm 6.35*0.91*76.2 mm 6.35*1.02*76.2 mm | Jet edge waterjet yongda waterjet Dardi waterjet |
7.14*0.76*76.2 mm 7.14*0.91*76.2 mm 7.14*1.02*76.2 mm | WSI Waterjet Flow waterjet Hypertherm waterjet |
7.14*0.76*101.6 mm 7.14*0.91*101.6 mm 7.14*1.02*101.6 mm 7.14*1.52*101.6 mm | Flow waterjet |
7.62*0.76*76.2 mm 7.62*1.02*76.2 mm | Hypertherm waterjet CMS waterjet |
8.00*0.76*101.6 mm 8.00*1.02*101.6 mm | Omax waterjet |
9.45*0.76*76.2 mm 9.45*0.91 *76.2 mm 9.45*1.02 *76.2 mm | KMT waterjet |
6.0*0.80*70 mm 6.0*1.02*70 mm | BHDT / BFT waterjet |
9.47*0.76*101.6 mm 9.45*1.02*101.6 mm | KMT waterjet |
