Ultra High Pressure Waterjet Pump

Ultra High Pressure Waterjet Pump

Product Item:
Product Name:90000psi waterjet part
Manufacturer: Win Win Waterjet

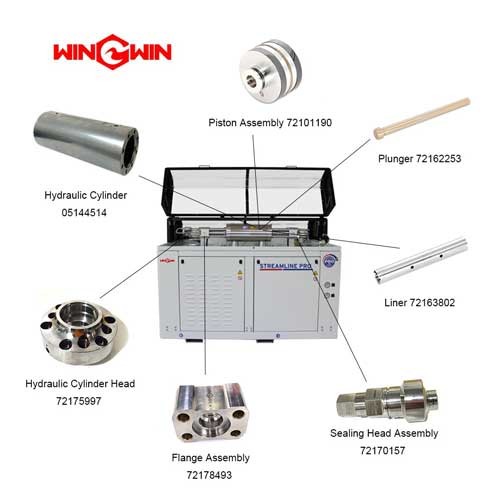

Hydraulic Cylinder:05144514/Piston Assembly:72101190
Plunger:72162253/Liner:72163802
Sealing Head Assembly:72170157/Flange Assembly:72178493/Hydraulic Cylinder Head:72175997
Seat:72101570/O-Ring 1.69*1.88*0.09:10146082
Sealing Head:72165539/Dowel Pin:20492131
Retaining Ring:20492123/Ball:10085371
Gland:20481660/Poppet Pin:05116751
Compression Spring:05147863/Discharge Poppet:05116561
Support Topworks:20476377/UHP Tee As
  • Product Detail

72166738 HP Cylinder for 90000psi waterjet pump

Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available




A 90,000 psi waterjet is capable of cutting through a wide range of materials, including:

  1. Metals: Waterjets can cut through various metals, including steel, aluminum, titanium, and copper. The high-pressure water can cut through thick metal plates with precision and speed.

  2. Stone: Waterjets can cut through natural stone and engineered stone materials, including granite, marble, and quartz. The precision and clean cuts of waterjets make them ideal for creating intricate designs in stone materials.

  3. Plastics: Waterjets can cut through various types of plastics, including acrylic, polycarbonate, and PVC. Waterjets can cut through plastics without producing heat, making them ideal for applications where heat could damage the material.

  4. Composites: Waterjets can cut through composite materials, such as carbon fiber and fiberglass. The precision and speed of waterjets make them ideal for creating complex shapes in composite materials.

  5. Glass: Waterjets can cut through glass materials, including tempered and laminated glass. The precision and clean cuts of waterjets make them ideal for creating intricate designs in glass.

  6. Ceramics: Waterjets can cut through ceramics, including porcelain and tiles. The high-pressure water can cut through ceramics without causing chipping or cracking.

  7. Food products: Waterjets can cut through food products, including fruits, vegetables, and meats. The cleanliness and precision of waterjets make them ideal for food processing applications.

Overall, a 90,000 psi waterjet is a versatile cutting tool that can cut through a wide range of materials with precision and speed. The ability to cut through many different materials makes waterjets a valuable tool in many industries, including aerospace, automotive, manufacturing, and food processing.



ItemPart NumberDescriptionItemPart NumberDescription
15146592Gasket, Topworks Support1472162253Plunger
220476377Support, Topworks155130091Hydraulic Seal Cartridge
310118206O-Ring, 1.31×1.56× .131672175989Bushing Retainer Flange
45144514Hydraulic Cylinder1772158494UHP Seal Assembly
55098991Socket Head Screw, 3/8-16×3-3/41872166738UHP Cylinder
695688743Lock Washer, .381972163802Liner
772101190Piston Assembly2020474325Stud, 1-1/8-12×18.31
810074771O-Ring, 5.25×5.50× .132172170157Sealing Head Assembly
95120092Backup Ring, 5.25×5.50× .132272178493Flange Assembly
1072175997Hydraulic Cylinder Head2320464590Flat Washer, 1.13
115097886Socket Head Screw, 3/4-16×2-1/42420461761Hex Nut, 1-1/8-12
125144183Spacer Assembly, Proximity Switch2520489339Adapter, JIC/Pipe, 50× .38

5144191O-Ring, .69× .88× .092672176756O-Ring, 3.88×4.25× .19
1372141569Kit, Proximity Switch
95119012Socket Head Screw, 1/4-20×1

72134224Proximity Switch
