Jetline JL-1 50 pump parts

Jetline JL-1 50 pump parts

Product Item:


  • Product Detail

Description


Jetline JL-1 50 pump parts
jetline 1.jpg



Parts NumberParts Name
05116769Sealing Head Assembly
05059688Nut,HP Cylinder
10110393Static Seal Assembly Repair Kit
05059712High-Pressure Cylinder
80080021Liner
20422243High Pressure Seal Assembly
72112358Hydraulic Piston Assembly
05039771Plunger
20429338Nut Plungen Retainer
20418031Ring Retaining Hydraulic
05034764Hydraulic Cylinder
05127584Proximity Switch Kit
10183572Screw Socket Head,M6-1x30MM
05144183Proximity Switch Spacer
05034772Hydraulic Cylinder Head
10075000O-ring,3-3/4″x4″x1/8″
05034855Backup Ring,3.75×4.0
05034798Ring,Flange
05007786Flange,Seal Hydraulic
80086622Hydraulic Cartridge Assembly
KMT WATERJET SPARE PARTS ORIGINAL
Parts NumberParts Name
05116769Sealing Head Assembly
10118552Retainer Poppet
49884562Spring,LP-Water Inlet
10107894Valve Poppet
05116751Poppet Retainer
49894116Check Valve Spring
05116561Poppet Seat
05112768Seat
05116777Gland
jetline 3.jpg
Parts NumberParts Name
20427739Pneumatic Valve/Actuator Assembly Normally Open
BV401184Pneumatic Cylinder
20435636Valve Stem
10187250Backup Ring,SST
10188233Backup Ring,Brass
20428052Seal Assembly
20427648Valve Body
10178697Valve Seat
49830904Adapter,HP Water Valve

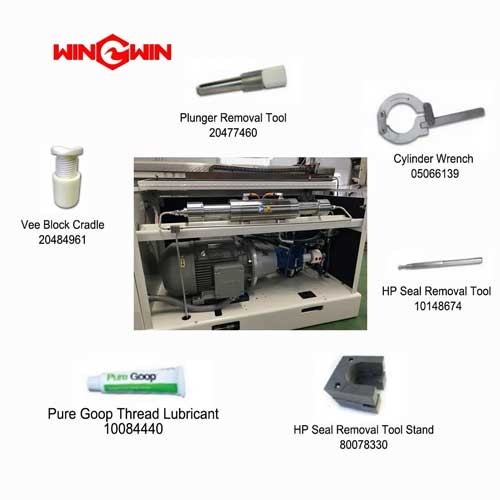

jetline 4.jpg
Parts NumberParts Name
20477460Plunger Removal Tool
05066139Cylinder Wrench
20484961Vee Block Cradle
10148674HP Seal Removal Tool
10084440Pure Goop Thread Lubricant
80078330HP Seal Removal Tool Stand
jetline 5.jpg
Parts NumberParts Name
05050026Switch,Temperature
20468666Filter Element Hydraulic
05045497Hydraulic Pressure Gauge
20468732Heat Exchanger Oil/Water 1/2″
20455089Hose Hydraulic LP
20437164Directional Control Valve
10187052Knob Adjuster
