49833114 seal positioning tool for 100HP waterjet intensifier pump

49833114 seal positioning tool for 100HP waterjet intensifier pump

Product Item:49833114 seal positioning tool
Name:100HP waterjet pump spare part
Manufacturer: Win Win waterjet
  • Product Detail

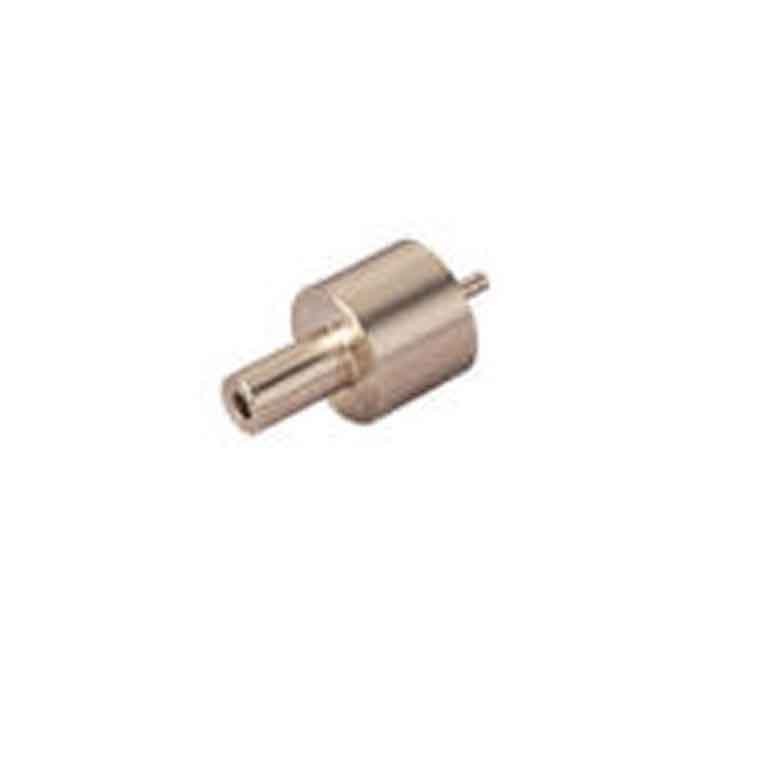

49833114 seal positioning tool

Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available

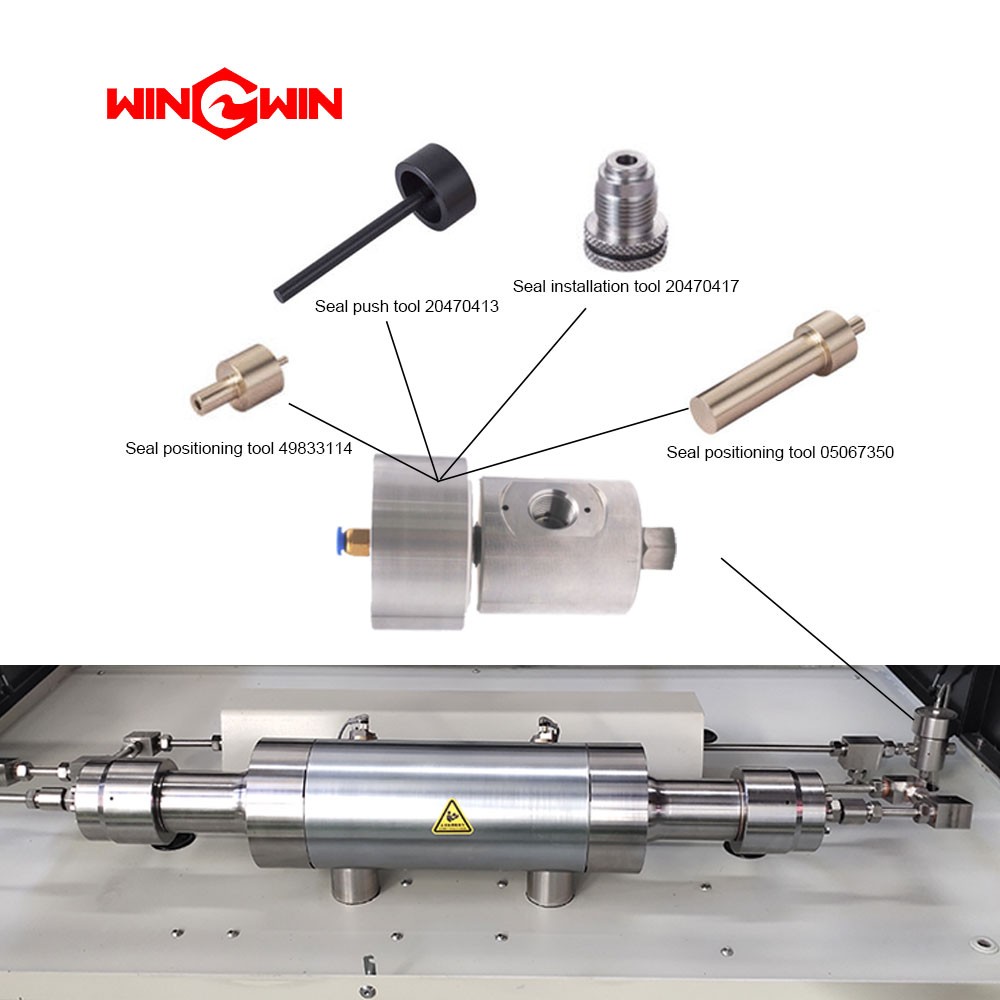

The 49833114 Seal Positioning Tool is a specialized tool used in waterjet pumps to help position the seal assembly correctly during installation or replacement. The seal assembly is an important component of the waterjet pump, which helps to prevent leaks and maintain the pressure of the water flow.


The function of the Seal Positioning Tool is to help guide the seal assembly into place within the pump's high-pressure cylinder. The tool is specifically designed to fit the shape and size of the seal assembly and can be used to ensure that the seal is positioned correctly and evenly within the cylinder.


Without the Seal Positioning Tool, it can be difficult to position the seal assembly properly, which can result in leaks or reduced pump performance. The tool helps to ensure that the seal is installed correctly the first time, which can save time and reduce maintenance costs over the long term.


the Seal Positioning Tool may seem like a small component, but it plays an important role in ensuring the proper installation and functioning of the seal assembly in the waterjet pump, which is essential for the overall reliability and performance of the pump.


100hp waterjet.png

ItemPart
Number
Description ItemPart
Number
Description

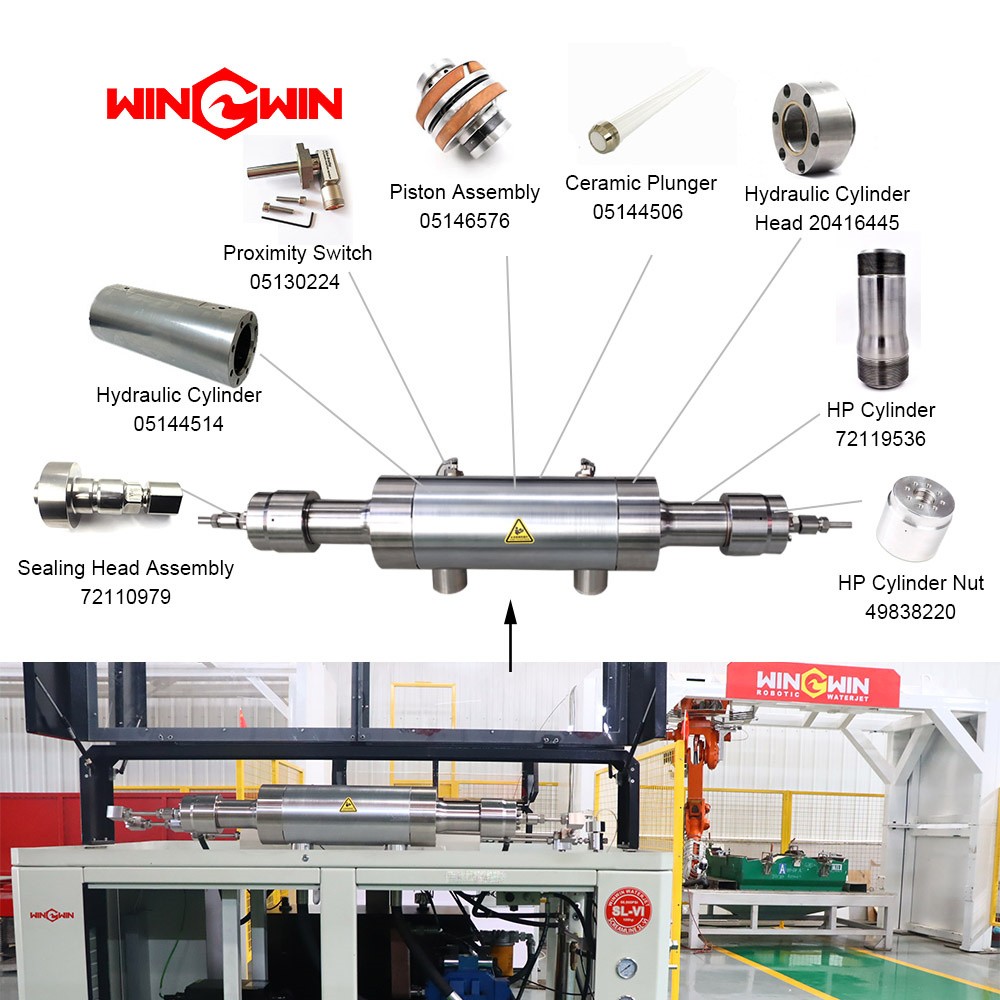

172119536HP Cylinder 1605120092Backup Ring, 5.25 x 5.50
205144506Ceramic Plunger1710074771O-Ring, 5.25 x 5.50 x .13
372110979Sealing Head Assembly 1820413955Socket Head Screw, 3/4-16 x 3-1/4
420416445Hydraulic Cylinder Head1905130224Proximity Switch, 20-250V AC/DC
505149711HP Seal Assembly2095119012Socket Head Screw, 1/4 x 20 x 1
749838220HP Cylinder Nut, HSEC2105146576Piston Assembly
805146584Hydraulic Cartridge Seal Assembly2305144522Topworks Support
905145099Bushing Retainer Flange 2505041058Socket Head Screw, 3/8-16 x 2-1/4
1172110945Liner, HP Cylinder 2695688743Lock Washer, .38
1210074920O-Ring, 1.75 x .94 x .092710118206O-Ring, 1.31 x 1.56 x .13
1380070352Jackbolt, 7/16-20 x 2.31 2805144183Spacer Assembly, Proximity Switch
1405034798Retaining Ring
05144191O-Ring, .69 x .88 x .09
1505144514Hydraulic Cylinder2905146592Gasket, Topworks Support
