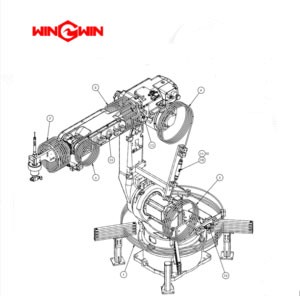

Waterjet parts Coil 049407 COIL ASSY SUSPENSION;HP20D

Waterjet parts Coil 049407 COIL ASSY SUSPENSION;HP20D

Product Item:049407
Details: used on robot waterjet cutting system
Replacement robotic water jet coils are made in house and ship SAME DAY they are ordered.
Each coil is:
Made from 66K PSI or 100K PSI Tubing
Pre-Coned and Threaded
Flushed under High Pressure prior to ship

With over 20 years of experience, WINWIN Waterjet has a large archive of coil drawings including:
ABB,FANUC,YASKAWA,KUKA Coils
Shape Process Automation (DRS, KMT, RPT) Coils
Flow Robotics Coils
  • Product Detail


REPLACEMENT Robotic Waterjet parts Coil 049407

Robotic Waterjet parts Coil 049407 Description

FLOW Waterjet robot coil

Item number: 049407

Details: Robotic Waterjet parts Coil 049407 used on robot waterjet cutting system

OTHER WATERJET HIGH PRESSURE COIL TUBE

24602490Coil Axis 2
303743Coil Axis 1
303748Coil Axis 3
303747Coil Axis 1-2
304491Coil Axis 4,5,6
PEL01Coil Axis
PEL02Coil Axis
303721Coil Axis 1
20427978Coil Axis Special
49830052Coil Axis

Inverted fixed table robot waterjet cutting system

Equipment name: Robot waterjet cutting system
Maximum radius of action: 3200mm
Cutting stations: four or less

Product introduction
Compared with abrasive cutting, pure waterjet cutting has a faster cutting speed and is especially suitable for cutting plastics, synthetic building materials, various soft base materials and composite materials. The application of pure water cutting in car ceilings, carpets and other interior parts has particularly shown significant advantages, becoming a new solution for the molding and cutting of car interior parts.

The upside-down fixed-table robot waterjet cutting platform is installed upside down on the top of the cutting chamber, and the workbench is fixedly installed in the cutting chamber. After the workpiece is installed, the system starts, the robot starts cutting, and after the cutting is completed, the workpiece is removed and then a new workpiece with cutting is reloaded. It is especially suitable for cutting and processing interior parts such as car roofs with high precision.

Features
1. Integrated design, suitable for high-precision cutting of vehicle ceilings and other components
2. Upside-down robot installation, large coverage area and fast operation speed
3. Multiple robots can be used to work together to improve production efficiency
4. High cutting accuracy
5. A single loading area requires only one operator, reducing labor costs.
6. Comprehensive safety design ensures system operation and operator personal safety
7. Integrated design, all functional components of the system are automated and easy to operate

If you are looking for robot waterjet cutting system suppliers or Robotic Water jet Coils suppliers, as well as waterjet technical support needs related to water cutting, please feel free to contact us, we can provide free online support for you.
