20477950010 diamond waterjet cutting head IDE II ASSY-.010

20477950010 diamond waterjet cutting head IDE II ASSY-.010

Product Item:20477950010

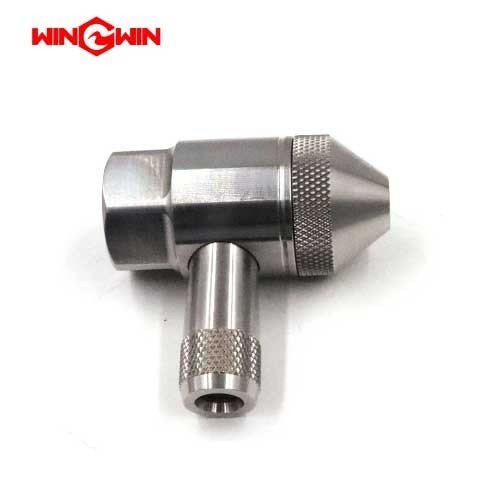

20477950010 diamond waterjet cutting head IDE II ASSY-.010
  • Product Detail

Waterjet Spare Parts IDE II Mixing Chamber Diamond Orifice 204779500xx for Waterjet Cutting Head



1. Which nozzles are used for KMT waterjet cutting head?


The PRO Series features the superior HYPERTUBE Index Design for longer, more uniform  wear preventing “focusing tube blow-out"


0.030 x 3.0 / 0.76 mm x 76 mm 20477366

0.030 x 4.0 / 0.76 mm x 102 mm 20477382

0.033 x 4.0 / 0.84 mm x 102 mm 20490760

0.040 x 3.0 / 1.02 mm x 76 mm 20486133*

0.040 x 4.0 / 1.02 mm x 102 mm 20486166*

0.043 x 3.0 / 1.10 mm x 76 mm 20477386

0.043 x 4.0 / 1.10 mm x 102 mm 20477395

0.045 x 3.0 / 1.14 mm x 76 mm 20486151*

0.045 x 4.0 / 1.14 mm x 102 mm 20486158

0.048 x 4.0 / 1.22 mm x 102 mm 20490768


ROCTEC® 100 waterjet cutting head nozzle


0.021 x 3.13 / 0.53 mm x 79 mm 20451227*

0.025 x 3.13 / 0.63 mm x 79 mm 20452309*

0.030 x 3.13 / 0.76 mm x 79 mm 10126969

0.036 x 3.13 / 0.91 mm x 79 mm 80075252

0.039 x 3.13 / 0.99 mm x 79 mm 49833593*

0.040 x 3.13 / 1.02 mm x 79 mm 49835390

0.043 x 3.13 / 1.10 mm x 79 mm 10126928

0.052 x 3.13 / 1.32 mm x 79 mm 05117528

0.058 x 3.13 / 1.47 mm x 79 mm 05051891*

0.063 x 3.13 / 1.60 mm x 79 mm 10126936

ROCTEC® 500


0.021 x 2.0 / 0.53 mm x 50 mm 05097928

0.030 x 3.13 / 0.76 mm x 79 mm 05097944

0.036 x 3.13 / 0.91 mm x 79 mm 05116652

0.043 x 3.13 / 1.10 mm x 79 mm 05097936

0.093 x 3.13 / 2.36 mm x 79 mm 05130927*


2. Which model orifice suit for KMT waterjet cutting head ?

1. AUTOLINE PRO 6,200 bar Diamond Orifice


0.004" / 0.10 mm 20481704

0.005" / 0.12 mm 20481705

0.006" / 0.15 mm 20481706

0.007" / 0.17 mm 20481707

0.008" / 0.20 mm 20481708

0.009" / 0.23 mm 20481709

0.010" / 0.25 mm 20481710

0.011" / 0.28 mm 20481711*

0.012" / 0.30 mm 20481712

0.013" / 0.33 mm 20481713*

0.014" / 0.35 mm 20481714

0.015" / 0.38 mm 20481715*

0.016" / 0.40 mm 20481716

0.017" / 0.43 mm 20481717*

0.018" / 0.46 mm 20481718*

0.019" / 0.48 mm 20481719*

0.020" / 0.51 mm 20481720*

0.021" / 0.53 mm 20481721*

0.022" / 0.56 mm 20481722*


 2.  AUTOLINE I & II 4,100 bar For True Alignment & Maximum Performance waterjet cutting head Diamond Orifice



0.004" / 0.10 mm 20448625*

0.007" / 0.17 mm 05063847

0.008" / 0.20 mm 05112537

0.009" / 0.23 mm 05084504

0.010" / 0.25 mm 05077029

0.011" / 0.28 mm 05101753

0.012" / 0.30 mm 05077300

0.013" / 0.33 mm 05136098

0.014" / 0.35 mm 05077037

0.015" / 0.38 mm 80075781*

0.016" / 0.40 mm 05121512

0.018" / 0.46 mm 05114905*

0.019" / 0.48 mm 80086663*

0.020" / 0.51 mm 05114897


3. Sapphire Orifice


0.007" / 0.17 mm 05109079*

0.008" / 0.20 mm 05109087*

0.009" / 0.23 mm 05109095*

0.010" / 0.25 mm 05109103*

0.011" / 0.28 mm 05109111*

0.012" / 0.30 mm 05109129*

0.013" / 0.33 mm 20412569*

0.014" / 0.35 mm 05109137*

0.016" / 0.40 mm 20448541*

0.018" / 0.46 mm 05114913*

0.019" / 0.48 mm 80086671*

0.020" / 0.51 mm 05114921



4. Orifices for Pure Water Cutting 4,100 bar Diamond Orifice


0.003" / 0.07 mm 49888852

0.004" / 0.10 mm 49888860

0.005" / 0.12 mm 49888878

0.006" / 0.15 mm 49888886

0.007" / 0.17 mm 49888894

0.008" / 0.20 mm 49888902

0.009" / 0.23 mm 49888910

0.010" / 0.25 mm 49888928

0.012" / 0.30 mm 49888936

0.013" / 0.33 mm 49836786*

0.014" / 0.35 mm 49888944

0.015" / 0.38 mm 49888951

0.016" / 0.40 mm 49888969

0.018" / 0.46 mm 49888977

0.019" / 0.48 mm 20436198*

0.020" / 0.51 mm 49888985

0.022" / 0.56 mm 49888993


5. waterjet cutting head Sapphire Orifice


0.003" / 0.07 mm A2260003*

0.004" / 0.10 mm 49863574

0.005" / 0.12 mm 49863582

0.006" / 0.15 mm 91954073

0.007" / 0.17 mm 49863590

0.008" / 0.20 mm 49865850

0.009" / 0.23 mm 49863608

0.010" / 0.25 mm 49863616

0.011" / 0.28 mm A2260011*

0.012" / 0.30 mm 49863624

0.013" / 0.33 mm A2260013*

0.014" / 0.35 mm 49863632

0.015" / 0.38 mm A2260015

0.016" / 0.40 mm A2260016

0.018" / 0.46 mm A2260018*

0.019" / 0.48 mm A2260019*

0.020" / 0.51 mm A2260020*

0.022" / 0.56 mm A2260022*


6.4,100 bar Diamond Orifice


0.005" / 0.12 mm 72113688

0.006" / 0.15 mm 72132350

0.007" / 0.17 mm 72113753

0.007" / 0.17 mm, 3/8-24 Thread 72113680

0.008" / 0.20 mm 72132358

0.009" / 0.23 mm 72136231

0.010" / 0.25 mm 72136249

0.011" / 0.28 mm 72136256




PREVIOUS:20477950011 diamond waterjet cutting head IDE II ASSY-.011

NEXT:20477950009 diamond waterjet cutting head IDE II ASSY-.009
