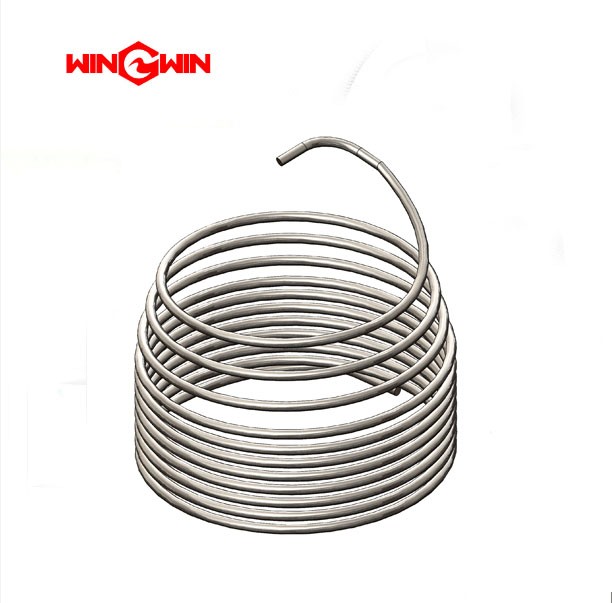

Waterjet parts Coil 107463 Axis 6 KUKA KR60

Waterjet parts Coil 107463 Axis 6 KUKA KR60

Product Item:107463
Details: used on Robot waterjet cutting system
Replacement robotic water jet coils are made in house and ship SAME DAY they are ordered.
Each coil is:
Made from 66K PSI or 100K PSI Tubing
Pre-Coned and Threaded
Flushed under High Pressure prior to ship

With over 20 years of experience, WINWIN Waterjet has a large archive of coil drawings including:
ABB,FANUC,YASKAWA,KUKA Coils
Shape Process Automation (DRS, KMT, RPT) Coils
Flow Robotics Coils
  • Product Detail


REPLACEMENT Robotic Waterjet parts Coil 107463

Robotic Waterjet parts Coil 107463 Description

107463 Coil Axis 6 KUKA KR60 Robotics Water jet and Coils

Item number: 107463

Details: Robotic Waterjet parts Coil 107463 used on Axis 6 KUKA KR60 robot waterjet cutting system

KUKA KR60 WATERJET HIGH PRESSURE COIL TUBE

107458Coil Axis 2
107459Coil Axis 3
107462Coil Axis 5
107463Coil Axis 6
107464Coil Axis 1

The intensifier does not reverse direction

Reasons:

1. The cutter head gem is clogged or the water switch is not turned on

2. The electro-hydraulic reversing valve spool is stuck

3. The electro-hydraulic reversing valve does not receive a signal
Solution:

1. Check the above components

2. Clean the valve core

3. Troubleshoot so that the electro-hydraulic reversing valve receives a signal



The pressure gauge needle swings greatly when changing direction,Such as unilateral return to zero

Reasons:

1. Check the one-way valve for leakage and heat

2. Check the plug assembly

3. The high-pressure sealing rubber ring is damaged

4. The hydraulic cylinder piston sealing ring is damaged
Solution:

1. Replace the high-pressure valve core and spring

2. Check whether the low-pressure valve core is loose

3. Replace the low-pressure high sealing ring

4. Replace
If both sides return to zero
Reasons:

1. Whether the energy converter gem is not installed

2. Check whether the high-pressure pipeline is leaking

3. Insufficient hydraulic pressure or leakage

Solution:

1. Installation 2. Troubleshooting



For more faults and repair methods, please contact me. Send me a private message and I will find it for you. I will help you solve it.

If you are looking for robot waterjet cutting system suppliers or Waterjet parts Coil  suppliers, as well as waterjet technical support needs related to water cutting, please feel free to contact us, we can provide free online support for you.
