WINWIN Waterjet has specialized in robot waterjet cutting system for decades and the robot waterjet projects have been  widely used in the automotive,aerospace, helmet cutting industries.

Our customer who purchased this 7 axis robot waterjet cutting&cleaning system is used for aerospace industry.

Customers in the United States and France are inspecting and accepting  robot waterjet cutting&cleaning system produced in Winwin.

Winwin’s robot waterjet system can be flexibly equipped with ABB, FANUC, KUKA, and YASKAWA manipulators. We have standard production plant of 2800m2, the full automation production line, strict QC phase, 100% testing before shipment.

Customized production is carried out according to customer needs, and the equipment is checked and accepted before delivery. WINWIN Waterjet strictly control the quality.

This robot waterjet cleaning system is currently being testing and will be shipped to the United States.

This set of project has the following features:

1. Seven-axis linkage system, with high flexibility and large working radius, realizes fully automated production

2. Fully protective structure, low noise and high safety

3. Customized for the aerospace Industry Group, efficient cleaning

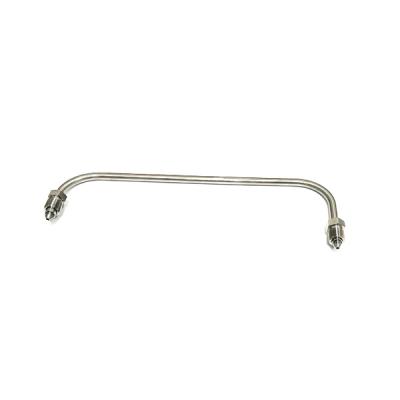

Win-Win selects the highest quality components for global Robotic Waterjet users. Our high-pressure tubes have enough bendability while having high durability during High-Pressure Operation. The high-pressure coil on the robot arm reduces the impact of high-pressure water on the tube wall by being wound in multiple ways. At the same time, we set up multiple mounting to fix tubes and make them firmly attached to the robot arm, so as to ensure that there will be no serious shaking when the robot moves at high speed, thus reducing the risk of bursting. Win-Win High-Pressure Fittings and valves and gauges are also highly durable. We also set a high-pressure filter assembly device into the joint to keep the

high-pressure water pure and soft, and extend the service time of orifices.

Waterjet cutting finds several applications in the aerospace industry. It is used to cut composite materials like carbon fiber reinforced polymers (CFRP) for aircraft structures and components. Waterjet cutting is also employed to produce gaskets and seals for aerospace applications, ensuring proper sealing of components and systems. Additionally, it is utilized in fabricating interior components such as seat cushions, carpeting, and insulation.

In some cases, waterjet cutting is used for engine components, although specific applications may vary. Overall, waterjet cutting provides precise cutting capabilities for various materials used in aerospace, contributing to efficient manufacturing processes and high-quality components.

A high-pressure water jet system, also known as a water jet cutter, is a tool that uses a high-pressure stream of water to cut through various materials. It is commonly used in industrial applications for cutting, cleaning, and surface preparation.

High-pressure water jet robot cutting applications involve the use of robotic systems equipped with high-pressure water jet cutting tools. These systems are used in industrial settings to cut a wide range of materials with precision and efficiency. The robots are programmed to follow specific cutting paths, allowing them to handle complex shapes and intricate patterns.

Device and Components Introduction

The IRB 4600 is a very efficient general-purpose robot optimized for short cycle times. Its slim body can easily maneuver in high-density work cells. IRB 4600 makes the production unit layout more compact, improves both production capacity and quality, and pushes production efficiency to a new level.

The IRB 4600 adopts an innovative optimized design, has a compact and lightweight body, and achieves the highest acceleration of its kind from ABB. Combined with its ultra-fast running speed, the cycle time can be reduced by up to 25% compared with industry standards. During operation, the robot can always maintain the highest acceleration when avoiding obstacles and tracking paths, thereby improving productivity and efficiency.

Our SCREAMLINE SL-VI 100HP standard and servo system ultra-high pressure pumps represent the new quality standard of WIN-WIN waterjet system. The newly designed end bell hard seal (HSEC) pressure intensifier determines the trend of the waterjet industry.

SCREAMLINE SL-VI 100HP standard type and servo type can help you provide ultra-high pressure for pure water and abrasive cutting applications, no matter how your system is designed: the standard type and servo type of SCREAMLINE SL-VI 100 HP can be installed and operated independently, or can be operated remotely through any central control system.

If you are also interested in 7 axis robot cleaning system,please contact me for more details!
