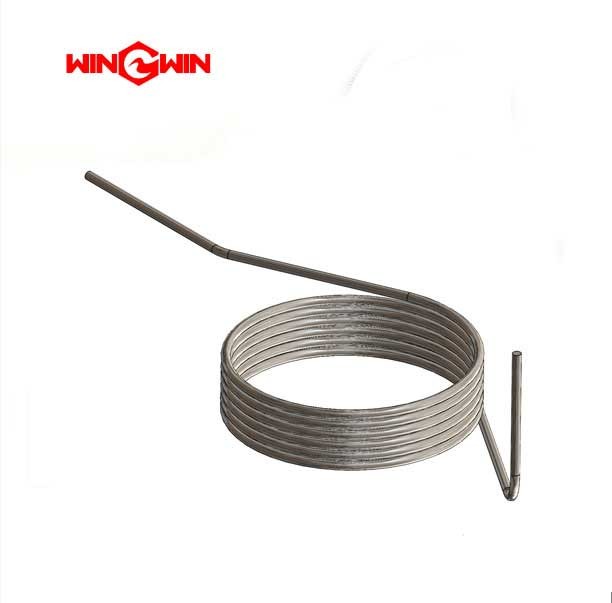

REPLACEMENT Robotic Waterjet parts Coil 106671
Robotic Waterjet parts Coil 106671 Description
ABB IRB1600 WATERJET HIGH PRESSURE COIL TUBE
| 304296 | Coil Axis 2 |
| 304297 | Coil Axis 3 |
| 304415 | Coil Axis 1 |
| 304436 | Coil Axis 4,5,6 |
| 305892 | Coil Axis 2 |
| 306337 | Coil Axis 1 |
| 104757 | Coil Axis 1 |
| 104758 | Coil Axis 2 |
| 104759 | Coil Axis 3 |
| 104760 | Coil Axis 4,5,6 |
| 106517 | Coil Axis 1 |
| 106671 | Coil Axis 2 |
| 107266 | Coil Axis 3 |
What is the accuracy of robotic waterjet cutting machine?
Relatively speaking, a waterjet cutting process is highly accurate. Once the cutting starts (meaning that the initial through hole is complete), a waterjet cutting machine can achieve a parts tolerance of +/- 0.001” with consistency. This makes the waterjet cutting process highly desirable for cutting precision parts.
The accuracy of a robotic waterjet cutting machine depends on various factors, including the machine's design, the quality of components, the control system, and the operator's expertise.
However, robotic waterjet cutting systems are generally known for their high precision and accuracy. The typical accuracy levels you can expect are:
Positioning Accuracy: This measures how accurately the machine can move to a programmed position. In robotic waterjet cutting, positioning accuracy is often within the range of ±0.1 mm (0.004 inches) to ±0.5 mm (0.02 inches), depending on the specific machine and its design.
Repeatability:Repeatability is the ability of the machine to return to the same position when the same task is repeated. It is often better than or equal to the positioning accuracy, typically within ±0.1 mm (0.004 inches) to ±0.5 mm (0.02 inches).
Cutting Accuracy:This refers to the precision of the cut itself. In waterjet cutting, it can typically achieve tolerances within ±0.1 mm (0.004 inches) to ±0.5 mm (0.02 inches) for most materials. However, the accuracy may vary depending on the material type, thickness, and the machine's settings.
Path Accuracy:The accuracy of the toolpath or trajectory followed by the robotic arm. Path accuracy is influenced by the control system, the machine's mechanical design, and the quality of components.
Part Dimensional Accuracy:This is the accuracy of the finished part's dimensions. It depends on factors like material, cutting speed, and the quality of the waterjet stream. For most applications, dimensional accuracy is within the range of ±0.1 mm (0.004 inches) to ±0.5 mm (0.02 inches).
It's important to note that achieving these accuracy levels requires proper calibration, maintenance, and operator expertise. Additionally, the specific tolerances you can achieve may vary based on the complexity of the cut, the quality of the abrasive waterjet, and other factors. Therefore, it's advisable to conduct test cuts and regularly maintain and calibrate the machine to ensure the highest accuracy for your specific application.
If you are looking for robot waterjet cutting system suppliers or Robotic Water jet Coils suppliers, as well as waterjet technical support needs related to water cutting, please feel free to contact us, we can provide free online support for you.
