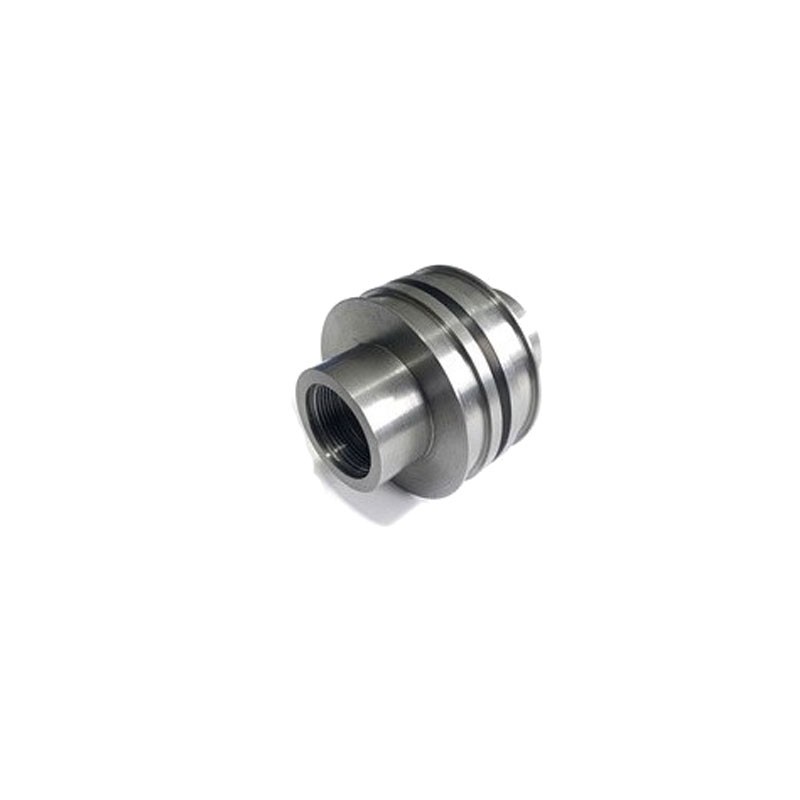

Waterjet Parts 72112358 waterjet pump parts
The function of a waterjet pump intensifier is to increase the pressure of the water being used in a waterjet cutting system. The intensifier is a key component of the waterjet pump, and it works by using hydraulic power to generate high-pressure water.
The intensifier consists of two main parts: a hydraulic piston and a plunger. The hydraulic piston is driven by a motor, and it pumps hydraulic fluid into a chamber that contains the plunger. As the piston moves back and forth, it creates pressure in the hydraulic fluid, which in turn pushes the plunger forward.
The plunger is connected to a high-pressure water line, and as it moves forward, it compresses the water, increasing its pressure to the desired level. The high-pressure water is then sent through a cutting head, where it is focused into a narrow stream and used to cut through materials such as metal, stone, and composites.
The pressure generated by a waterjet pump intensifier can range from a few thousand pounds per square inch (psi) up to 90,000 psi or more, depending on the specific pump model and application. The higher the pressure, the more powerful the cutting ability of the waterjet system.
In summary, the function of a waterjet pump intensifier is to use hydraulic power to generate high-pressure water that can be used for cutting, cleaning, and other industrial applications.
| Item | Part Number | Description |
| 1 | 20460891 | HP-CYLINDER 1 1/8" X 8" SSEC |
| 2 | 05039771 | PLUNGER ASSY PMP 875-8 |
| 3 | 05116769 | SEAL HEAD, ASSY, POPPET, SL-IV |
| 4 | 05034772 | HEAD, HYDRAULIC CYLINDER, SLIV |
| 5 | 20422243 | SEAL ASSY SL-IV/V 50 HP HYBRID |
| 6 | 10110393 | SEAL ASSY, SEAL HEAD, SLIII/IV |
| 7 | 05059688 | NUT, HP CYLINDER, 3-3/4" SLIV |
| 8 | 80086622 | HYDRAULIC CARTRIDGE ASSEMBLY |
| 9 | 05007786 | FLANGE, SEAL HYDRAULIC, |
| 10 | 20429338 | NUT PLUNGER RETAINER 1.75-20UN |
| 11 | 80080021 | LINER-HP CYL, 1.12x8.63, |
| 12 | 10074904 | O-RING, RING, LP WATER INLET, |
| 13 | 10110401 | RING, SEAL HEAD, LP WATER, |
| 14 | 05034798 | RING, FLANGE, HYD. SEAL, |
| 15 | 05034764 | CYLINDER, HYDRAULIC, SLIV |
| 16 | 10075000 | O-RING, 3-3/4"x4"x1/8" |
| 17 | 05034855 | RING, BACK-UP, 3-3/4"x42 |
| 18 | 05141106 | SCREW SOCKET HEAD M14x60 |
| 19 | 05127584 | SWITCH, PROXIMITY, 24 VDC, |
| 20 | 10183572 | SCREW SOCKET HEAD, M6-1x30 MM |
| 21 | 20429322 | HYDRAULIC PISTON PRESSURE INTE |
| 22 | 05144183 | SPACER, PROXIMITY SWITCH (AB), |
| 23 | 20418031 | RING RETAINING HYDRAULIC |
If you are interesting in other Jetline I50 Waterjet part,please contact us when you free.
