WIN-WIN is a manufacturer of ODM water cutting equipment. The current equipment is the mainstream equipment in the market. Our SCREAMLINE SL-VI standard and servo system ultra-high pressure pumps represent the new quality standard of WIN-WIN waterjet system. The newly designed end bell hard seal (HSEC) pressure intensifier determines the trend of the waterjet industry.
SL-VI 50HP pump has a double intensfier structure, which can be replaced for 24h operation without shutdown to ensure production efficiency.
60, 000psi ultra high pressure, ensuring production efficiency.

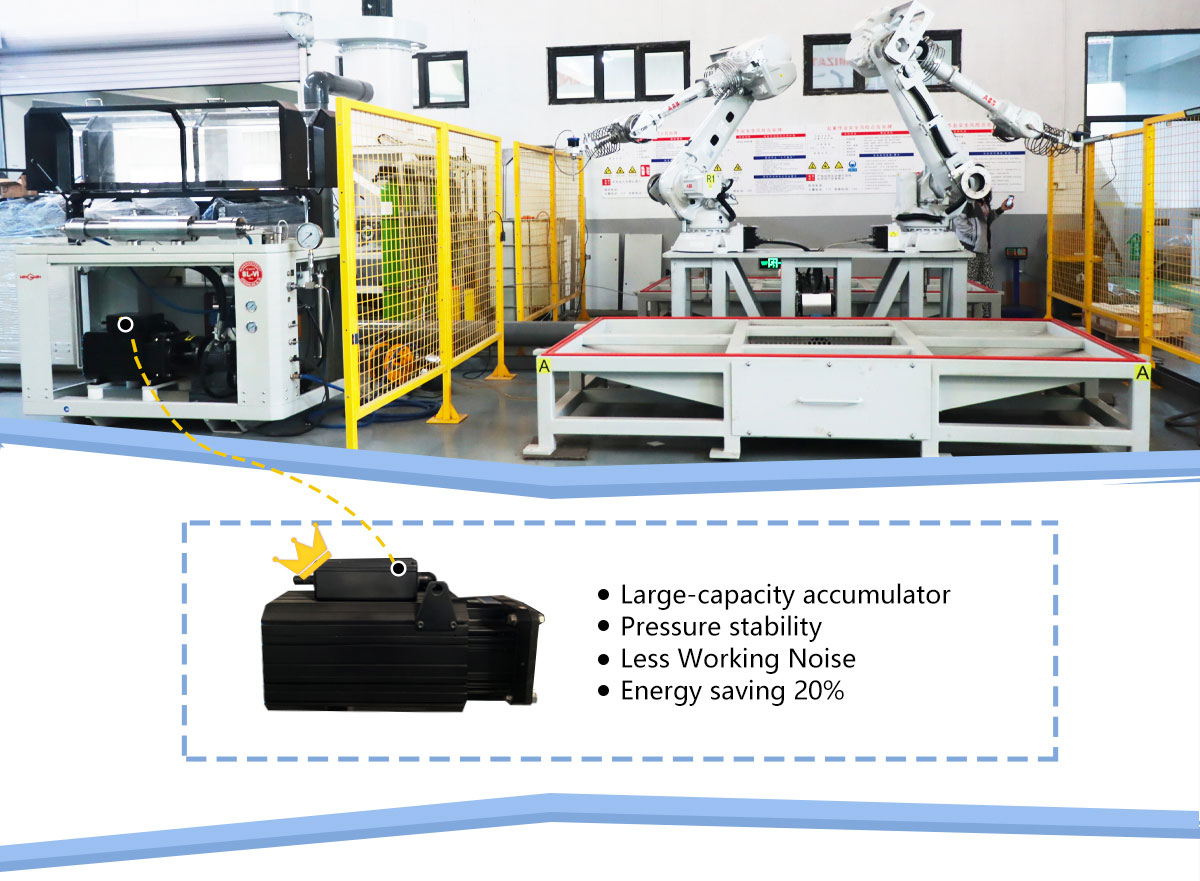

3.8L/min water flow, which can drive 1-3 robots at the same time.
Servo motor can save 30% cost.
The intensfieri pump spare parts are universal.
Brand | WIN-WIN | Model | SL-VI 50HP |
Name | Water jet servo motor pump | Temperature | 5-40°C |
Working pressure | 420Mpa | Driving mode | Servo motor |
Voltage | 380V | Application | Water jet cutting system |
Attenuator capacity | 1L | Rated power | 50HP |
Maximum water flow | 3.8L/min | Continuous working pressure | 320Mpa-380Mpa |
Tank volume | 150L | Number of orifices | 3(0.17mm） |
Weight | 1.5T | Size (L * w * h) | 2.2m*1.4m*1.6m |
SCREAMLINE SL-VI series pumps contain four different powers from 22KW to 75KW. At the same time, each model is distinguished by standard type and servo type. Application of our servo pump can get up to 4136bar working pressure. In some places, such high pressure is not necessary. SCREAMLINE SL-VI series standard type can provide up to 3800bar working pressure to cut materials.
The newly designed end bell hard sealing technology of the ultra-high pressure intensifier has been popularized in all our SCREAMLINE SL-VI series pumps. It has a compact design and can guarantee a pressure of thousands of bar by tightening the check valve at the end of each cylinder with a 48Nm torque. Another M10-8.8 stud can also be tightened with the same torque. For more information, you can view the “SCREAMLINE SL-VI Series Pumps” catalog.
