Sealing Head SP-71-9

Product Item：SP-71-9

Sealing Head SP-71-9

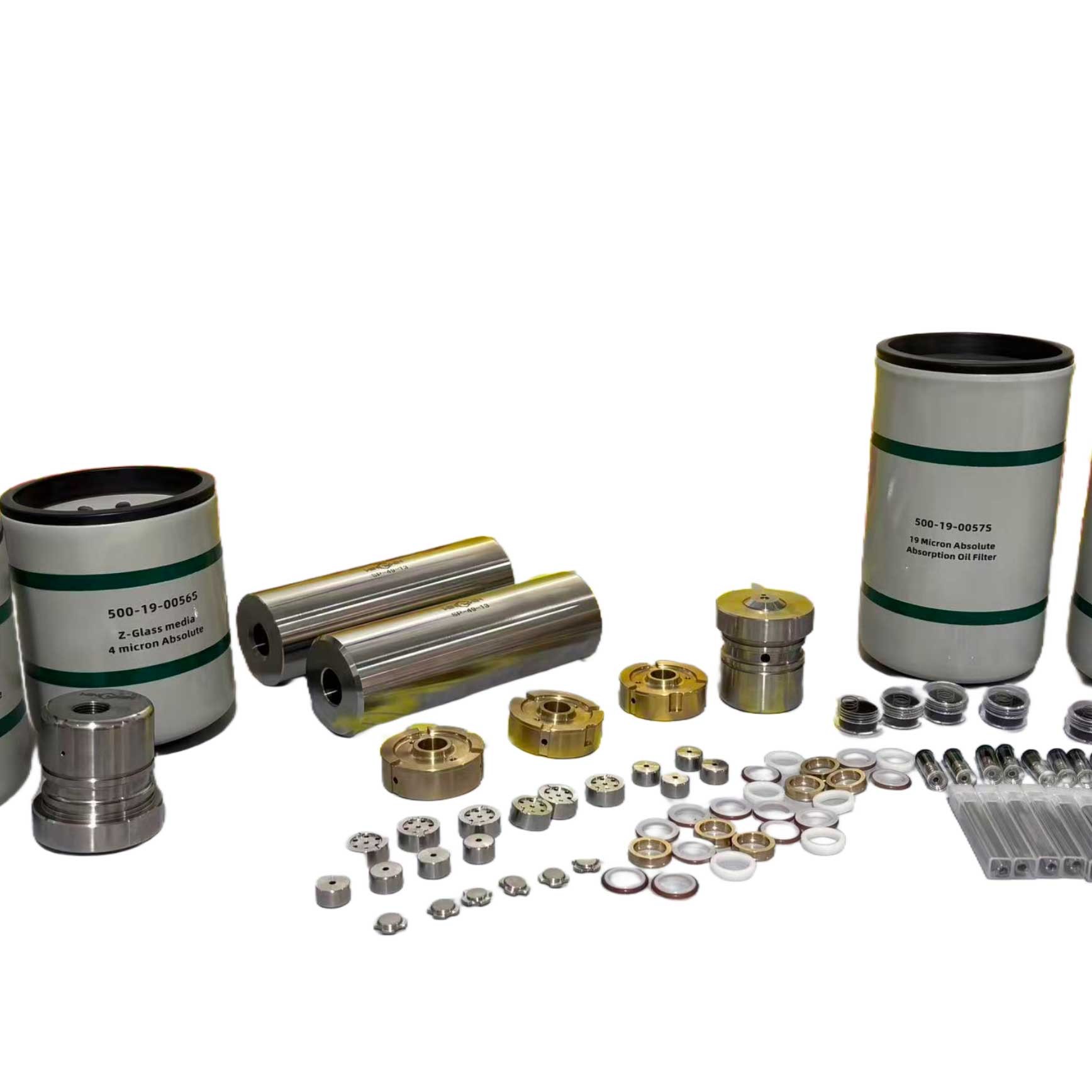

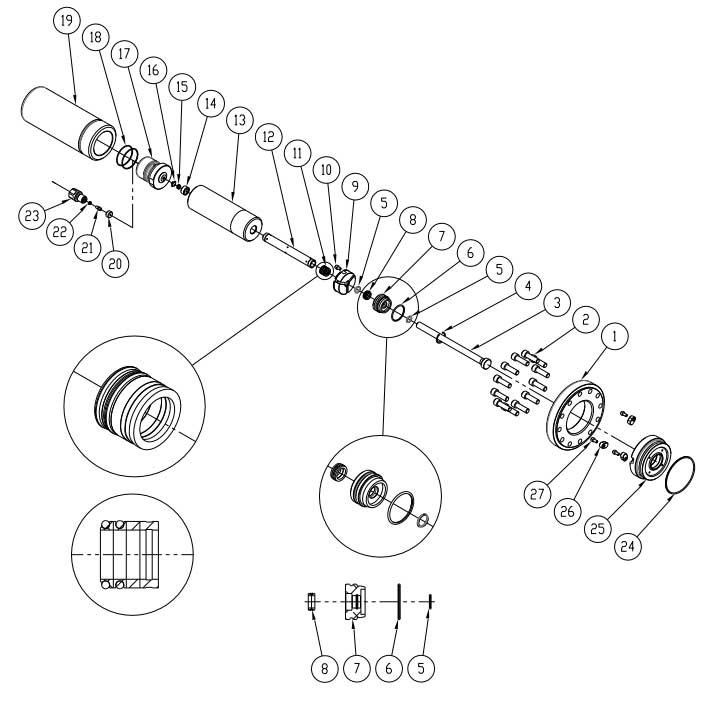

ITEM NO. DESCRIPTION PART NUMBER QTY.
1 Clamp ring SP4-50 1
2 M12x1.25x40 SHCS BLK 110-1-1240 12
3 Plunger SP-46-3 1
4 Internal Circlip 501-1-0010 1
5 O-ring 500-5-0049 2
6 O-ring 500-5-0089 1
7 Seal Housing SP4-45-175 1
8 Wiper Seal SP1042 2
9 Guide Bush SP4-46-175 1
10 M6 x 10 SHCS Black 108-1-0610 1
11 HP Seal Kit SP1060 1
12 Cylinder Liner SP4-69-175 1
13 Cylinder Body SP-49-13 1
14 Check Valve Housing SP-72-7 1
15 LP Check Valve Spring 500-12-0040 1
16

Sealing Head SP-71-9

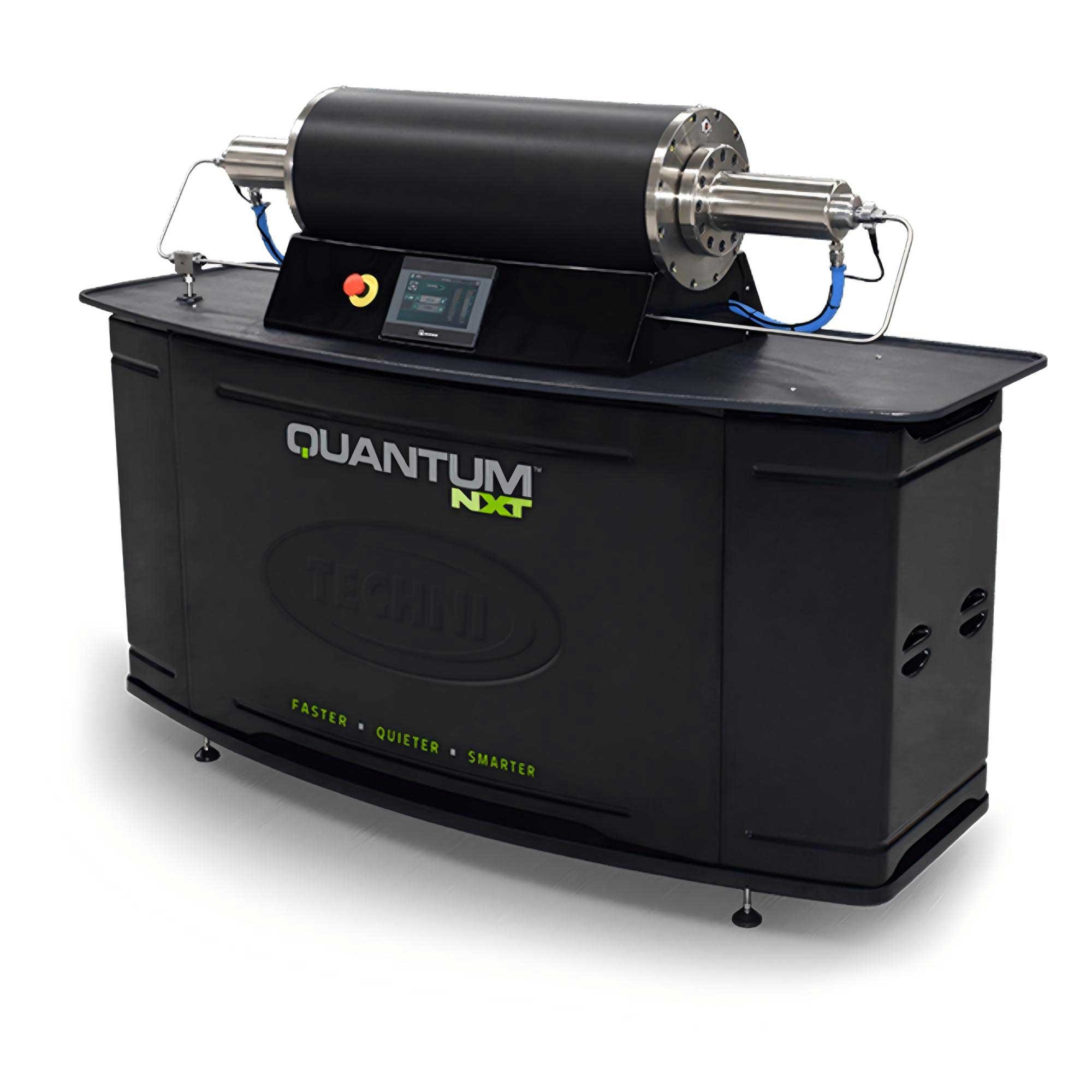

The Sealing Head SP-71-9 is a critical component in a Techni waterjet machine’s intensifier pump assembly. It houses and supports the sealing elements (such as high-pressure seals and O-rings) that prevent water or hydraulic fluid leakage under extreme pressure. Positioned between the pump’s plunger or piston and the cylinder body, the sealing head ensures a tight, reliable barrier when the intensifier generates the high-pressure pulse required for cutting. Its material—usually high-grade, wear-resistant steel or similar alloy—and precision manufacturing are essential: any imperfection can lead to seal failure, loss of pressure, water ingress, or premature wear. Replacing or servicing the Sealing Head SP-71-9 at the proper intervals helps maintain cutting efficiency, safety, and long machine life.

ITEM NO.	Description	Part Number	Quantity
1	Clamp ring	SP4-50	1
2	M12x1.25x40 SHCS BLK	110-1-1240	12
3	Plunger	SP-46-3	1
4	Internal Circlip	501-1-0010	1
5	O-ring	500-5-0049	2
6	O-ring	500-5-0089	1
7	Seal Housing	SP4-45-175	1
8	Wiper Seal	SP1042	2
9	Guide Bush	SP4-46-175	1
10	M6 x 10 SHCS Black	108-1-0610	1
11	HP Seal Kit	SP1060	1
12	Cylinder Liner	SP4-69-175	1
13	Cylinder Body	SP-49-13	1
14	Check Valve Housing	SP-72-7	1
15	LP Check Valve Spring	500-12-0040	1
16	Check Valve Poppet	SP-73-2	1
17	Sealing Head	SP-71-9	1
18	O-Ring- BS033	500-5-0042	2
19	Cylinder Retaining Sleeve	SP2-70-5	1
20	Valve Seat	500-20-0111	1
21	Outlet Poppet	500-20-0113	1
22	Spring	500-20-0112	1
23	Check valve outer body	500-20-0100	1
24	O-ring	500-5-0111	1
25	End Cap Insert	SP4-125	1
26	Clamp	SP4-126	3
27	M6 x 12 SHCS Black	108-1-0612	3
NA	Collar	10078715	1
NA	Gland nut 3/8"	10078129	1
	High Pressure Outlet Poppet Repair Kit	500-20-0110
20	Valve Seat	500-20-0111	1
21	Outlet poppet	500-20-0113	1
22	Spring	500-20-0112	1
	Guide Bush Assembly Kit G4	SP1120
5	O-ring	500-5-0049	2
6	O-ring	500-5-0089	1
7	Seal Housing	SP4-45-175	1
8	Wiper Seal	SP1042	2
9	Guide Bush	SP4-46-175	1
