SP4-125 End Cap Insert

SP4-125 End Cap Insert

Product Item:SP4-125
SP4-125 End Cap Insert

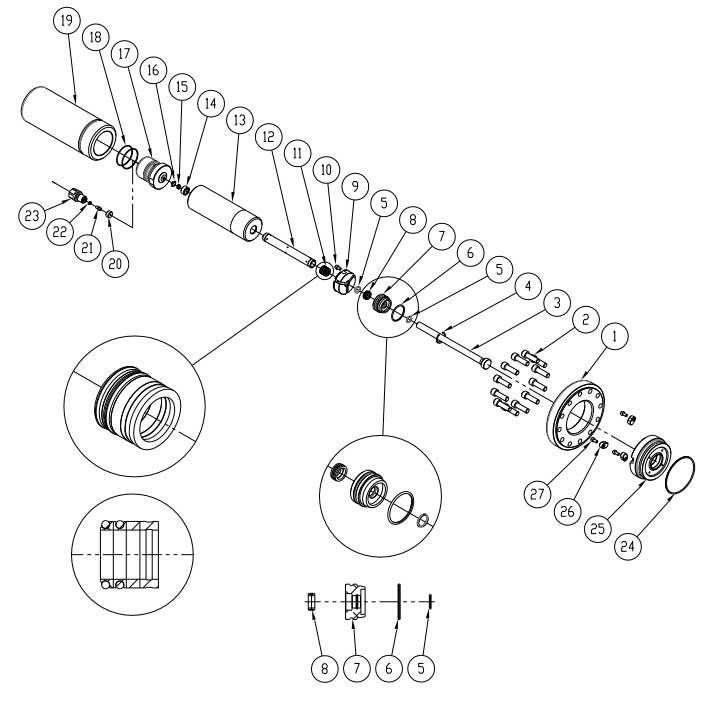

ITEM NO.	Description	Part Number	Quantity
1	Clamp ring	SP4-50	1
2	M12x1.25x40 SHCS BLK	110-1-1240	12
3	Plunger	SP-46-3	1
4	Internal Circlip	501-1-0010	1
5	O-ring	500-5-0049	2
6	O-ring	500-5-0089	1
7	Seal Housing	SP4-45-175	1
8	Wiper Seal	SP1042	2
9	Guide Bush	SP4-46-175	1
10	M6 x 10 SHCS Black	108-1-0610	1
11	HP Seal Kit	SP1060	1
12	Cylinder Liner	SP4-69-175	1
13	Cylinder Body	SP-49-13	1
14	Check Valve Housing	SP-72-7	1
15	LP Check Valve Spring	500-12-0040
  • Product Detail

SP4-125 End Cap Insert

The End Cap Insert SP4-125 is a critical insert component located in the end cap section of Techni waterjet pumps. It functions as a precision mating part between the end cap and adjacent internal pump components (such as valves, seals, or liners), helping to ensure proper sealing and alignment. This insert must withstand high pressure, mechanical stress, and repeated thermal cycling. Made from hardened, wear-resistant material, it contributes to retaining the integrity of the pump’s pressure boundary — preventing leaks, maintaining stable pressure, and reducing wear on adjoining parts. Correct installation (torque, orientation, surface finish) and periodic inspection are essential to ensure long service life and reliable machine performance.


ITEM NO.

Description

Part Number

Quantity

1

Clamp ring

SP4-50

1

2

M12x1.25x40 SHCS BLK

110-1-1240

12

3

Plunger

SP-46-3

1

4

Internal Circlip

501-1-0010

1

5

O-ring

500-5-0049

2

6

O-ring

500-5-0089

1

7

Seal Housing

SP4-45-175

1

8

Wiper Seal

SP1042

2

9

Guide Bush

SP4-46-175

1

10

M6 x 10 SHCS Black

108-1-0610

1

11

HP Seal Kit

SP1060

1

12

Cylinder Liner

SP4-69-175

1

13

Cylinder Body

SP-49-13

1

14

Check Valve Housing

SP-72-7

1

15

LP Check Valve Spring

500-12-0040

1

16

Check Valve Poppet

SP-73-2

1

17

Sealing Head

SP-71-9

1

18

O-Ring- BS033

500-5-0042

2

19

Cylinder Retaining Sleeve

SP2-70-5

1

20

Valve Seat

500-20-0111

1

21

Outlet Poppet

500-20-0113

1

22

Spring

500-20-0112

1

23

Check valve outer body

500-20-0100

1

24

O-ring

500-5-0111

1

25

End Cap Insert

SP4-125

1

26

Clamp

SP4-126

3

27

M6 x 12 SHCS Black

108-1-0612

3

NA

Collar

10078715

1

NA

Gland nut 3/8"

10078129

1


High Pressure Outlet Poppet Repair Kit

500-20-0110


20

Valve Seat

500-20-0111

1

21

Outlet poppet

500-20-0113

1

22

Spring

500-20-0112

1


Guide Bush Assembly Kit G4

SP1120


5

O-ring

500-5-0049

2

6

O-ring

500-5-0089

1

7

Seal Housing

SP4-45-175

1

8

Wiper Seal

SP1042

2

9

Guide Bush

SP4-46-175

1


PREVIOUS:SP4-126 Clamp

NEXT:O-ring 500-5-0111
