Guide Bush Assembly Kit G4 SP1120

Guide Bush Assembly Kit G4 SP1120

Product Item:SP1120
Guide Bush Assembly Kit G4 SP1120

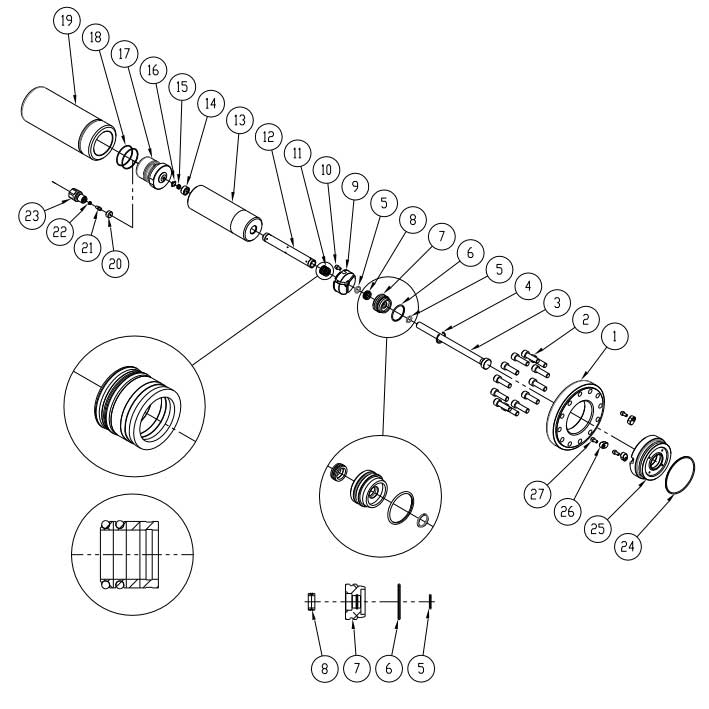

ITEM NO.	Description	Part Number	Quantity
1	Clamp ring	SP4-50	1
2	M12x1.25x40 SHCS BLK	110-1-1240	12
3	Plunger	SP-46-3	1
4	Internal Circlip	501-1-0010	1
5	O-ring	500-5-0049	2
6	O-ring	500-5-0089	1
7	Seal Housing	SP4-45-175	1
8	Wiper Seal	SP1042	2
9	Guide Bush	SP4-46-175	1
10	M6 x 10 SHCS Black	108-1-0610	1
11	HP Seal Kit	SP1060	1
12	Cylinder Liner	SP4-69-175	1
13	Cylinder Body	SP-49-13	1
14	Check Valve Housing	SP-72-7	1
15	LP Check Valve Spring	5
  • Product Detail

Guide Bush Assembly Kit G4 SP1120
The Guide Bush Assembly Kit G4 SP1120 is an essential component in Techni waterjet intensifier pumps, designed to guide and support the plunger during its high-pressure reciprocating motion. By maintaining precise alignment and reducing lateral movement, the guide bush minimizes friction and wear on both the plunger and cylinder liner, ensuring stable sealing performance and prolonging the service life of adjacent parts. Manufactured from durable, wear-resistant materials, this assembly plays a critical role in maintaining pump efficiency, cutting accuracy, and overall machine reliability.


ITEM NO.

Description

Part Number

Quantity

1

Clamp ring

SP4-50

1

2

M12x1.25x40 SHCS BLK

110-1-1240

12

3

Plunger

SP-46-3

1

4

Internal Circlip

501-1-0010

1

5

O-ring

500-5-0049

2

6

O-ring

500-5-0089

1

7

Seal Housing

SP4-45-175

1

8

Wiper Seal

SP1042

2

9

Guide Bush

SP4-46-175

1

10

M6 x 10 SHCS Black

108-1-0610

1

11

HP Seal Kit

SP1060

1

12

Cylinder Liner

SP4-69-175

1

13

Cylinder Body

SP-49-13

1

14

Check Valve Housing

SP-72-7

1

15

LP Check Valve Spring

500-12-0040

1

16

Check Valve Poppet

SP-73-2

1

17

Sealing Head

SP-71-9

1

18

O-Ring- BS033

500-5-0042

2

19

Cylinder Retaining Sleeve

SP2-70-5

1

20

Valve Seat

500-20-0111

1

21

Outlet Poppet

500-20-0113

1

22

Spring

500-20-0112

1

23

Check valve outer body

500-20-0100

1

24

O-ring

500-5-0111

1

25

End Cap Insert

SP4-125

1

26

Clamp

SP4-126

3

27

M6 x 12 SHCS Black

108-1-0612

3

NA

Collar

10078715

1

NA

Gland nut 3/8"

10078129

1


High Pressure Outlet Poppet Repair Kit

500-20-0110


20

Valve Seat

500-20-0111

1

21

Outlet poppet

500-20-0113

1

22

Spring

500-20-0112

1


Guide Bush Assembly Kit G4

SP1120


5

O-ring

500-5-0049

2

6

O-ring

500-5-0089

1

7

Seal Housing

SP4-45-175

1

8

Wiper Seal

SP1042

2

9

Guide Bush

SP4-46-175

1
