CP022043/844 suction side valve for BFT waterjet

CP022043/844 suction side valve for BFT waterjet

Product Item: CP022043/844
Product Name:BFT waterjet part
Manufacturer: Win Win Waterjet
  • Product Detail

Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available

 CP022043/844 suction side valve for BFT waterjet

The frequency of seal and valve replacement can vary depending on several factors, including the age of the waterjet cutting system, the amount of use it receives, and the operating conditions. However, as a general guideline, it is recommended to replace the seals and valves in the intensifier pump at least once per year or after every 2,000 to 3,000 hours of operation, whichever comes first.

Seals and valves are critical components of the intensifier pump and are responsible for ensuring that the system maintains the required pressure and performance. Over time, seals and valves can become worn or damaged, which can result in leaks, reduced pressure, and other issues with the system.

Regular replacement of seals and valves can help prevent issues with the intensifier pump and ensure that the system is operating at peak performance. In addition to regular replacement, it is important to perform regular maintenance on the waterjet cutting system, including changing filters, inspecting hoses and fittings, and performing other routine maintenance tasks as recommended by the manufacturer.

If you notice any signs of problems with the seals or valves, such as leaks or reduced pressure, it is important to have the system inspected and repaired as soon as possible to prevent further damage and ensure proper cutting performance. Working with an experienced and knowledgeable technician can help ensure that the waterjet cutting system is properly maintained and any issues are addressed promptly and effectively.

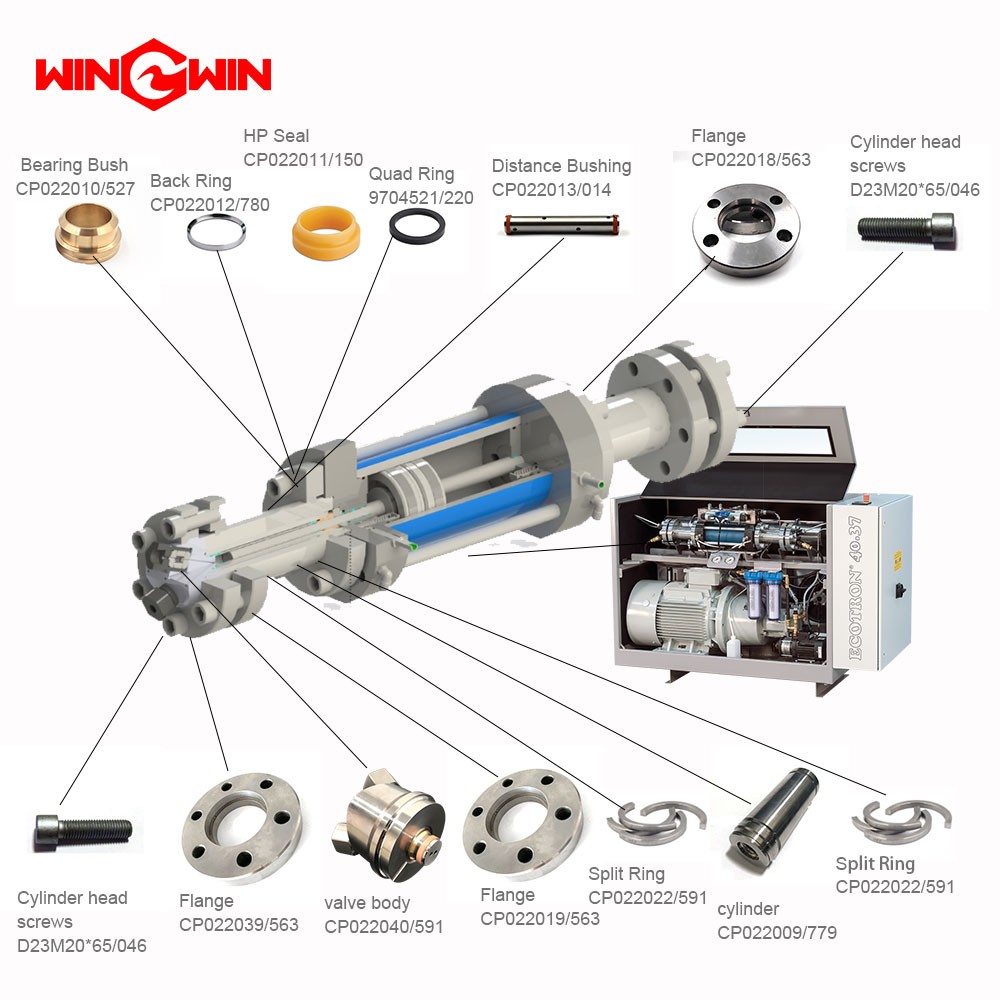

CP022002/190Cylinder
1200402piston complete
XK121/220Piston sealing
XF56/220Wear ring
CP022066/220Plunger complete
CP022057/075Clamp ring
HT022044/103Retaining ring
034858/220O-ring backring 97
XST17/220Rod sealing 22,0 x 32,7 x 4,2 mm
XST17/220Rod sealing 22,0 x 32,7 x 4,2 mm
XF29/220Rod wear ring 22x27x5,6 mm
D23M20360/046Cylinder head screw
CP022017/172connection flange
CP022016/172connection flange
CP022021/593Thread ring
HT022004/473Piston
CP020030/562Bushing
CP020031/473Guiding
CP020032/562Supporting ring
CP020033/255helical spring
CP020034/255helical spring
CP020034/255Helical spring
S24B20/103Snap ring
xn5/220initiator
XST9/220PLUG
CP022009/779High pressure cylinder
CP022010/527Bearing bush
CP022011/150Sealing
CP022012/780Back ring
9704521/220Quadring
CP022013/014Distance bushing
CP022040/591Valve body
CP022015/527Back ring
XF35/220Rod wear ring
CP022022/591SPLIT RING
CP022018/563Flange
CP022019/563Flange
CP022039/563Flange
D23M20*65/046Cylinder head screw
CP022047/844Pressure valve
CP022019/844suction valve
MA160818/220swivel male elbow
OR0759017/151o-ring75.92*1.78
