CP022002/190 cylinder for BFT waterjet

CP022002/190 cylinder for BFT waterjet

Product Item:CP022002/190
Product Name:BFT waterjet part
Manufacturer: Win Win Waterjet
  • Product Detail

Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available

CP022002/190 cylinder for BFT waterjet

The lifespan of a hydraulic cylinder in a waterjet cutting system can vary depending on several factors, including the quality of the cylinder, the operating conditions, and the maintenance and care of the waterjet cutting system. However, as a general guideline, hydraulic cylinders in waterjet cutting systems typically last between 5,000 and 10,000 hours of operation.

Hydraulic cylinders are critical components of the waterjet cutting system and are responsible for providing the force that moves the cutting head and controls the cutting process. Over time, hydraulic cylinders can become worn or damaged, which can result in reduced cutting performance, leaks, or even system failure.

Regular maintenance and inspection of the hydraulic cylinders are an important part of preventive maintenance for the waterjet cutting system and can help prevent issues with the cylinders and other components of the system. It is important to follow the manufacturer's recommendations for maintenance and perform regular inspections to identify any potential issues before they cause damage to the system.

If you notice any signs of issues with the hydraulic cylinders, such as leaks or reduced performance, it is important to have the system inspected and the cylinders repaired or replaced as soon as possible to prevent further damage and ensure proper cutting performance. Working with an experienced and knowledgeable technician can help identify the cause of the hydraulic cylinder issues and recommend the appropriate course of action to address them.

Regular replacement of hydraulic cylinders is an important part of preventive maintenance for the waterjet cutting system and can help prevent issues with the cylinders and other components of the system.It is also important to perform regular maintenance on the waterjet cutting system, including changing filters, inspecting hoses and fittings, and performing other routine maintenance tasks as recommended by the manufacturer. By taking proactive steps to prevent damage to the hydraulic cylinders, you can help extend the life of the waterjet cutting system and ensure that it is operating at peak performance.

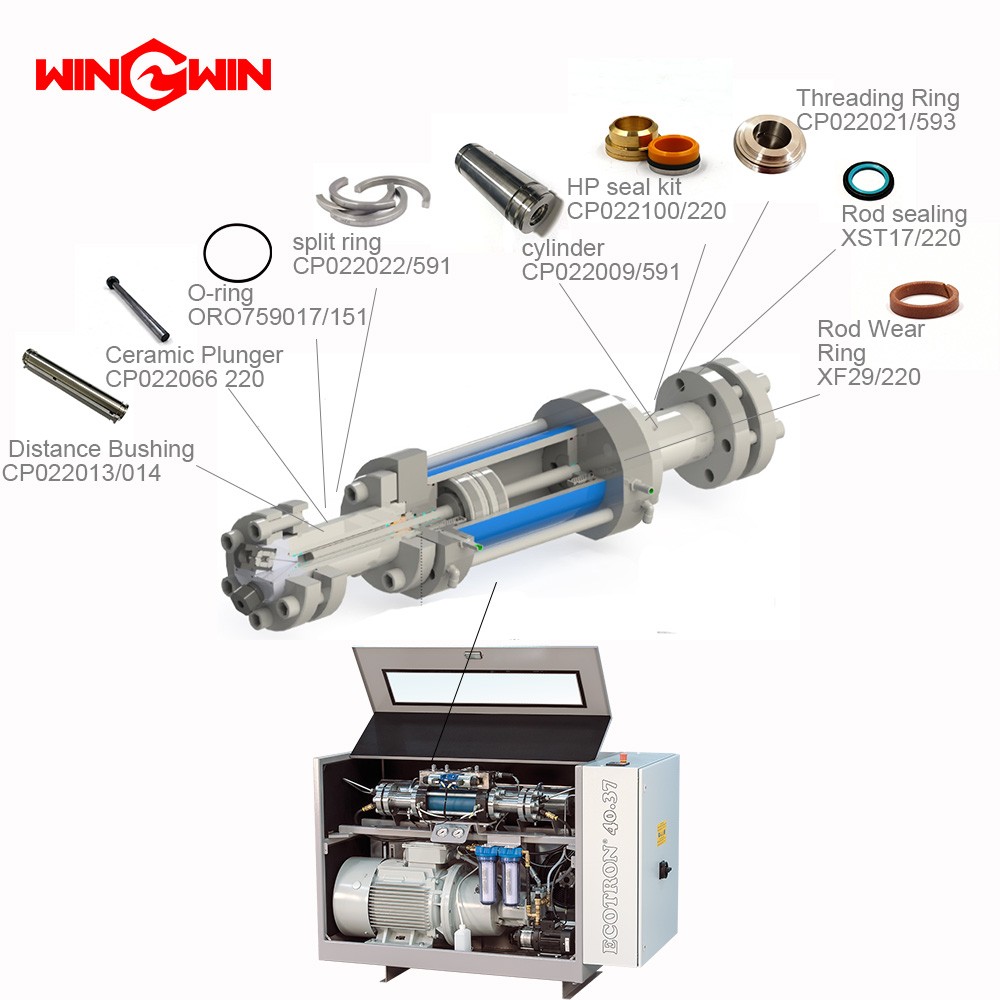

CP022002/190Cylinder
1200402piston complete
XK121/220Piston sealing
XF56/220Wear ring
CP022066/220Plunger complete
CP022057/075Clamp ring
HT022044/103Retaining ring
034858/220O-ring backring 97
XST17/220Rod sealing 22,0 x 32,7 x 4,2 mm
XST17/220Rod sealing 22,0 x 32,7 x 4,2 mm
XF29/220Rod wear ring 22x27x5,6 mm
D23M20360/046Cylinder head screw
CP022017/172connection flange
CP022016/172connection flange
CP022021/593Thread ring
HT022004/473Piston
CP020030/562Bushing
CP020031/473Guiding
CP020032/562Supporting ring
CP020033/255helical spring
CP020034/255helical spring
CP020034/255Helical spring
S24B20/103Snap ring
xn5/220initiator
XST9/220PLUG
CP022009/779High pressure cylinder
CP022010/527Bearing bush
CP022011/150Sealing
CP022012/780Back ring
9704521/220Quadring
CP022013/014Distance bushing
CP022040/591Valve body
CP022015/527Back ring
XF35/220Rod wear ring
CP022022/591SPLIT RING
CP022018/563Flange
CP022019/563Flange
CP022039/563Flange
D23M20*65/046Cylinder head screw
CP022047/844Pressure valve
CP022019/844suction valve
MA160818/220swivel male elbow
OR0759017/151o-ring75.92*1.78
