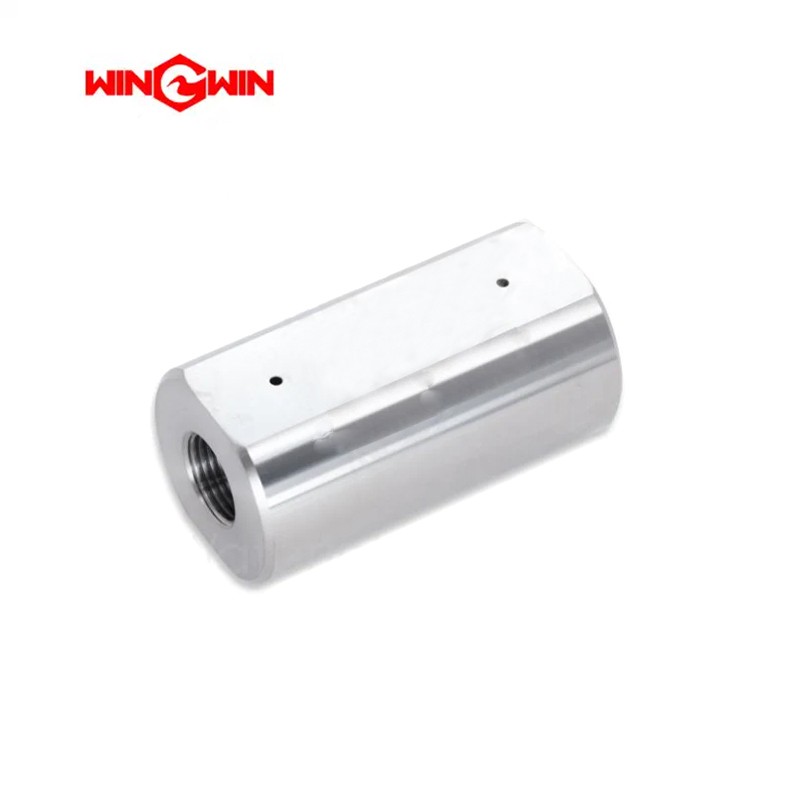

CJ300988 Waterjet Pump Filter Body

Product Item：

05114137-Inline Water/05114129-Filter Body/05114152-Retainer, Filter Element/05110531-Filter Element/05114145-Adapter Gland/10078426-HP Collar/10078459-HP Gland
CJ200988-Inline Water Filter, .38/10078715-HP Collar/10078129-HP Gland/CJ300988-Filter Body/CJ400988-Adapter Gland/SKJA266-Filter Element/SKJA286-Retainer, Filter Element/SKJA287-Bayonet Nipple
BF103473-Inline Water Filter, .56/AF413972-HP Gland, Outlet/AF303473-Seal Head, Outlet/AF503473-Filter Element/BF203473-Filter Body/AF913972-HP

HP Inline Water Filter, .25.jpg HP Inline Water Filter, .38.jpg HP Inline Water Filter, .56.jpg

Table 12-42 High Pressure Water Filter Assemblies
Item	Part Number	Description	Quantity
	05114137	Inline Water
1	05114129	Filter Body	1
2	05114152	Retainer, Filter Element	1
3	05110531	Filter Element	1
4	05114145	Adapter Gland	1
5	10078426	HP Collar	2
6	10078459	HP Gland	2
	CJ200988	Inline Water Filter, .38
1	10078715	HP Collar	2
2	10078129	HP Gland	2
3	CJ300988	Filter Body	1
4	CJ400988	Adapter Gland	1
5	SKJA266	Filter Element	1
6	SKJA286	Retainer, Filter Element	1
7	SKJA287	Bayonet Nipple	1
	BF103473	Inline Water Filter, .56
1	AF413972	HP Gland, Outlet	1
2	AF303473	Seal Head, Outlet	1
3	AF503473	Filter Element	1
4	BF203473	Filter Body	1
5	AF913972	HP Gland, Inlet	1
6	10074599	O-Ring, .38 x .50 x .06	1
7	AF403473	Seal Head, Inlet	1

High-pressure water filter assemblies in waterjet systems serve to remove impurities and debris from the water before it reaches the cutting head. Key components and functions of these filter assemblies include:

1. Filter Housing: A robust casing that holds the filter elements in place and withstands high-pressure conditions.

2. Filter Elements: These are the core components responsible for trapping and removing contaminants, such as sediment, dirt, and other particles, from the water flow. They come in various materials and micron ratings based on the level of filtration required.

3. Inlet/Outlet Connections: Connectors for the water supply lines that direct the flow of water through the filter assembly.

4. Pressure Gauges: Gauges to monitor the pressure before and after filtration, indicating the differential pressure across the filter elements. This helps determine when the filters require cleaning or replacement.

5. Bypass Valve (Optional): Some assemblies may include a bypass valve that redirects water flow when the filters are being serviced or replaced, ensuring continuous operation.
