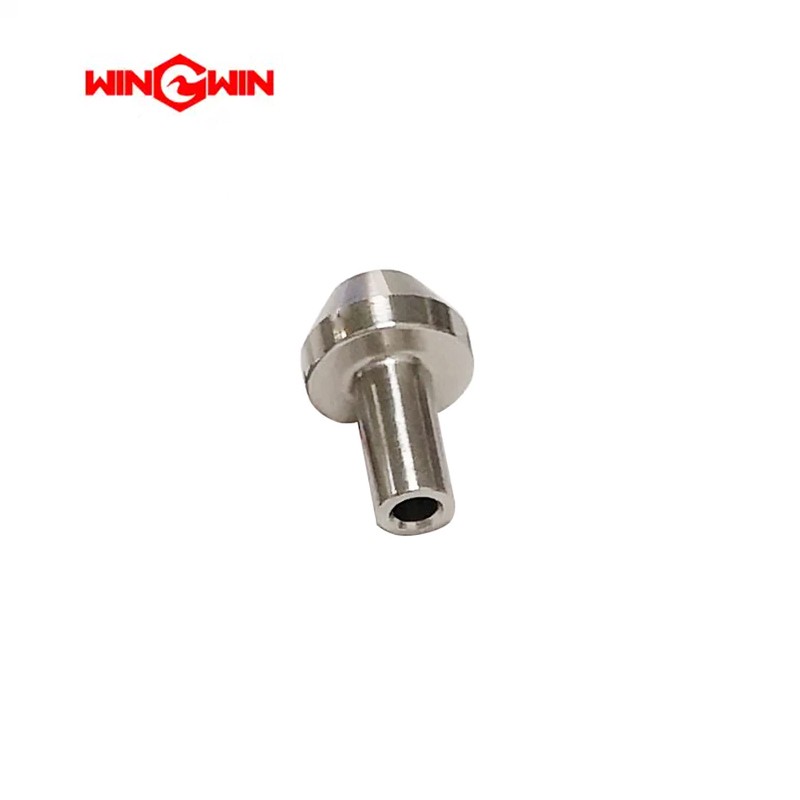

A2260024 Standard Sapphire Orifice 0.024" (0.610 mm)

A2260024 Standard Sapphire Orifice 0.024" (0.610 mm)

Product Item:
A2260001:0.001" (0.025 mm)/A2260002:0.002" (0.051 mm)
A2260003:0.003" (0.076 mm)/A2260004:0.004" (0.102 mm)
A2260005:0.005" (0.127 mm)/A2260006:0.006" (0.152 mm)
A2260007:0.007" (0.178 mm)/A2260008:0.008" (0.203 mm)
A2260009:0.009" (0.229 mm)/A2260010:0.010" (0.254 mm)
A2260011:0.011" (0.279 mm)/A2260012:0.012" (0.305 mm)
A2260013:0.013" (0.330 mm)/A2260014:0.014" (0.356 mm)
A2260015:0.015" (0.381 mm)/A2260016:0.016" (0.406 mm)
A2260018:0.018" (0.457 mm)/A2260019:0.019" (0.483 mm)
A2260
  • Product Detail

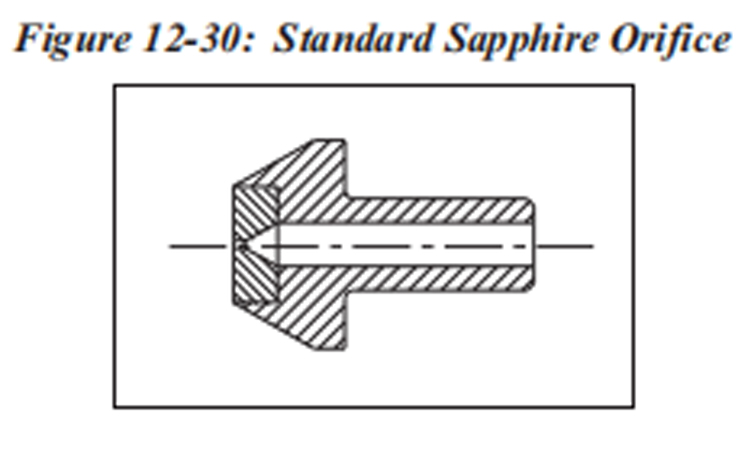

Standard Sapphire Orifice.jpg

Table 12-40 Standard Sapphire Orifice

Part Number

Description

A2260001

0.001" (0.025 mm)

A2260002

0.002" (0.051 mm)

A2260003

0.003" (0.076 mm)

A2260004

0.004" (0.102 mm)

A2260005

0.005" (0.127 mm)

A2260006

0.006" (0.152 mm)

A2260007

0.007" (0.178 mm)

A2260008

0.008" (0.203 mm)

A2260009

0.009" (0.229 mm)

A2260010

0.010" (0.254 mm)

A2260011

0.011" (0.279 mm)

A2260012

0.012" (0.305 mm)

A2260013

0.013" (0.330 mm)

A2260014

0.014" (0.356 mm)

A2260015

0.015" (0.381 mm)

A2260016

0.016" (0.406 mm)

A2260018

0.018" (0.457 mm)

A2260019

0.019" (0.483 mm)

A2260020

0.020" (0.508 mm)

A2260021

0.021" (0.533 mm)

A2260022

0.022" (0.559 mm)

A2260024

0.024" (0.610 mm)

A2260028

0.028" (0.711 mm)

A2260032

0.032" (0.813 mm)

A standard sapphire orifice in waterjet cutting refers to a component that serves a vital role in controlling the flow and direction of the high-pressure water jet during the cutting process. Key features of a standard sapphire orifice include:

1. Material Composition:Standard sapphire orifice Made from synthetic sapphire, known for its durability, hardness, and resistance to wear caused by high-pressure water and abrasive materials.

2. Precision Opening: The orifice has a precisely engineered small opening that shapes and controls the waterjet stream's flow, ensuring accuracy and control during cutting operations.

3. Consistent Cutting Performance: Sapphire orifices provide reliable and consistent cutting performance due to their hardness and resistance to erosion, maintaining a stable stream over prolonged use.

4. Compatibility: Designed to fit specific waterjet cutting systems and nozzle configurations, ensuring proper installation and functionality.

5. Abrasion Resistance: Sapphire orifices are capable of withstanding the abrasive wear caused by the high-velocity water and abrasive particles, extending their operational lifespan.

6. Critical Component: The orifice's design and quality significantly influence the precision, speed, and efficiency of the cutting process, making it a critical component in waterjet systems.

These orifices are essential in controlling and shaping the high-pressure water stream, ensuring precise and consistent cutting performance in various materials across different industries.
