72175997 hydraulic cylinder head for 90000psi waterjet pump
Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available

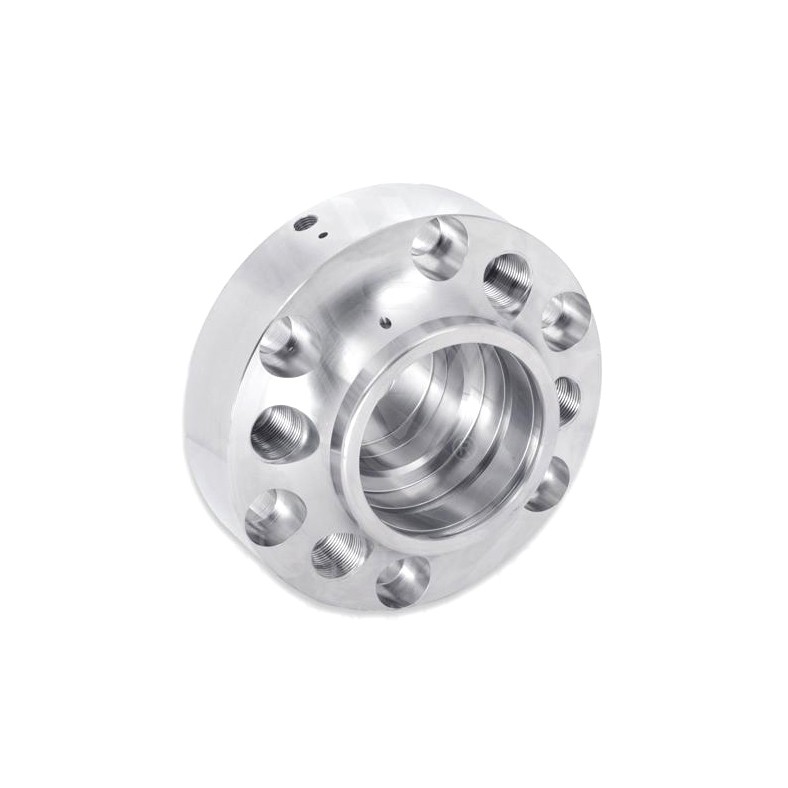

72175997 Hydraulic Cylinder Head is a component used in Ultra High Pressure (UHP) waterjet booster pumps that operate at pressures up to 90,000 psi. The hydraulic cylinder head is an important part of the booster pump, which helps convert hydraulic energy into high-pressure water.
The exact design and function of the hydraulic cylinder head may vary depending on the make and model of the booster pump, but it typically includes ports for hydraulic fluid, a piston or plunger to create pressure, and seals to prevent leaks. The hydraulic cylinder head works in conjunction with other components in the booster pump, such as the hydraulic cylinder and check valves, to generate high-pressure water for cutting, cleaning, and other applications.
If you would like to purchase this specific part, please contact win win waterjet, we are a professional manufacturer of waterjet cutting equipment with 20 years of experience in the industry and can customize upon request. Specializing in the production of high-end water cutting equipment and accessories.
Item | Part Number | Description | Item | Part Number | Description |
1 | 5146592 | Gasket, Topworks Support | 14 | 72162253 | Plunger |
2 | 20476377 | Support, Topworks | 15 | 5130091 | Hydraulic Seal Cartridge |
3 | 10118206 | O-Ring, 1.31×1.56× .13 | 16 | 72175989 | Bushing Retainer Flange |
4 | 5144514 | Hydraulic Cylinder | 17 | 72158494 | UHP Seal Assembly |
5 | 5098991 | Socket Head Screw, 3/8-16×3-3/4 | 18 | 72166738 | UHP Cylinder |
6 | 95688743 | Lock Washer, .38 | 19 | 72163802 | Liner |
7 | 72101190 | Piston Assembly | 20 | 20474325 | Stud, 1-1/8-12×18.31 |
8 | 10074771 | O-Ring, 5.25×5.50× .13 | 21 | 72170157 | Sealing Head Assembly |
9 | 5120092 | Backup Ring, 5.25×5.50× .13 | 22 | 72178493 | Flange Assembly |
10 | 72175997 | Hydraulic Cylinder Head | 23 | 20464590 | Flat Washer, 1.13 |
11 | 5097886 | Socket Head Screw, 3/4-16×2-1/4 | 24 | 20461761 | Hex Nut, 1-1/8-12 |
12 | 5144183 | Spacer Assembly, Proximity Switch | 25 | 20489339 | Adapter, JIC/Pipe, 50× .38 |
5144191 | O-Ring, .69× .88× .09 | 26 | 72176756 | O-Ring, 3.88×4.25× .19 | |
13 | 72141569 | Kit, Proximity Switch | 95119012 | Socket Head Screw, 1/4-20×1 | |
72134224 | Proximity Switch |
