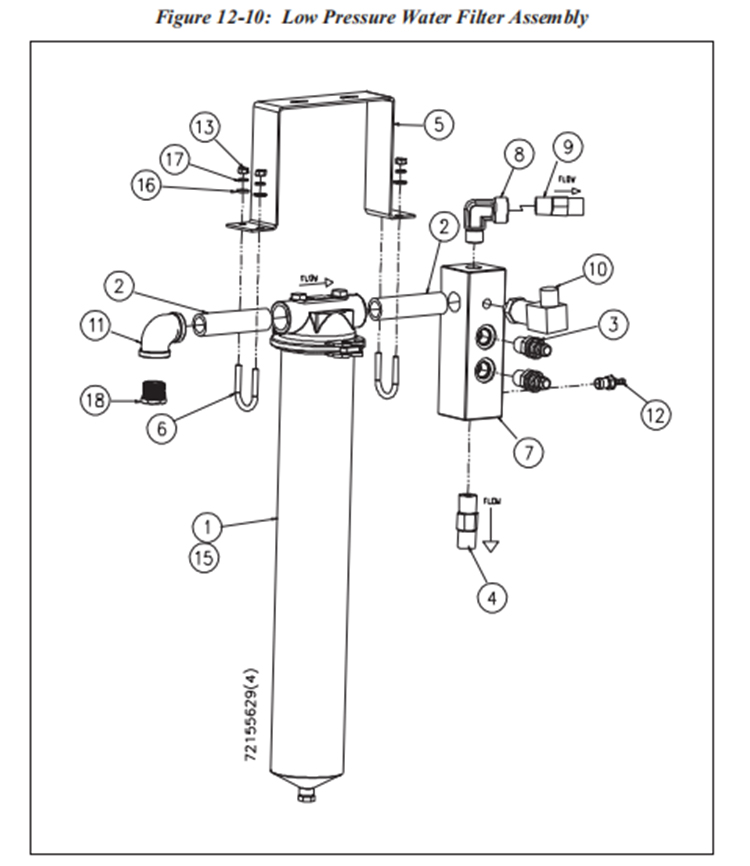

Table 12-10 Low Pressure Water Filter Assembly 72155629 | |||
Item | Part Number | Description | Quantity |
1 | 72155272 | Filter Housing Assembly | 1 |
2 | 49838386 | Pipe Nipple, .75 x 4.0 | 2 |
3 | 49833882 | Adapter, Hose/ORB, .50 x .50 | 2 |
4 | 05072798 | Relief Valve Assembly | 1 |
5 | 72152951 | Bracket, Filter Mount | 1 |
6 | 10083384 | U-Bolt, .75 | 2 |
7 | 20413848 | Manifold, LP Water Outlet | 1 |
8 | 10119253 | Elbow- Pipe, .50 x .50 | 1 |
9 | 05135652 | Check Valve Assembly | 1 |

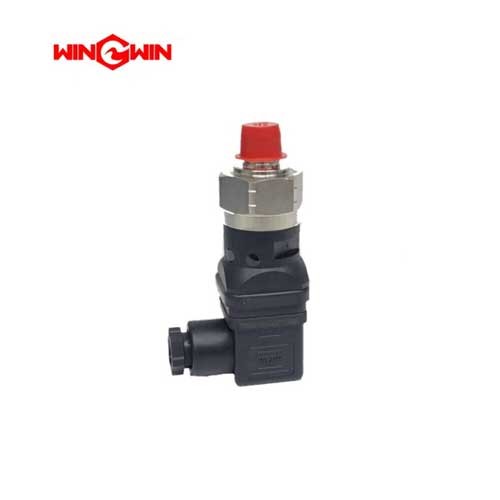

10 | 72131267 | Pressure Switch, 100 psi | 1 |
11 | 10187730 | Elbow, Pipe, .75 x .75 | 1 |
12 | 80087828 | Adapter, Hose/Pipe, .25 x .25 | 1 |
13 | 20442221 | Hex Nut, 1/4-20 | 4 |
15 | 72125264 | Filter Element | 1 |
16 | 95391322 | Flat Washer, .25 | 4 |
17 | 95838314 | Lock Washer, .25 | 4 |
18 | 10103448 | Bushing, Pipe, .75 x .50 | 1 |
A low-pressure water filter assembly is a system designed to filter water at relatively lower pressures, commonly used in various applications where water needs to be purified or filtered before use. These systems are essential for maintaining water quality, removing impurities, and protecting downstream equipment or processes.
Key components of a typical low-pressure water filter assembly include:
1. Filter Housing: This is the casing or container that holds the filtration elements. It's designed to withstand the pressure of the water passing through and to contain the filter media securely.
2. Filter Cartridge or Media: The filter cartridge or media is the core element responsible for removing impurities, particles, sediments, or contaminants from the water as it passes through. The media can vary and might include activated carbon, ceramic, sediment filters, or other specialized materials based on the filtration needs.
3. Inlet and Outlet Connections: These are the entry and exit points for the water into and out of the filter assembly, allowing water to flow through the filtration system.
4. Pressure Gauges: Some filter assemblies include pressure gauges to monitor the water pressure before and after filtration, indicating when the filter needs maintenance or replacement.
5. Valves and Controls: These control the flow of water into and out of the filter assembly, allowing for maintenance, bypassing the filter, or shutting off water flow when needed.
Low-pressure water filter assemblies are commonly used in various applications, including residential water filtration systems, food and beverage processing, irrigation systems, and some industrial settings where lower pressure water filtration is required. These assemblies come in different sizes, designs, and filtration capacities to accommodate specific flow rates and filtration requirements for different applications.
