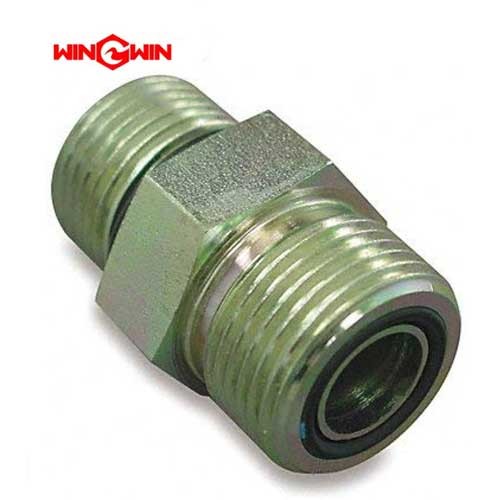

49833882 Adapter, Hose/ORB, .50 x .50

49833882 Adapter, Hose/ORB, .50 x .50

Product Item:
72155272-Filter Housing Assembly
49838386-Pipe Nipple, .75 x 4.0
49833882-Adapter, Hose/ORB, .50 x .50
05072798-Relief Valve Assembly
72152951-Bracket, Filter Mount
10083384-U-Bolt, .75
20413848-Manifold, LP Water Outlet
10119253-Elbow- Pipe, .50 x .50
05135652-Check Valve Assembly
72131267-Pressure Switch, 100 psi
10187730-Elbow, Pipe, .75 x .75
80087828-Adapter, Hose/Pipe, .25 x .25
20442221-Hex Nut, 1/4-20/72125264-Filter Element
95391322-Flat Washer, .25 /95838314-Lock Washer,
  • Product Detail


Table 12-10  Low Pressure Water Filter Assembly 72155629

Item

Part Number

Description

Quantity

1

72155272

Filter Housing Assembly

1

2

49838386

Pipe Nipple, .75 x 4.0

2

3

49833882

Adapter, Hose/ORB, .50 x .50

2

4

05072798

Relief Valve Assembly

1

5

72152951

Bracket, Filter Mount

1

6

10083384

U-Bolt, .75

2

7

20413848

Manifold, LP Water Outlet

1

8

10119253

Elbow- Pipe, .50 x .50

1

9

05135652

Check Valve Assembly

1

10

72131267

Pressure Switch, 100 psi

1

11

10187730

Elbow, Pipe, .75 x .75

1

12

80087828

Adapter, Hose/Pipe, .25 x .25

1

13

20442221

Hex Nut, 1/4-20

4

15

72125264

Filter Element

1

16

95391322

Flat Washer, .25

4

17

95838314

Lock Washer, .25

4

18

10103448

Bushing, Pipe, .75 x .50

1

A low-pressure water filter assembly is a system designed to filter water at relatively lower pressures, commonly used in various applications where water needs to be purified or filtered before use. These systems are essential for maintaining water quality, removing impurities, and protecting downstream equipment or processes.

Key components of a typical low-pressure water filter assembly include:

1.  Filter Housing: This is the casing or container that holds the filtration elements. It's designed to withstand the pressure of the water passing through and to contain the filter media securely.

2.  Filter Cartridge or Media: The filter cartridge or media is the core element responsible for removing impurities, particles, sediments, or contaminants from the water as it passes through. The media can vary and might include activated carbon, ceramic, sediment filters, or other specialized materials based on the filtration needs.

3.  Inlet and Outlet Connections: These are the entry and exit points for the water into and out of the filter assembly, allowing water to flow through the filtration system.

4.  Pressure Gauges: Some filter assemblies include pressure gauges to monitor the water pressure before and after filtration, indicating when the filter needs maintenance or replacement.

5.  Valves and Controls: These control the flow of water into and out of the filter assembly, allowing for maintenance, bypassing the filter, or shutting off water flow when needed.

Low-pressure water filter assemblies are commonly used in various applications, including residential water filtration systems, food and beverage processing, irrigation systems, and some industrial settings where lower pressure water filtration is required. These assemblies come in different sizes, designs, and filtration capacities to accommodate specific flow rates and filtration requirements for different applications.
