400041-1 Oil Filter Element for waterjet intensifier pump
Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available
The Oil Filter Element 400041-1 is a component of a waterjet pump that is responsible for filtering the oil used in the pump's hydraulic system. The hydraulic system is a critical component of the waterjet pump and is responsible for controlling the position of the plungers and the pressure of the water.
The function of the oil filter element is to remove contaminants and impurities from the oil that could potentially damage the pump or reduce its efficiency. The oil filter element typically consists of a filter cartridge that is designed to trap particles and debris as the oil flows through it.
The oil filter element works by forcing the oil through the filter cartridge, which traps any particles or debris that are present in the oil. The filtered oil is then sent back into the hydraulic system to lubricate and cool the pump's moving parts.
Over time, the oil filter element can become clogged with debris and particles, reducing its effectiveness and potentially damaging the pump. It is important to regularly inspect and replace the oil filter element to ensure that the pump is operating at peak efficiency.

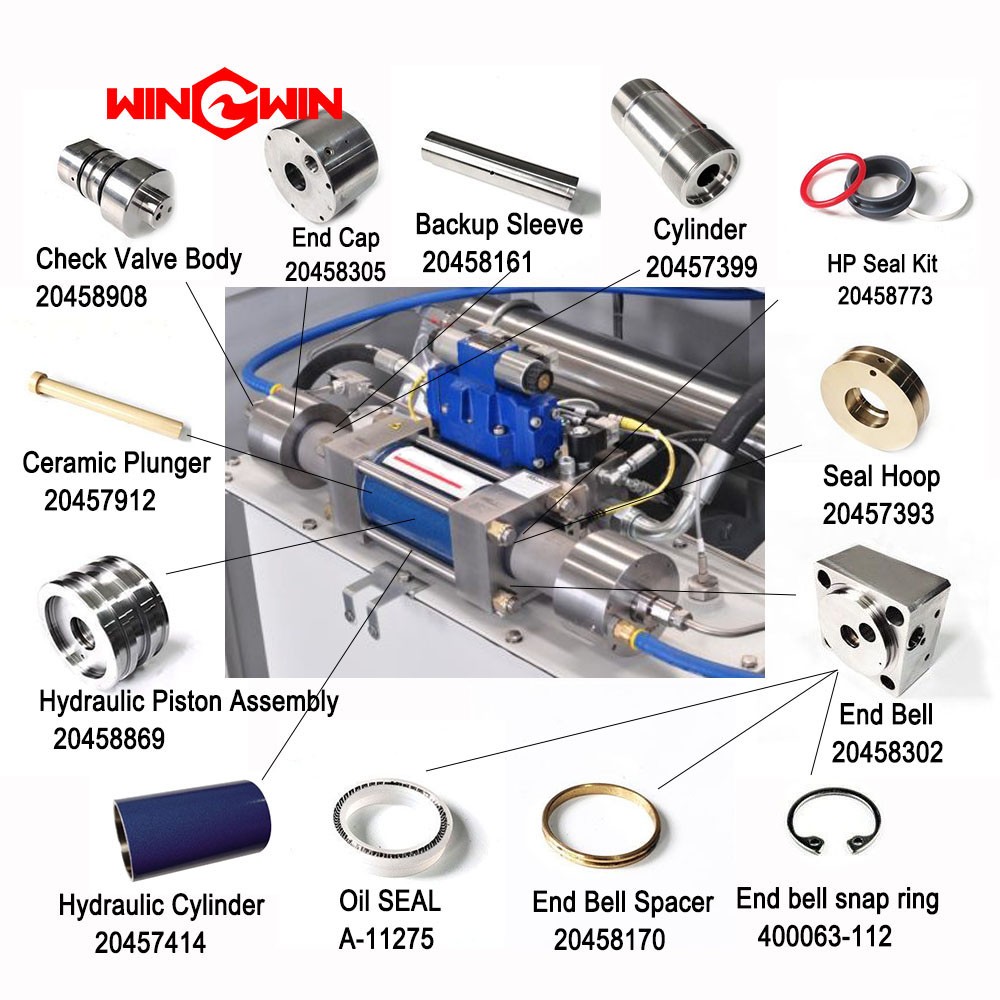

Item | Part Number | Description | Item | Part Number | Description |
1 | 20458305 | End Cap | 12 | 20458062 | Plunger Retainer |
2 | 20457399 | High Pressure Cylinder | 13 | 20458869 | Hydraulic Piston Assembly |
3 | 20458299 | End Bell, LH | 20457966 | Hydraulic Piston | |
4 | 20458302 | End Bell, RH | 20458821 | Rebuild Kit, Piston Rings | |
5 | 20458191 | Tie Rod | 20460216 | Seal | |
6 | 20460489 | Hex Nut | 14 | 20458170 | Spacer, Hydraulic Seal |
7 | 20457414 | Hydraulic Cylinder | 15 | 20458908 | Sealing Head Assembly |
8 | 20458161 | Backup Sleeve | 16 | 20460252 | Snap Ring |
9 | 20458773 | Rebuild Kit, High Pressure Seal Assembly | 17 | 05202930 | Snap Ring |
20457990 | Seal Buttress | 18 | 20457267 | Inlet Water Nipple | |
20458113 | High Pressure Seal | 20457159 | Adapter, Quick Disconnect | ||
20457393 | Seal Hoop | 20459025 | O-Ring, Quick Disconnect | ||
20460108 | O-Ring | 11 | 20457912 | Plunger | |
10 | 20458797 | Rebuild Kit, Hydraulic Seal Assembly |
