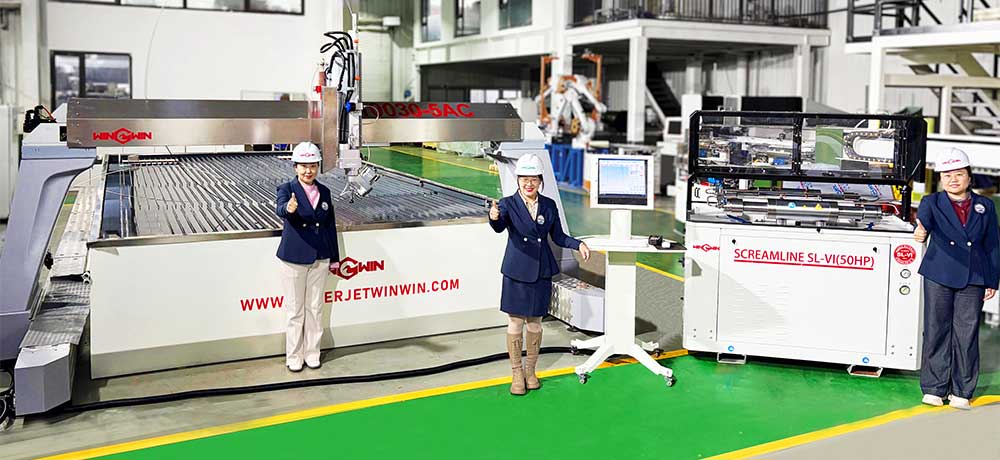

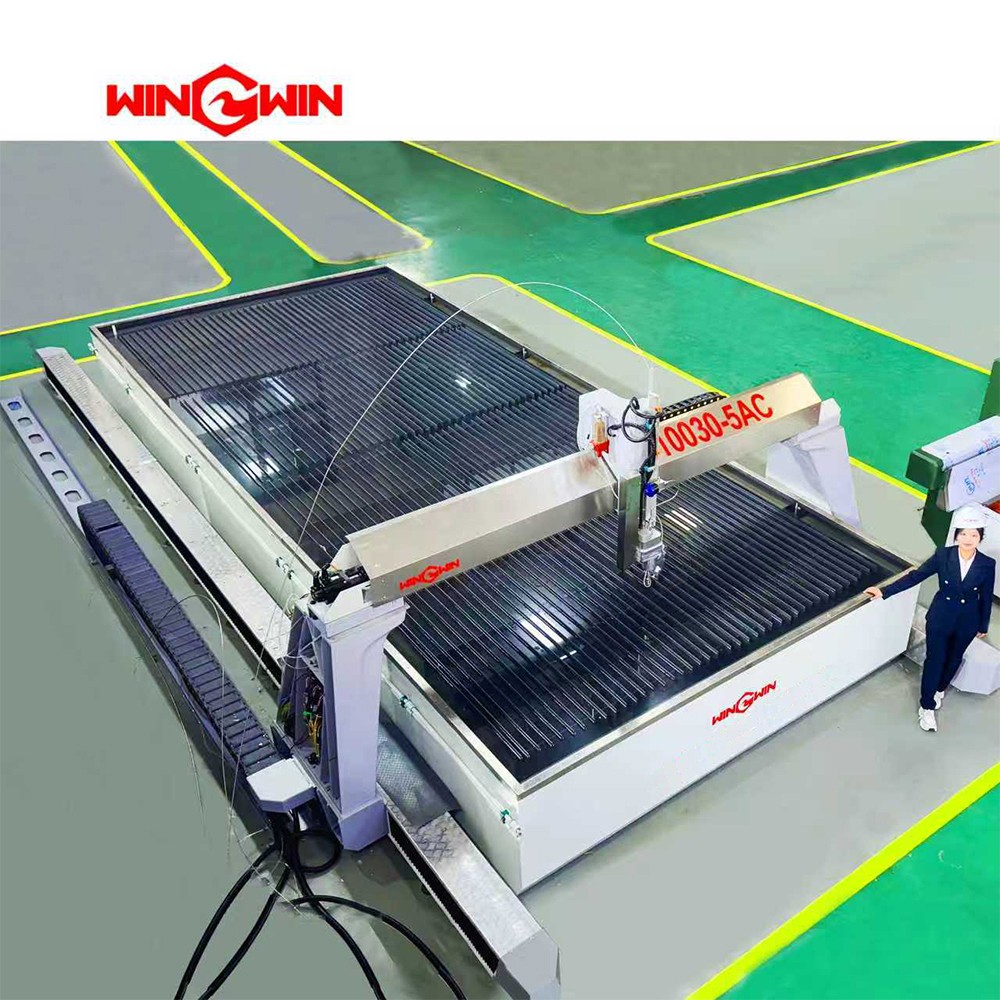

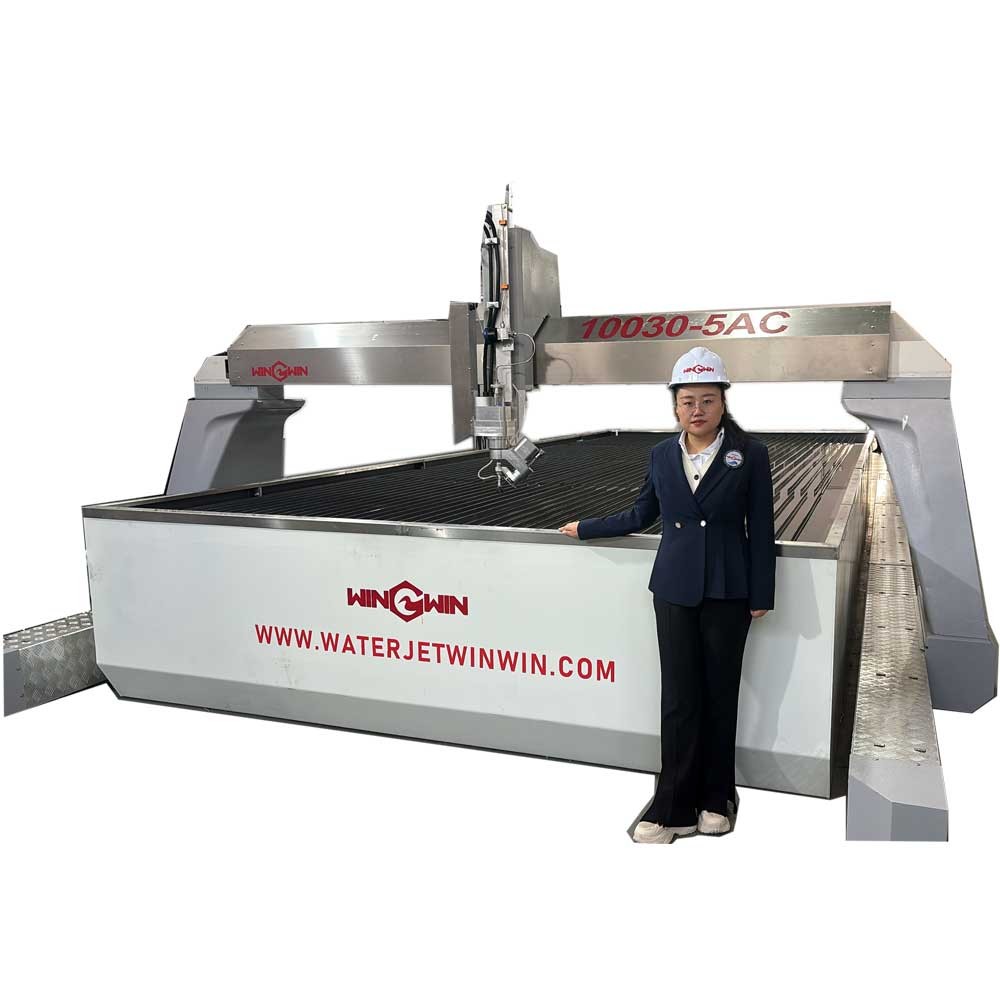

3x10 meter split-type ground rail waterjet cutting system
| 1. Cutting Table | 30100AC 5A |
| 2. CNC Controlling Software | WEIHONG |
| 3. Intensifier Pump | WW 50JET |
| 4. Cooling System | WW 5P |
| 5. Water Softener | WW - 1T |
| 6. Abrasive Feeder Tank | WW - 200L |
Reasonable Design is Foundation |
| 1. Unibody Load-Bearing Tank Frame: The internal water tank is housed within this integrated frame, which increases weighing stability by 30%. Its stability is far superior to that of a single-layer sheet metal structure. |
| 2. The periphery of the tank and the outer edges of the table are protected with stainless steel, safeguarding against abrasion damage during the loading and unloading of materials. |
| 3. load-bearing frame with exceptional durability and stability. The dual Y-Axis are constructed from H-shaped steel, which are welded and then annealed before final machining. The X-axis crossbeam is formed from bent and welded steel plates that also undergo annealing. The entire structure is subjected to an aging treatment to relieve internal stresses.This guarantees the machine's immense strength, preventing deformation and ensuring permanent cutting accuracy. |
| 4. All steel parts are grit-blasted, primed with two coats of anti-rust paint, with a custom-colored paint.The protective cover is made entirely of stainless steel, keep the machine as bright as new for 10+ years. |
| 5. The Block structure for support, providing more connection points, ensuring a more stable structure and a longer service life. |

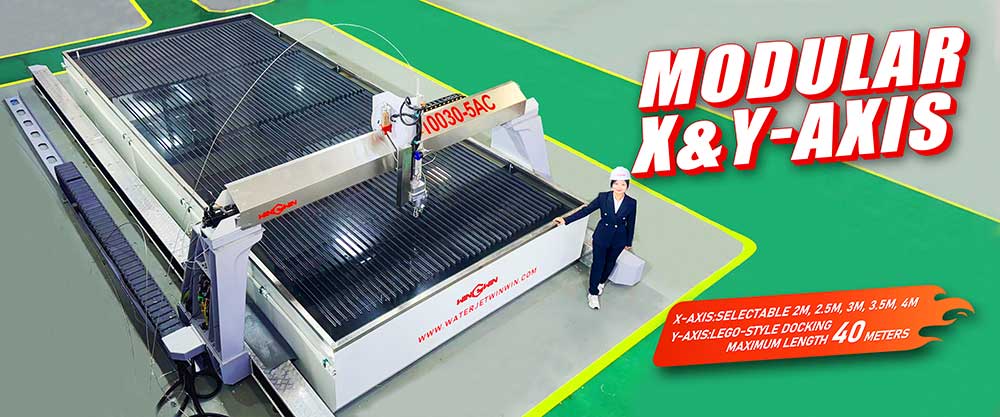

| Cutting Range | X-Axis : 3000mm，Y-Axis : 10000mm Z-Axis : 250mm |
| Swing Angle | C-Axis : 360°A-Axis : ±75° |
| Control Accurcy | ±0.01mm |
| RE-Positioning Accuracy | ±0.01mm |
| Cutting Precision | ±0.1mm |
| Max Cutting Speed | 12m/min |
| Motors of Each Axis | Servo Motor |
| Material of the Protective Shield | Stainless Steel |
| Structure | Lead Screw and Slide Block Fully Oil-Immersed |

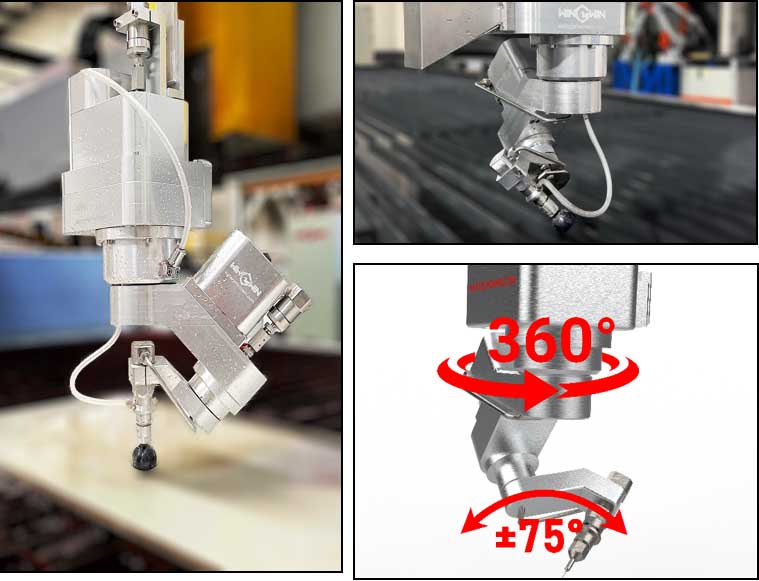

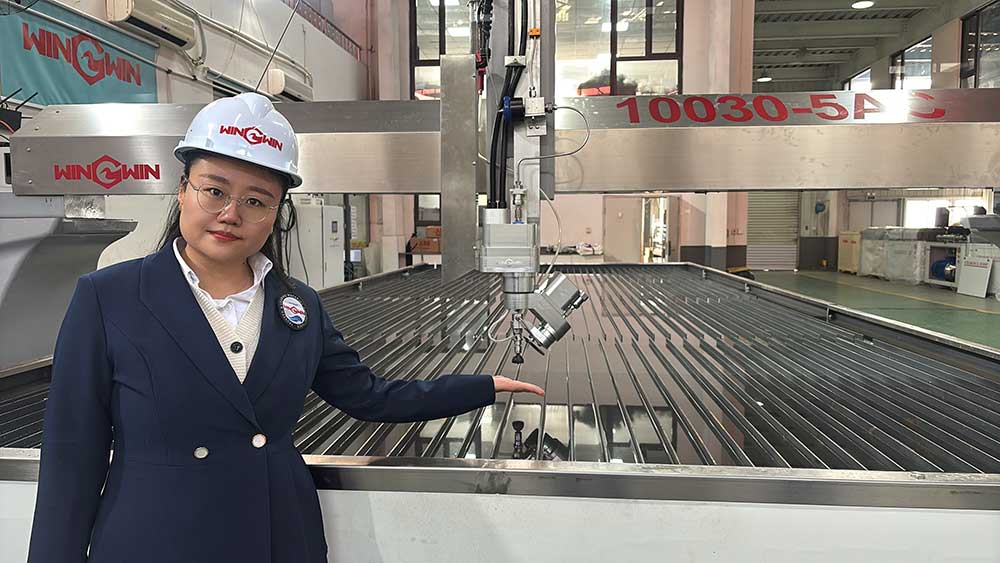

AC 5 Axis Cutting Head | |
| Model | AC-5A |
| Swing Angle | ±75° |
| Swing Angle Accuracy | ±0.01mm |
| Material | High-Strength Aluminum Alloy |
| Reducer Type | Belt/Direct |
| 1. Features a center-of-sphere zero-point design. Its intelligent 5-axis software calculates real-time compensation, ensuring the cutting point remains precisely at the sphere center regardless of the head's tilt angle, which delivers exceptionally high cutting accuracy. |
| 2. Made of lightweight and strong aluminum alloy, which reduces its overall weight and minimizes wear on the ball screws and sliding blocks. |
| 3. Offers a 360°C-axis rotation and a ±75°A-axis tilt. These axes operate in unison for true 5-axis waterjet cutting. Our high-precision control software ensures the cutting stream consistently maintains its tangent point at the nozzle's tool center point, guaranteeing a tilting (positioning) accuracy of ±0.01 mm. |

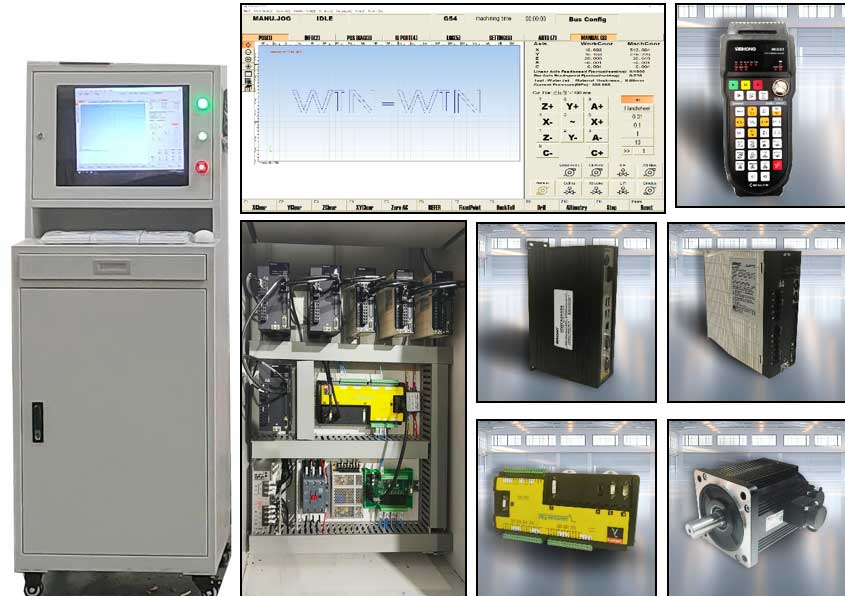

| WEIHONG Waterjet CNC System |
| 1. The Weihong system can recognize the following file formats: DXF, G-code, ENG, and PLT. |
| 2. The Weihong waterjet cutting system is highly operable and easy to operate; mastery can be achieved in just one day. |
| 3. It employs an absolute encoder system to ensure memory of previous data in case of operational errors or power outages. It allows for simulated operation, pausing and resuming at any time, and can resume cutting from any point based on the graphic. |
| 4. It uses soft limit control, allowing the system to set the machine tool's travel range, preventing collisions due to operational errors. |
| 5. It provides dynamic graphics and real-time observation of tool movement status, cutting position, and cutting changes. |
| 6. It features laser height measurement, AC five-axis angle setting, and laser edge finding. |
| 7. The designers thoughtfully included a sealed drawer for storing documents or personal belongings, protecting them in harsh environments. |

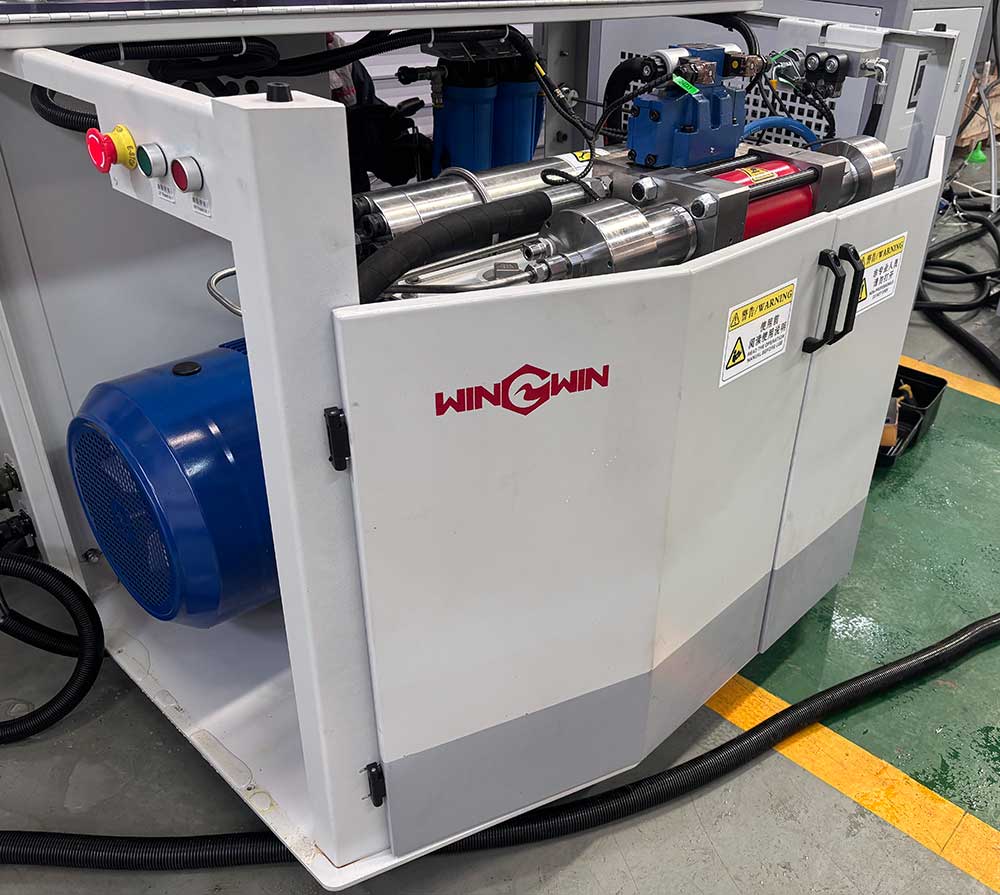

WW50JET PUMP | |
| Technical Parameters | |
| Max Operating Pressure | 420Mpa（60000psi） |
| Operating Pressure | 330Mpa（7200-55000psi） |
| Power | 37KW（50hp） |
| Max Water Flow | 3.8L/min |
| Max Nozzle Diameter | 0.33mm |
| Pressure Ratio | 1:20 |
| Max Reversal Rate | 95 times/min |
| Max Oil Pressure | 31Mpa |
| Max Oil Flow | 119L/min |
| Oil Tank Volume | 130L |
| Weight | 1.2t |
| Dimension | 1600mm*1300mm*1100mm |

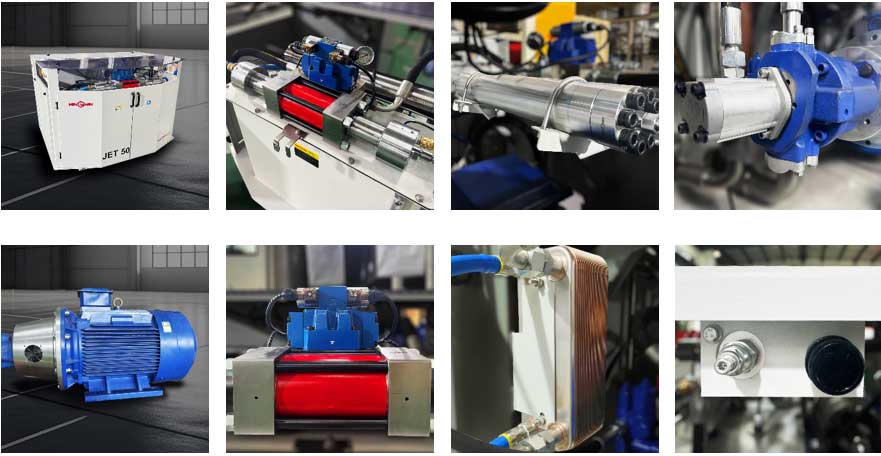

| Seven Core Technologies |
| 1. Standard WW50JET Intensifier Pump |
| Utilizes an internationally common core, with specifications and parts that are interchangeable with international standards, ensuring broad compatibility of the equipment. |
| 2. Independent Cooling Circulation System |
| Activates simultaneously with the motor to maintain oil temperature within the optimal operating range. |
| 3. High-Performance Plate Cooler (Copper) |
| Maximize the contact area between coolant and hot oil, effectively reducing oil temperature for stable equipment operation. |
| 4. Auto Constant Pressure Variable Pump |
| With a flow rate of 119 L/min, it ensures sufficient and stable pressure for fast cutting operations. |
| 5.High/Low Pressure Regulating Valve |
| This mode eliminates pressure fluctuations and guarantees smooth pressure output. |
| 6. 1.4L large-capacity accumulator |
| With one-piece forged construction and a maintenance-free design, making the pressure more stable. |
| 7. High-Performance Hydraulic Directional Valve |
| Provides rapid response and low noise levels, making the equipment operation smoother. |
