Replacing a waterjet pump high-pressure (HP) seal kit can be a complex and technical process, and it is recommended to consult with a qualified technician or the manufacturer's technical support team. However, here are some general steps that may be involved:
Turn off the waterjet system and disconnect the power supply.
Locate the HP seal kit that needs to be replaced. This may require referring to the manufacturer's manual or consulting with a technician.
Remove any hoses or fittings connected to the pump.
Remove the old HP seal kit from the pump, using appropriate tools such as pliers or a seal removal tool.
Clean the seal seat and the area around it with a clean cloth and solvent to remove any debris or contaminants.
Install the new HP seal kit into the pump, ensuring that it is oriented correctly and making sure that any seals or gaskets are in place.
Apply a small amount of lubricant to the seal and the seal seat.
Insert the seal installation tool that came with the kit, and use it to press the seal into the seal seat, applying firm pressure and ensuring that the seal is seated evenly and securely.
Once the seal is installed, remove the tool from the seal seat.
Repeat the process for any additional seals that need to be replaced.
Reconnect any hoses or fittings that were disconnected earlier.
Reconnect the power supply and turn on the waterjet system to test the pump's functionality and for any leaks.
Item | Part Number | Description | Item | Part Number | Description |

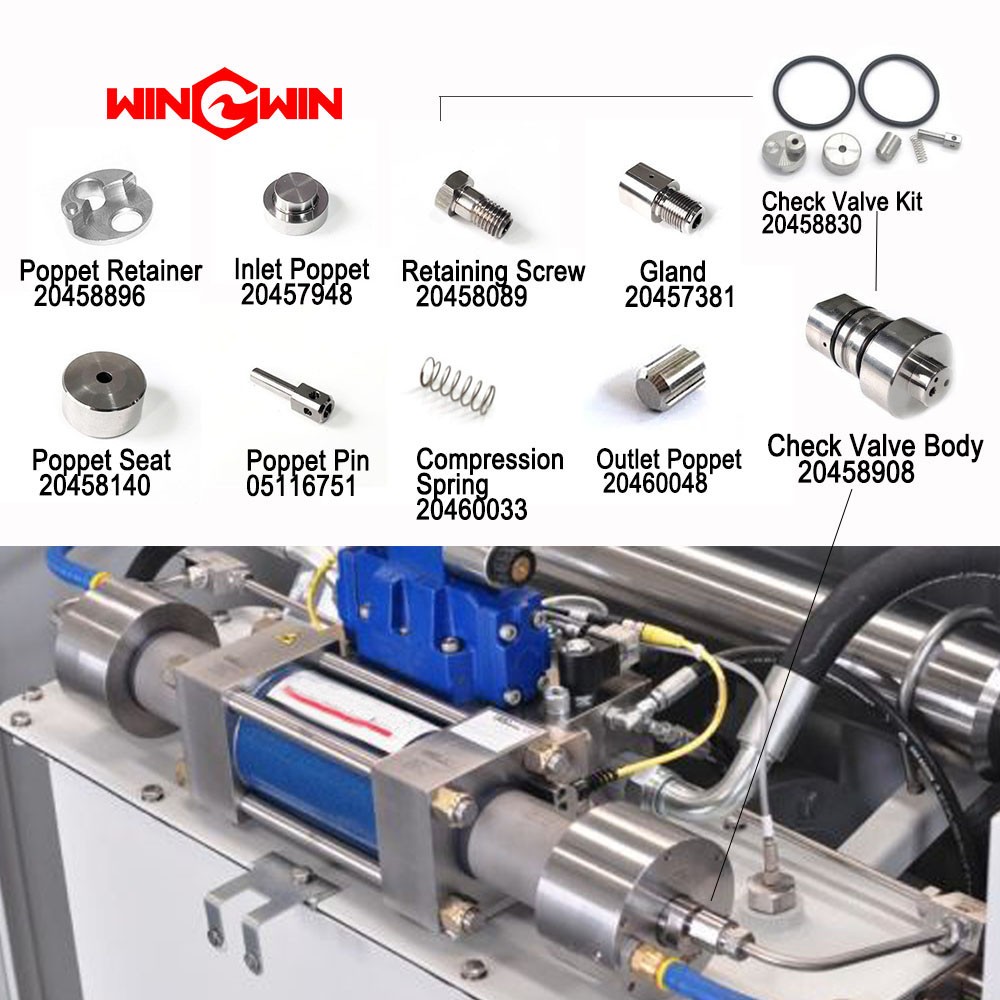

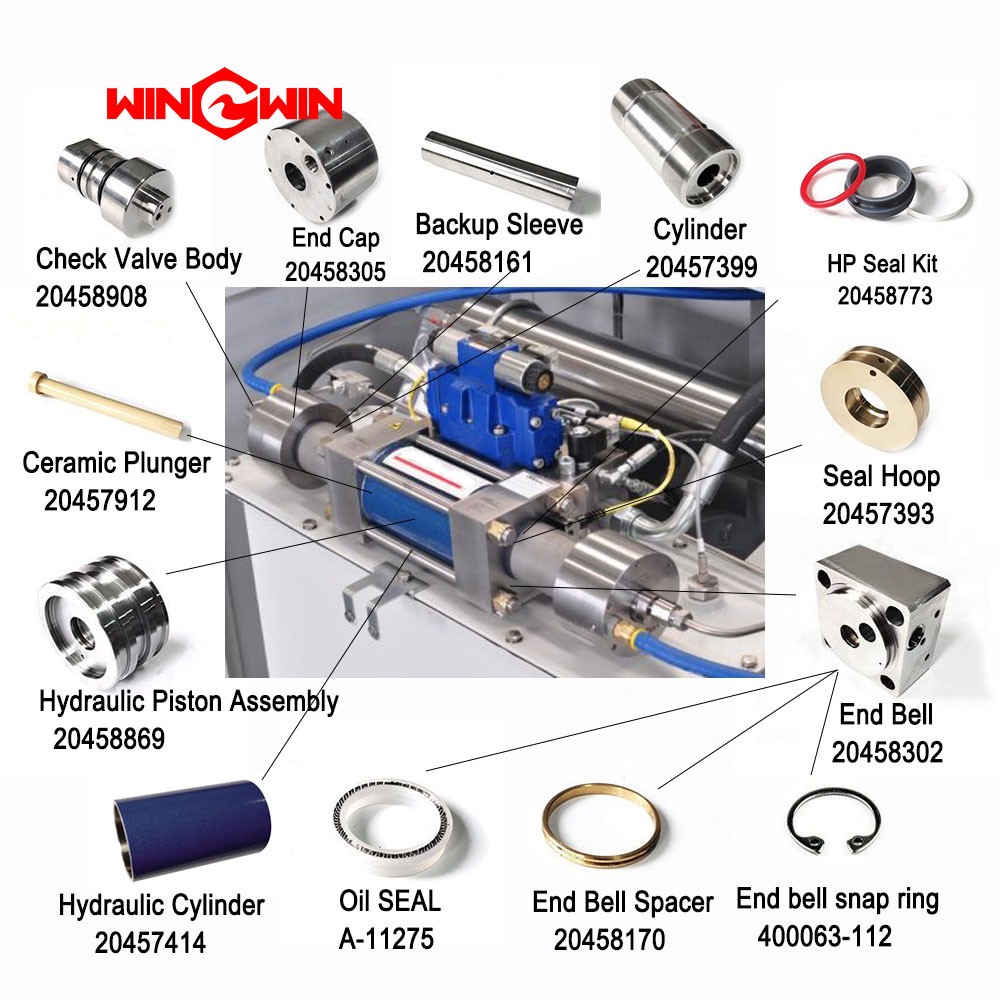

1 | 20458305 | End Cap | 12 | 20458062 | Plunger Retainer |
2 | 20457399 | High Pressure Cylinder | 13 | 20458869 | Hydraulic Piston Assembly |
3 | 20458299 | End Bell, LH | 20457966 | Hydraulic Piston | |
4 | 20458302 | End Bell, RH | 20458821 | Rebuild Kit, Piston Rings | |
5 | 20458191 | Tie Rod | 20460216 | Seal | |
6 | 20460489 | Hex Nut | 14 | 20458170 | Spacer, Hydraulic Seal |
7 | 20457414 | Hydraulic Cylinder | 15 | 20458908 | Sealing Head Assembly |
8 | 20458161 | Backup Sleeve | 16 | 20460252 | Snap Ring |
9 | 20458773 | Rebuild Kit, High Pressure Seal Assembly | 17 | 05202930 | Snap Ring |
20457990 | Seal Buttress | 18 | 20457267 | Inlet Water Nipple | |
20458113 | High Pressure Seal | 20457159 | Adapter, Quick Disconnect | ||
20457393 | Seal Hoop | 20459025 | O-Ring, Quick Disconnect | ||
20460108 | O-Ring | 11 | 20457912 | Plunger | |
10 | 20458797 | Rebuild Kit, Hydraulic Seal Assembly |
