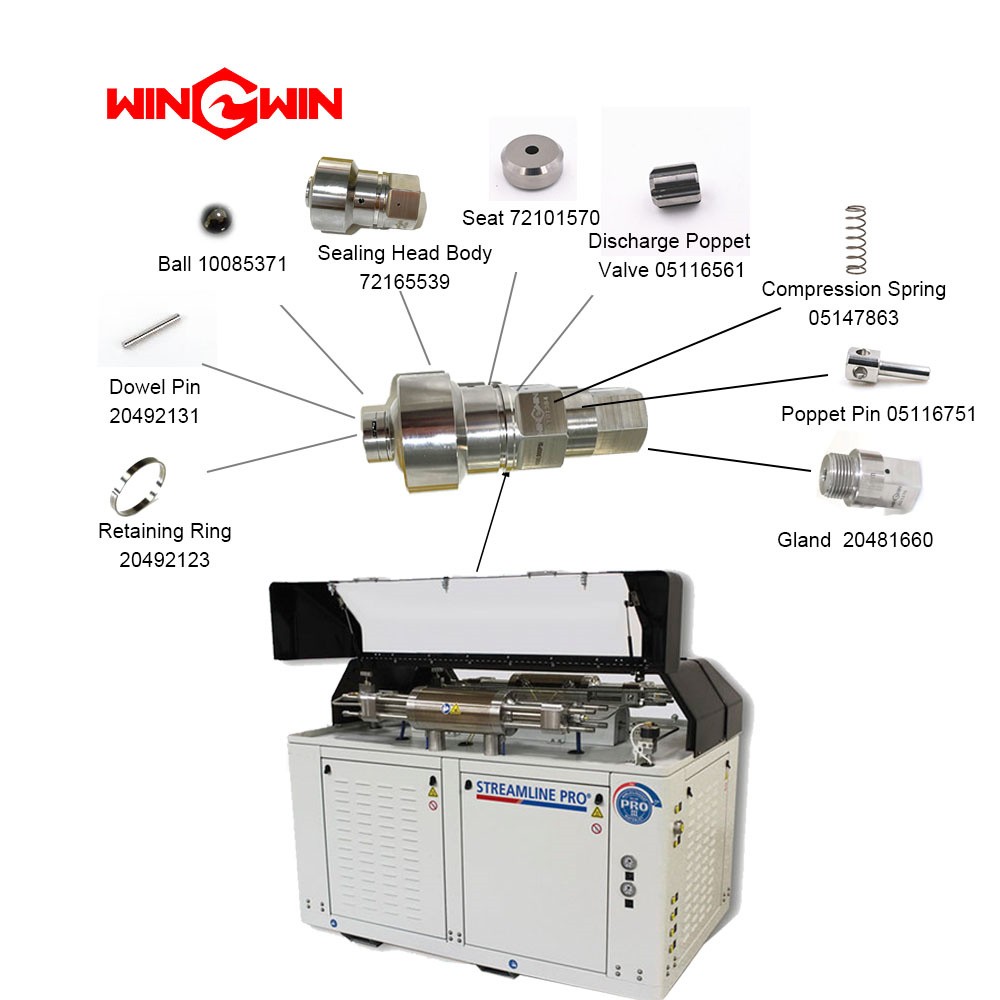

16/9 connector for 90000psi waterjet pump part
Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available
here are some additional points about 90,000 psi waterjets:
Cutting speed: A 90,000 psi waterjet can cut through materials at very high speeds, making it a useful tool for industries that require quick turnaround times. For example, in the automotive industry, waterjets can quickly and precisely cut complex shapes for car parts.
Versatility: Waterjets can cut a wide range of materials, including metals, plastics, composites, and even food products. This versatility makes waterjets a useful tool in many different industries.
Minimal heat-affected zone: Because waterjets use only water and abrasive material, there is minimal heat generated during the cutting process. This means that there is very little heat-affected zone (HAZ) around the cut edge, which can be important for materials that are sensitive to heat.
Reduced waste: Waterjets produce very little waste material compared to other cutting methods. This is because the cutting process is very precise, and there is no thermal distortion or burring around the cut edge.
Safety: While high-pressure waterjets can be dangerous if not used properly, they are generally considered a safe cutting method. Waterjets do not produce heat or fumes, and there is no risk of fire or explosions as there can be with other cutting methods.
Overall, a 90,000 psi waterjet can be a highly effective and versatile tool for cutting and cleaning in a wide range of industries.
Item | Part Number | Description | Item | Part Number | Description |
1 | 5146592 | Gasket, Topworks Support | 14 | 72162253 | Plunger |
2 | 20476377 | Support, Topworks | 15 | 5130091 | Hydraulic Seal Cartridge |
3 | 10118206 | O-Ring, 1.31×1.56× .13 | 16 | 72175989 | Bushing Retainer Flange |
4 | 5144514 | Hydraulic Cylinder | 17 | 72158494 | UHP Seal Assembly |
5 | 5098991 | Socket Head Screw, 3/8-16×3-3/4 | 18 | 72166738 | UHP Cylinder |
6 | 95688743 | Lock Washer, .38 | 19 | 72163802 | Liner |
7 | 72101190 | Piston Assembly | 20 | 20474325 | Stud, 1-1/8-12×18.31 |
8 | 10074771 | O-Ring, 5.25×5.50× .13 | 21 | 72170157 | Sealing Head Assembly |
9 | 5120092 | Backup Ring, 5.25×5.50× .13 | 22 | 72178493 | Flange Assembly |
10 | 72175997 | Hydraulic Cylinder Head | 23 | 20464590 | Flat Washer, 1.13 |
11 | 5097886 | Socket Head Screw, 3/4-16×2-1/4 | 24 | 20461761 | Hex Nut, 1-1/8-12 |
12 | 5144183 | Spacer Assembly, Proximity Switch | 25 | 20489339 | Adapter, JIC/Pipe, 50× .38 |
5144191 | O-Ring, .69× .88× .09 | 26 | 72176756 | O-Ring, 3.88×4.25× .19 | |
13 | 72141569 | Kit, Proximity Switch | 95119012 | Socket Head Screw, 1/4-20×1 | |
72134224 | Proximity Switch |
