Table 12-13 Hydraulic Hose Connections 72159239 | |||
Item | Part Number | Description | Quantity |
1 | 95702619 | Adapter, JIC/ORB, .75 x .75 | 3 |
2 | 05064407 | Adapter, JIC/ORB, 1.0 x .75 | 1 |
3 | 05052493 | Adapter, JIC/ORB, .75 x .63 | 3 |
4 | 20427194 | Adapter, JIC/ORB, 1.0 x 1.0 | 1 |
5 | 05071055 | Plug, ORB, .75 | 2 |
6 | 10142644 | Adapter, JIC/ORB, .25 x .25 | 1 |
7 | 10144749 | Adapter, JIC/ORB, .25 x .25 | 2 |
8 | 80085970 | Adapter, JIC/ORB, 1.0 x 1.0 | 2 |
9 | 05048780 | Split Flange Kit , 2.0 | 1 |
10 | 20427119 | Adapter, Flange/ Hose, 2.0 x 2.0 | 1 |
11 | 72147664 | Hydraulic Hose Assembly, .75 x 32.0 | 2 |
12 | 72156066 | Hydraulic Hose Assembly, 1.0 x 25.50 | 1 |

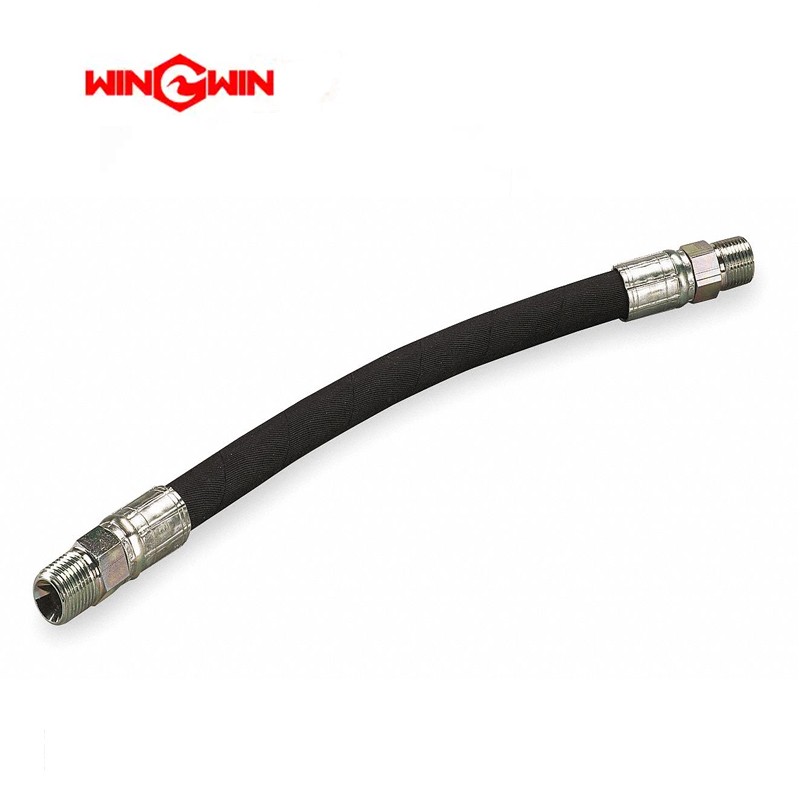

13 | 10128254 | Hydraulic Hose Assembly, 1.0 x 19.0 | 1 |
14 | 49891633 | Hydraulic Hose, Suction/Return, 2.0 | 10.0" |
15 | 72165319 | Hydraulic Hose Assembly, .25 x 16.0 | 1 |
16 | 05071121 | Hydraulic Hose Assembly, .25 x 18.0 | 1 |
17 | 72159280 | Hydraulic Hose Assembly, .25 x 24.0 | 2 |
18 | 49888688 | Hydraulic Hose Assembly, .75 x 24.0 | 1 |
19 | 10091643 | Hose Clamp | 4 |
20 | 20454519 | Tee, JIC/ORB, .25 x .25 | 1 |
21 | 49876089 | Adapter, JIC/ORB, .25 x .25 | 3 |
Waterjet hydraulic hose connections are vital components within a waterjet cutting system, serving as the interface points for transferring high-pressure water between various parts of the system, such as the pump, manifold, cutting head, and accumulator. These connections must be robust, reliable, and capable of withstanding extremely high pressures commonly used in waterjet cutting applications.
Key aspects of waterjet hydraulic hose connections include:
1. High-Pressure Hoses: These hoses are specifically designed to handle the high-pressure water used in waterjet cutting, often reaching pressures well above 60,000 PSI. They are constructed with durable materials like reinforced synthetic rubber or thermoplastic compounds capable of withstanding extreme pressure without rupturing or leaking.
2. Fittings and Connectors: The connections between hoses and various components of the waterjet system utilize specialized fittings and connectors designed to securely seal and maintain the integrity of the high-pressure flow. These fittings often include threaded, quick-connect, or flange connections based on the system's design and requirements.
3. Sealing Elements: To prevent leaks, hydraulic hose connections incorporate sealing elements such as O-rings, gaskets, or seals at the junction points. These elements ensure a tight seal between the hoses and the connected components, preventing fluid leakage at high pressures.
4. Compatibility and Sizing: Proper sizing and compatibility between hoses, fittings, and connectors are crucial to ensure efficient fluid flow and prevent pressure drops or leaks within the system.
5. Safety Features: Some hose connections may feature additional safety mechanisms like locking mechanisms or safety cables to secure the connections and prevent accidental disconnection during operation.
Waterjet hydraulic hose connections are engineered to meet the stringent requirements of high-pressure waterjet cutting systems, ensuring reliable performance, minimal downtime due to leaks, and safe operation of the equipment. Regular inspection, maintenance, and proper installation of these connections are essential to maintain their integrity and prevent potential hazards associated with high-pressure water systems.
