10092302 Hydraulic Power Package Shaft Coupling

Product Item：

72153513	Electric Motor, 50 HP
10092302	Shaft Coupling
05049168	Adapter, Water Pump
10116952	Caplug, 1.04
49887094	Water Pump, Vane
95838314	Lock Washer, .25
95572897	Hex Head Screw, 1/4-20 x 5/8
10069714	Flat Washer, .38
95750394	Lock Washer, .38
95416319	Hex Head Screw, 3/8-16 x 1
49883580	Flat Washer, M10
10064715	Lock Washer, M10
72143352	Coupling, Flexible Drive
72137545	Flange, Motor/Pump Adapter
72157461	Manifold Assembly
05045364	Gear Pump
10091163	Adapter, JIC/ORB, .75 x

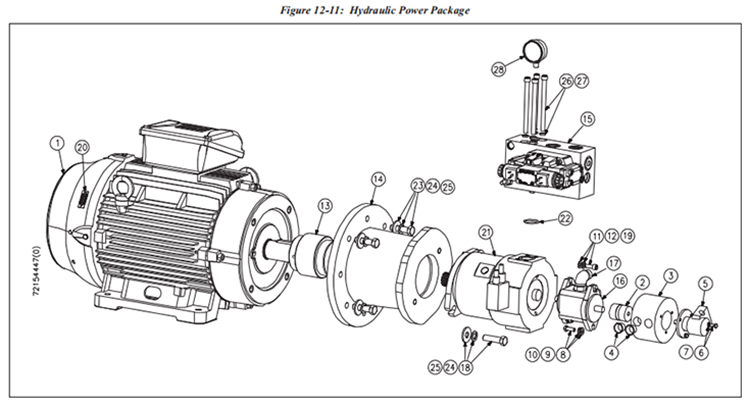

Table 12-11 Hydraulic Power Package 72154447
Item	Part Number	Part Number	Quantity
1	72153513	Electric Motor, 50 HP	1
2	10092302	Shaft Coupling	1
3	05049168	Adapter, Water Pump	1
4	10116952	Caplug, 1.04	2
5	49887094	Water Pump, Vane	1
6	95838314	Lock Washer, .25	3
7	95572897	Hex Head Screw, 1/4-20 x 5/8	3
8	10069714	Flat Washer, .38	2
9	95750394	Lock Washer, .38	2
10	95416319	Hex Head Screw, 3/8-16 x 1	2
11	49883580	Flat Washer, M10	2
12	10064715	Lock Washer, M10	2
13	72143352	Coupling, Flexible Drive	1
14	72137545	Flange, Motor/Pump Adapter	1
15	72157461	Manifold Assembly	1
16	05045364	Gear Pump	1
17	10091163	Adapter, JIC/ORB, .75 x .75	1
18	95897294	Hex Head Screw, 5/8-11 x 1-1/2	2
19	49883564	Socket Head Screw, M10 x 1.50 x 30MM	2
20	10091510	Arrow Decal	1
21	72158486	Piston Pump	1
22	10074953	O-Ring, 1.50 x 1.75 x .13	1
23	95423679	Hex Head Screw, 5/8-11 x 1-3/4	4
24	05054168	Flat Washer, .63	6
25	95688719	Lock Washer, .63	6
26	72162170	Socket Head Screw, 3/8-16 x 5-1/2	4
27	95688743	Lock Washer, .38	4
28	05045497	Pressure Gauge, 0-5,000 psi	1
	05045497	O-Ring, .35 x .50 x .07

A waterjet hydraulic power package is a specialized hydraulic power unit designed specifically to provide the necessary high-pressure hydraulic power to drive a waterjet cutting system. It serves as the power source for the waterjet pump, which generates the high-pressure water stream used for cutting materials in waterjet machines.

Key components of a waterjet hydraulic power package include:

1. High-Pressure Pump: This is the core component that generates the extremely high-pressure water needed for the waterjet cutting process. It typically operates by intensifying low-pressure water to the ultra-high pressure required for effective cutting, often reaching pressures above 60,000 pounds per square inch (PSI).

2. Hydraulic System: The hydraulic power package includes a hydraulic system that provides the necessary pressure and flow of hydraulic fluid to drive the high-pressure pump.

3. Electric Motor or Engine: The power package may be driven by an electric motor or an internal combustion engine, providing the mechanical energy required to power the hydraulic pump.

4. Reservoir and Cooling Systems: These components store hydraulic fluid and help manage its temperature, ensuring optimal performance and preventing overheating.

5. Control Panel and Instrumentation: The power package may include a control panel with various instruments and controls to monitor and regulate the hydraulic system's operation.

6. Filters and Filtration Systems: To maintain the quality of the hydraulic fluid and prevent contaminants from entering the system, filters and filtration systems are often integrated into the power package.

Waterjet hydraulic power packages are engineered specifically for the demands of high-pressure waterjet cutting systems. They provide the necessary hydraulic power to drive the high-pressure pump, ensuring consistent and reliable operation of the waterjet cutting equipment. These power packages come in various sizes and configurations to meet the requirements of different waterjet cutting machines used in industries such as manufacturing, aerospace, automotive, and more.
