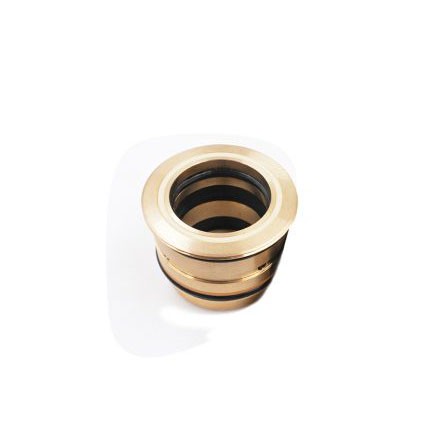

05146584 Hydraulic Cartridge Seal Assembly
Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available
A hydraulic cartridge seal assembly is a type of sealing mechanism used in waterjet pumps to prevent leaks and ensure the proper functioning of hydraulic systems. Specifically, this type of assembly is designed to seal the interface between the hydraulic piston and cylinder, which is critical for maintaining the high pressure required for waterjet cutting.
In a waterjet pump, the hydraulic cartridge seal assembly is typically located near the hydraulic ram piston, which is responsible for pressurizing the water. The assembly consists of a cartridge or housing that contains a seal or set of seals that prevent hydraulic fluid from leaking out of the system. The seals are typically made from high-strength materials such as rubber, silicone, or PTFE (polytetrafluoroethylene) and are designed to withstand high pressure and temperature.
The hydraulic cartridge seal assembly is critical for maintaining the proper functioning of a waterjet pump, as leaks or loss of pressure can result in decreased cutting performance or damage to the system. Additionally, the assembly must be maintained and replaced periodically to ensure its continued effectiveness and prevent downtime or costly repairs.

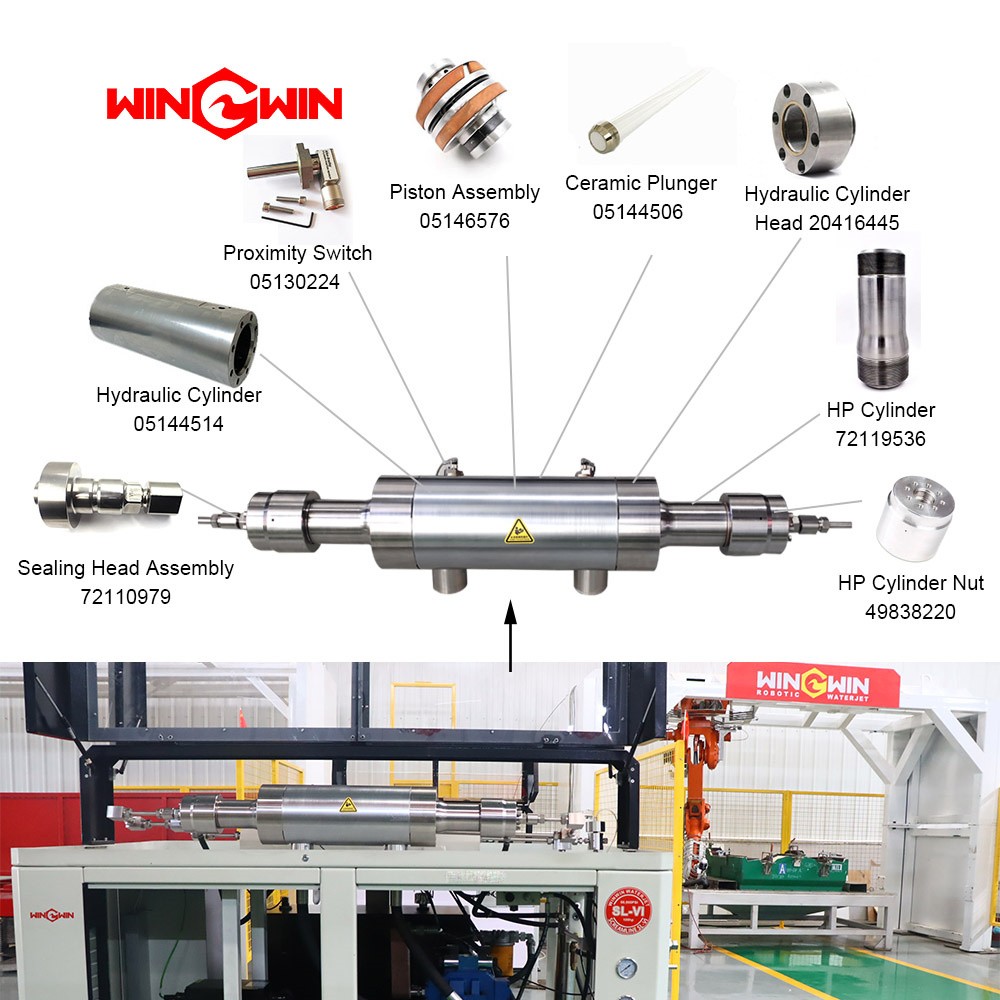

| Item | Part Number | Description | Item | Part Number | Description |
| 1 | 72119536 | HP Cylinder | 16 | 05120092 | Backup Ring, 5.25 x 5.50 |
| 2 | 05144506 | Ceramic Plunger | 17 | 10074771 | O-Ring, 5.25 x 5.50 x .13 |
| 3 | 72110979 | Sealing Head Assembly | 18 | 20413955 | Socket Head Screw, 3/4-16 x 3-1/4 |
| 4 | 20416445 | Hydraulic Cylinder Head | 19 | 05130224 | Proximity Switch, 20-250V AC/DC |
| 5 | 05149711 | HP Seal Assembly | 20 | 95119012 | Socket Head Screw, 1/4 x 20 x 1 |
| 7 | 49838220 | HP Cylinder Nut, HSEC | 21 | 05146576 | Piston Assembly |
| 8 | 05146584 | Hydraulic Cartridge Seal Assembly | 23 | 05144522 | Topworks Support |
| 9 | 05145099 | Bushing Retainer Flange | 25 | 05041058 | Socket Head Screw, 3/8-16 x 2-1/4 |
| 11 | 72110945 | Liner, HP Cylinder | 26 | 95688743 | Lock Washer, .38 |
| 12 | 10074920 | O-Ring, 1.75 x .94 x .09 | 27 | 10118206 | O-Ring, 1.31 x 1.56 x .13 |
| 13 | 80070352 | Jackbolt, 7/16-20 x 2.31 | 28 | 05144183 | Spacer Assembly, Proximity Switch |
| 14 | 05034798 | Retaining Ring | 05144191 | O-Ring, .69 x .88 x .09 | |
| 15 | 05144514 | Hydraulic Cylinder | 29 | 05146592 | Gasket, Topworks Support |
