Product Item:05120118 seal assembly
Name:100HP waterjet pump spare part
Manufacturer: Win Win waterjet
  • Product Detail

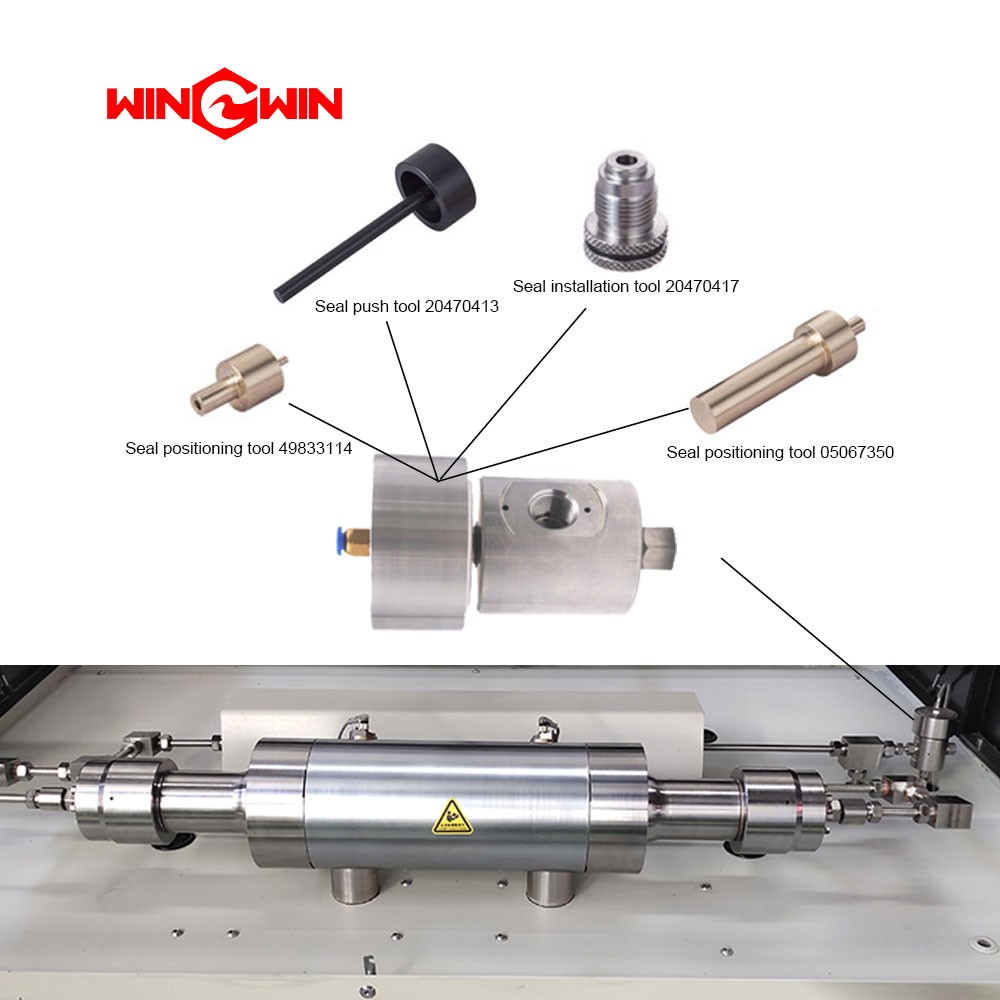

05120118 seal assembly

Win Win waterjet provide many kinds of waterjet parts, OEM/ODM available

The 05120118 Seal Assembly is an important component of the waterjet pump, which helps to prevent leaks and maintain the pressure of the water flow. It consists of several parts, including a seal, a wear ring, and a retaining ring.

The function of the Seal Assembly is to create a seal between the high-pressure water and the low-pressure water within the pump. It is located at the front of the pump, where the high-pressure water enters the pump's cylinder.

The seal prevents the high-pressure water from leaking out of the pump and also prevents low-pressure water from entering the high-pressure side of the pump. The wear ring is designed to protect the seal from damage caused by the abrasive water, which can cause wear over time.

The retaining ring holds the seal and wear ring in place within the pump. If the Seal Assembly is damaged or worn, it can cause leaks and reduce the pump's efficiency. Therefore, it's important to replace the Seal Assembly as soon as it shows signs of wear or damage to ensure that the waterjet pump operates safely and efficiently.


100hp waterjet.png

ItemPart
Number
Description ItemPart
Number
Description
172119536HP Cylinder 1605120092Backup Ring, 5.25 x 5.50
205144506Ceramic Plunger1710074771O-Ring, 5.25 x 5.50 x .13
372110979Sealing Head Assembly 1820413955Socket Head Screw, 3/4-16 x 3-1/4
420416445Hydraulic Cylinder Head1905130224Proximity Switch, 20-250V AC/DC
505149711HP Seal Assembly2095119012Socket Head Screw, 1/4 x 20 x 1
749838220HP Cylinder Nut, HSEC2105146576Piston Assembly
805146584Hydraulic Cartridge Seal Assembly2305144522Topworks Support
905145099Bushing Retainer Flange 2505041058Socket Head Screw, 3/8-16 x 2-1/4
1172110945Liner, HP Cylinder 2695688743Lock Washer, .38
1210074920O-Ring, 1.75 x .94 x .092710118206O-Ring, 1.31 x 1.56 x .13
1380070352Jackbolt, 7/16-20 x 2.31 2805144183Spacer Assembly, Proximity Switch
1405034798Retaining Ring
05144191O-Ring, .69 x .88 x .09
1505144514Hydraulic Cylinder2905146592Gasket, Topworks Support
